QSC MP-M User Manual

34
TD-001578-01-C

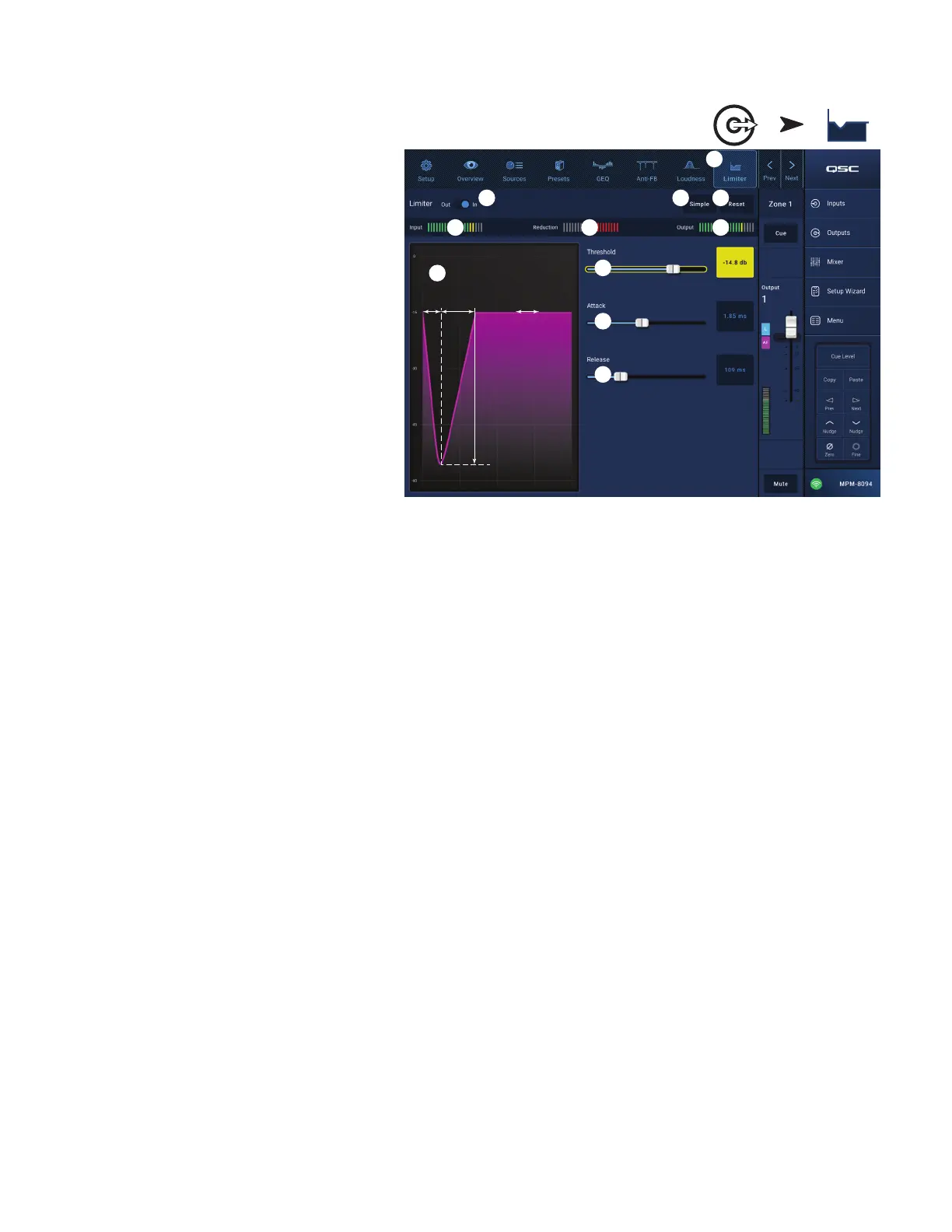

Output Zone − Limiter
The Limiter prevents the audio level from exceeding a
preset threshold.
1. Limiter – Opens the Limiter screen.
2. Limiter Out/In switch – Engages or disengages the
compressor or limiter.
3. Simple button – Hides all controls except:
• Limiting Slider
• Limiter In button
• Simple button
• Reset button
4. Reset button – Sets all the Limiter controls to their
factory default position.
5. In meter – Displays the RMS input signal level
6. Reduction meter – indicates how much the signal
level is reduced by the Limiter.
7. Output meter – Output signal level
8. Limiter graph – When engaged, the Limiter trace is
fuchsia.
•
Threshold (A) – The level at which limitingbegins.
• Attack time (B to C) – The time it takes for the
limiter to reach maximum limiting after the input
exceeds the threshold level.
• Ratio (A to E) – The amount of limiting applied to the signal.
• Release time (C to D) – The time it takes for the limited signal to rise to the threshold level once the input level no longer exceeds
thethreshold.
• Vertical scale = dB
9. Threshold slider – Sets the point at which the limiter begins to reduce the signal level.
10. Attack slider – Adjusts how quickly the processor reacts to a signal that exceeds thethreshold.
11. Release slider – Adjusts how quickly the processor stops compressing or limiting when signal falls below the Threshold.
Touch
Outputs
Touch
Limiter
B C D A
E
3 4
1
10
9
6
8
11
5
2
7
