1. Configure the global or port mapping relation between the inner tag and the outer tag
2. Configure selective QinQ of port
1. Configure the global or port mapping relation between the inner tag and the outer tag
2. Configure selective QinQ of port

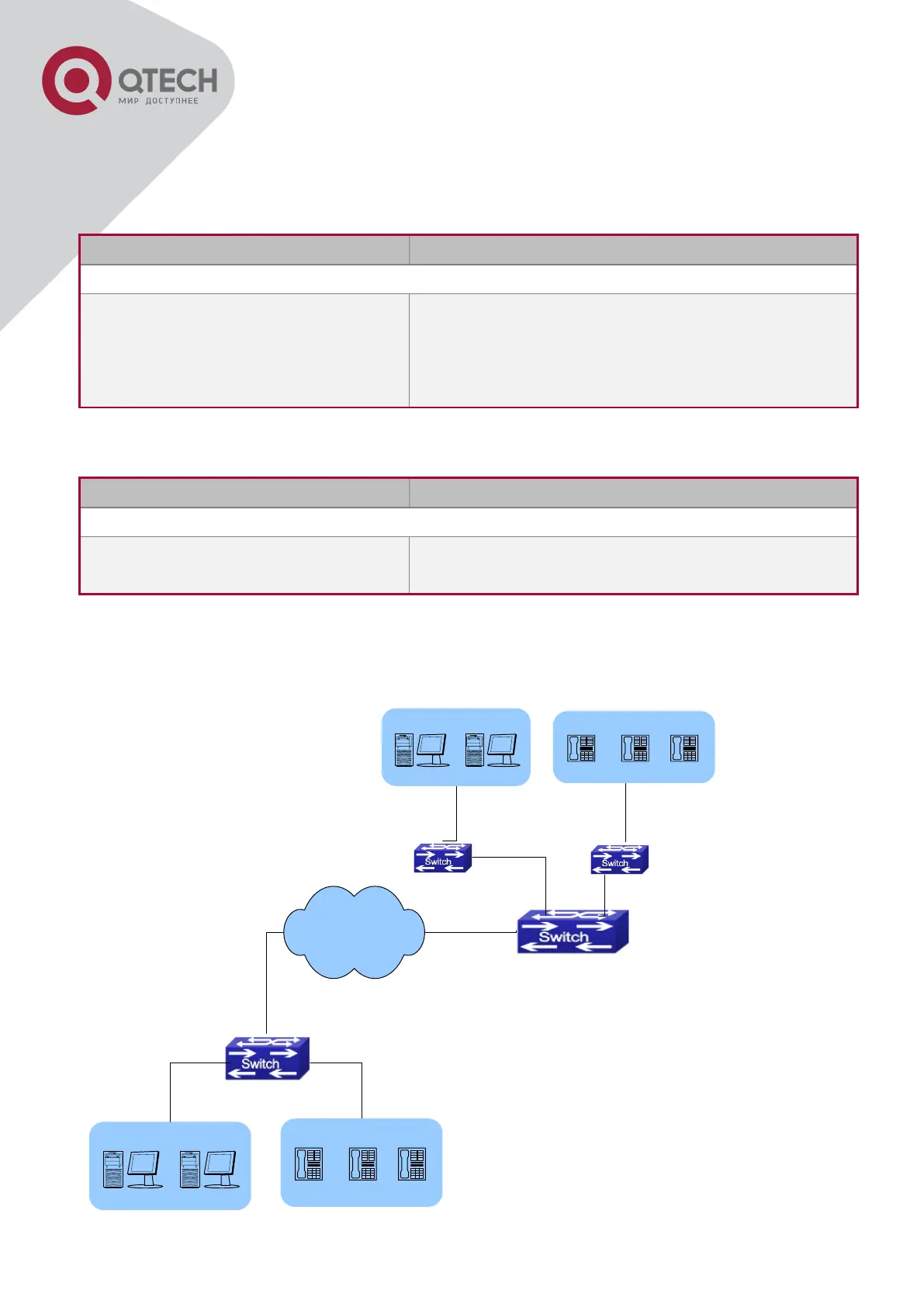

16.3.3 Typical Applications of Selective QinQ
SWITCHB
SWITCHA
PCPC
VLAN 100-200
Eth 1/1 Eth 1/2
Eth1/9
Eth1/9
Eth1/2Eth1/1
IP Phone IP Phone IP Phone
Vlan 201-300
PCPC
VLAN 100-200
IP Phone IP Phone IP Phone
Vlan 201-300
SP Network
VLAN1000/2000
Command
Explanation
Global/ Port mode
dot1q-tunnel selective s-vlan <s-
vid> c-vlan <c-vid-list>
no dot1q-tunnel selective s-vlan
<s-vid> c-vlan <c-vid-list>
Configure/delete the global or port mapping relation
of the inner tag and the outer tag for selective QinQ.
Command
Explanation
Port mode
dot1q-tunnel selective enable
no dot1q-tunnel selective enable
Enable/disable selective QinQ of the port.
