52.3 ULPP Typical Examples
52.3.1 ULPP Typical Example1

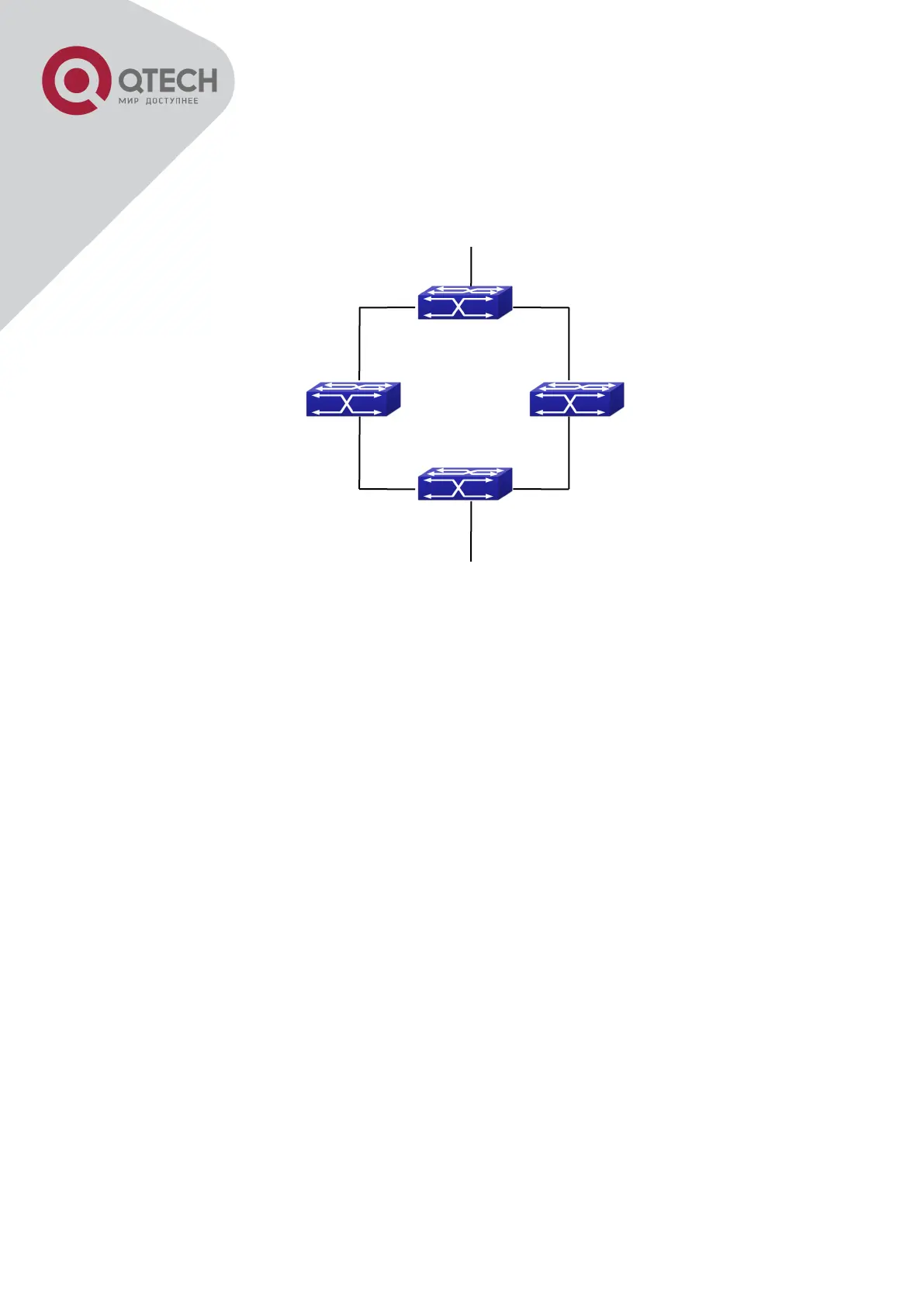

ULPP typical example1
The above topology is the typical application environment of ULPP protocol.
SwitchA has two uplinks, they are SwitchB and SwitchC. When any protocols are not enabled,
this topology forms a ring. For avoiding the loopback, SwitchA can configure ULPP protocol,
the master port and the slave port of ULPP group. When both master port and slave port are
up, the slave port will be set as standby state and will not forward the data packets. When the
master port is down, the slave port will be set as forwarding state and switch to the uplink.
SwitchB and SwitchC can enable the command that receives the flush packets, it is used to
associate with ULPP protocol running of SwitchA to switch the uplink immediately and reduce
the switch delay.
When configuring ULPP protocol of SwitchA, first, create a ULPP group and configure the
protection VLAN of this group as vlan10, then configure interface Ethernet 1/1 as the master
port, interface Ethernet 1/2 as the slave port, the control VLAN as 10. SwitchB and SwitchC
configure the flush packets that receive ULPP.
SwitchA configuration task list:
Switch(Config)#vlan 10
Switch(Config-vlan10)#switchport interface ethernet 1/1; 1/2
Switch(Config-vlan10)#exit
Switch(Config)#spanning-tree mst configuration
Switch(Config-Mstp-Region)#instance 1 vlan 10
Switch(Config-Mstp-Region)#exit
Switch(Config)#ulpp group 1
