QTech QSW-2800 series User Manual

+7(495) 797-3311 www.qtech.ru
Москва, Новозаводская ул., 18, стр. 1
71
6. Set the port priority of the current port in LACP protocol
7. Set the timeout mode of the current port in LACP protocol
9.4 Port Channel Examples
Scenario 1: Configuring Port Channel in LACP.
Configure Port Channel in LACP

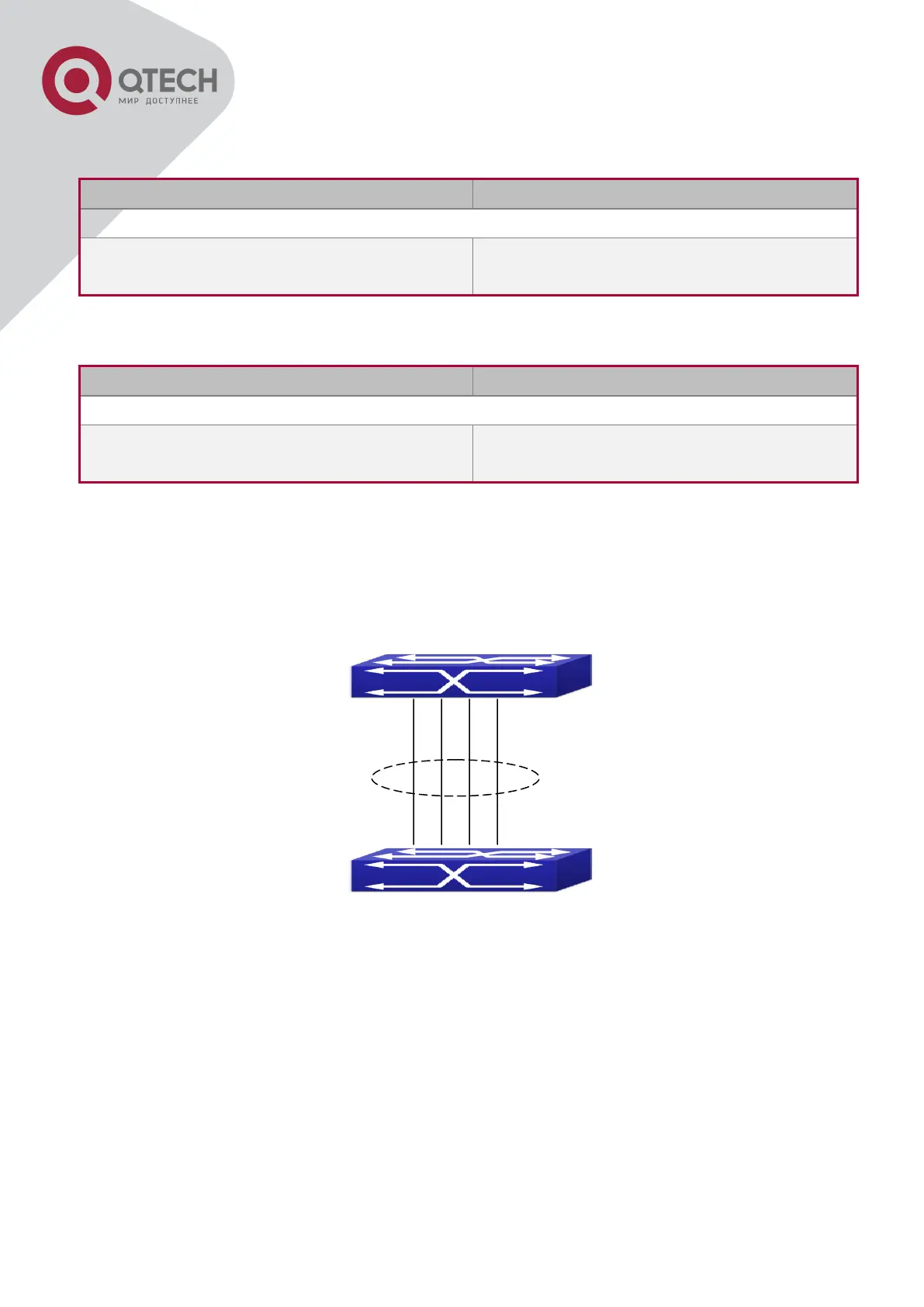

The switches in the description below are all switch and as shown in the figure, ports 1, 2, 3, 4
of S1 are access ports and add them to group1 with active mode. Ports 6, 8, 9, 10 of S2 are
access ports and add them to group2 with passive mode. All the ports should be connected
with cables.
The configuration steps are listed below:
Switch1#config
Switch1(config)#interface ethernet 1/1-4
Switch1(Config-If-Port-Range)#port-group 1 mode active
Switch1(Config-If-Port-Range)#exit
Command
Explanation
Port mode
lacp port-priority <port-priority>
no lacp port-priority
Set the port priority in LACP protocol. The
no command restores the default value.
Command
Explanation
Port mode
lacp timeout {short | long}
no lacp timeout
Set the timeout mode in LACP protocol. The
no command restores the default value.
S1
S2
