Q150T Sample Preparation System
10473 - Issue 5 14 Q150T - Instruction Manual
2.3.2 Electrical Connections
1. Connect the instrument to a suitable earthed single-phase ac supply using the
supplied cable. The lead should be fitted with the appropriate plug for your
country. Ensure the plug is firmly located.
WARNING – EARTH CONNECTION
This Equipment must be Earthed and fitted with the correct lead for the
country of operation. This Equipment is normally supplied from 3 pin
supply including Earth.
For fuse information, refer to Table 32.
2. Connect the rotary pump power lead to the Pump Output connector on the rear
panel (see Figure 2-3). If the rotary pump has its own switch, ensure that this is
set to the ‘On’ position.
WARNING – PUMP OUTPUT
Check that the Power Output is suitable for the rotary pump. The Pump
Output is intended for connection to the pump supply only and provides
the electrical supply voltage at a maximum of 4 Amps.
PIN UK AND EUROPE U.S.A. AND CANADA
Pin 1 ( Live or Hot) Brown Black
Pin 2 ( Earth ) Green / Yellow Green
Pin 3 ( Neutral) Blue White

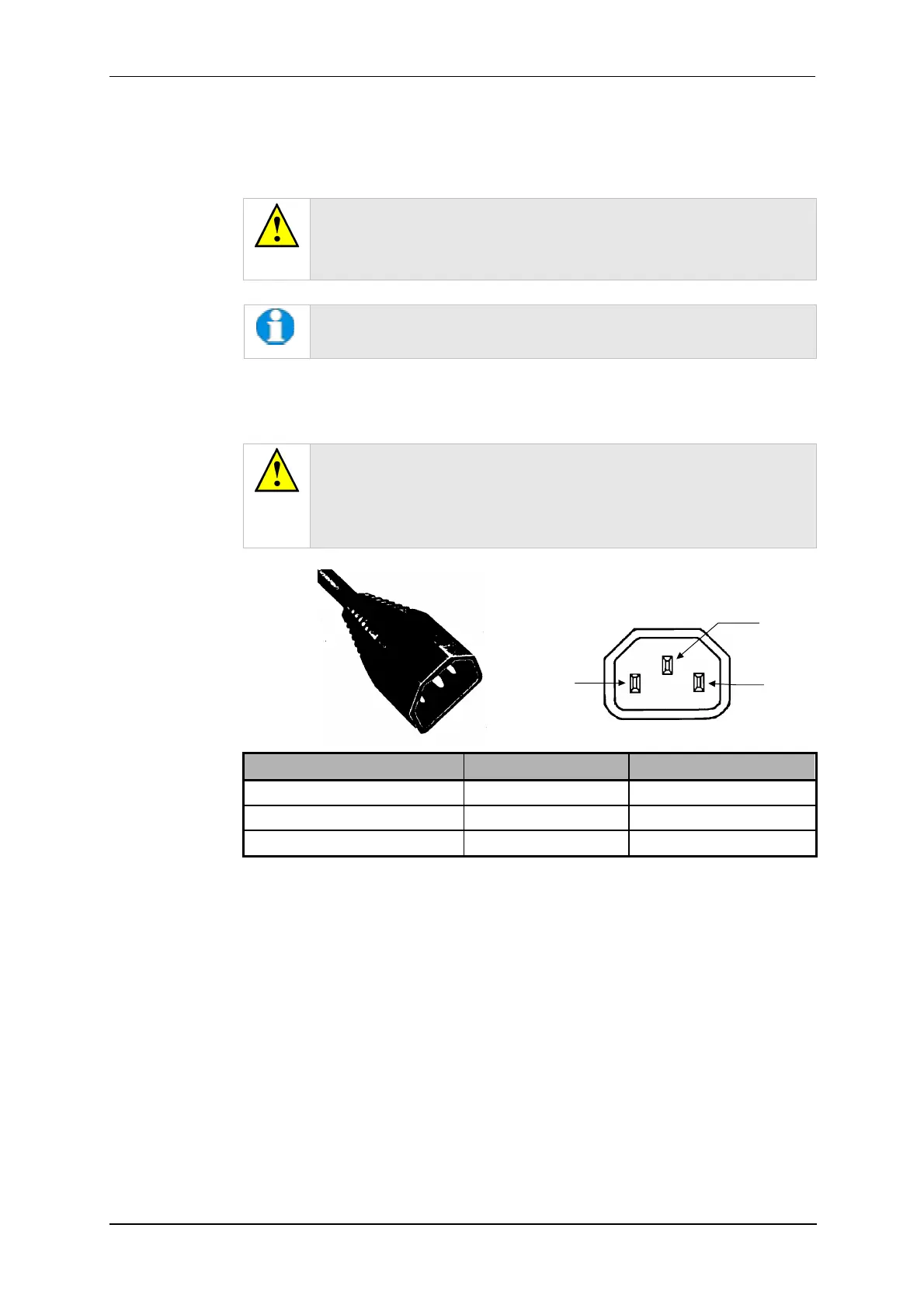

Figure 2-3. Power outlet lead wiring
2.3.3 Aux Network Connection
To link the Q150T to your network, use a standard CAT5/5e cable with RJ45 network
connectors to connect the AUX Network port directly to your computer’s network port or a
network hub/switch.
Pin 3
Neutral
Pin 1
Live
Pin2
Earth
