016-4010-001 R
ev
. J
35
STEERING SETUP
FIGURE 8.
St

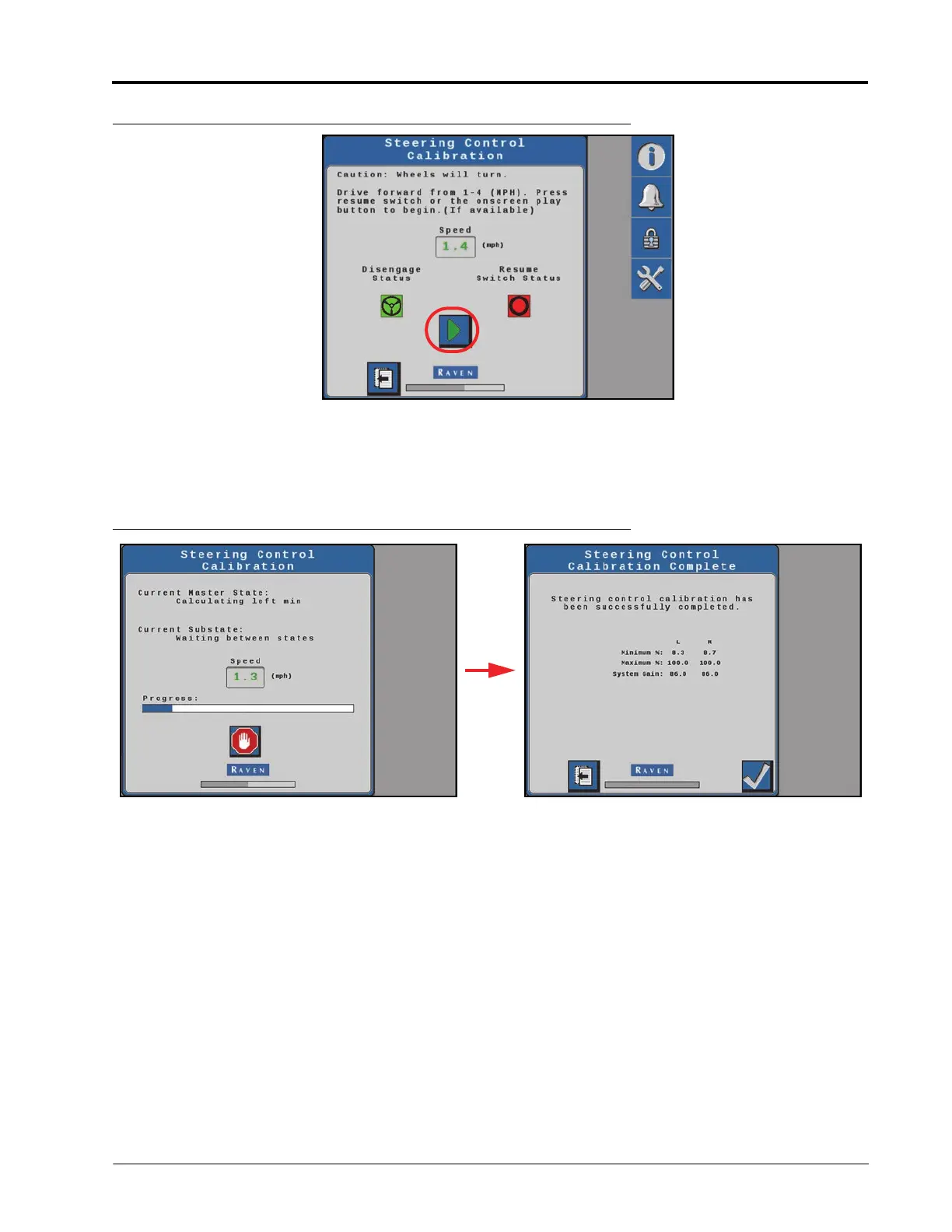

eering Control Calibration Page
2.
Drive for
ward at 1.6 - 6.4 km/h [1 - 4 mph]
.
3.
Press the resume switch or use the on-screen arrow to begin calibra
tion. The following pages will be displayed
during the pr
ocess:
FIGURE 9.
Calibratio
n in Process P
ages
4.
Press
Accept
to complete the ca
libratio
n.
40
42
