78
Raven RS1™ and RS Lite™ Calibration and Operation Manual

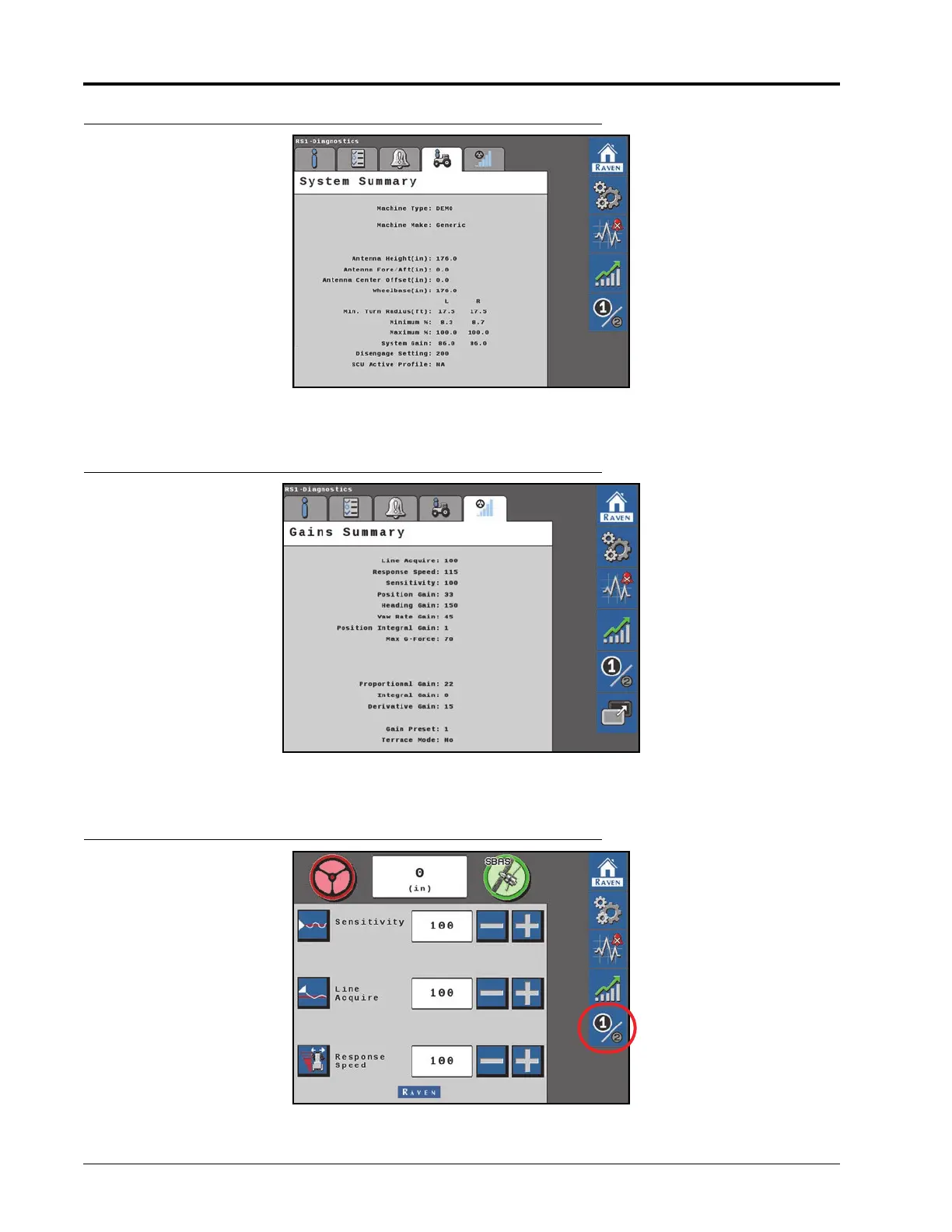

FIGURE 21.
System Summar
y P
age
The System Summar
y page displa
ys the machine se
ttings and calibr
ated steering settin
gs for the RS1 system
.
FIGURE 22.
Gains Summary Page
The Gains Summary page displays
all o
f the adv
anced st
eering settin
gs used t
o steer th
e machine.
FIGURE 23.
Preset S
teering Gains
83
85
