10
LR
LR
RL
L
B
R
SURROUND
SPEAKERS
FRONT
SPEAKERS
AC OUTLET
PCM / 2 / DTS
DIGITAL IN
TO
MONTOR
TV
VCR /
DVR
CONTROL
IN
AUX
CD
IN
IN IN OUT
OUT
CD - R
/ TAPE
/ MD
SURROUND
CENTER
SUB
WOOFER
SUB
WOOFER
PREOUT
IN
IN
IN
IN
IN
TV /
SAT
DVD
/ LD
CENTER
PREOUT
COAX OPT1 OPT2
O
U
T
R
E
C
P
L
A
Y
OUT
FM
UNBAL
75Ω
AM LOOP
ANTENNA
FM
ANTENNA
DVD 5.1 CH
INPUT
LR
CENTER
SPEAKER
FRONT
SPEAKERS
DIGITAL OUT
DIGITAL
OUT
COAX
DIGITAL
OUT
Digital audio cords/Optical cables
Commercially available digital audio coaxial cords (standard video cords can also be used) or
optical cables (not supplied) are used to connect digital components to this receiver.
When you use optical digital input or output terminals, pull off the caps and insert the plugs. Be
sure to insert completely.
DVD player
CD player CD recorder
Digital audio cord
(or standard video cord)
Optical cable

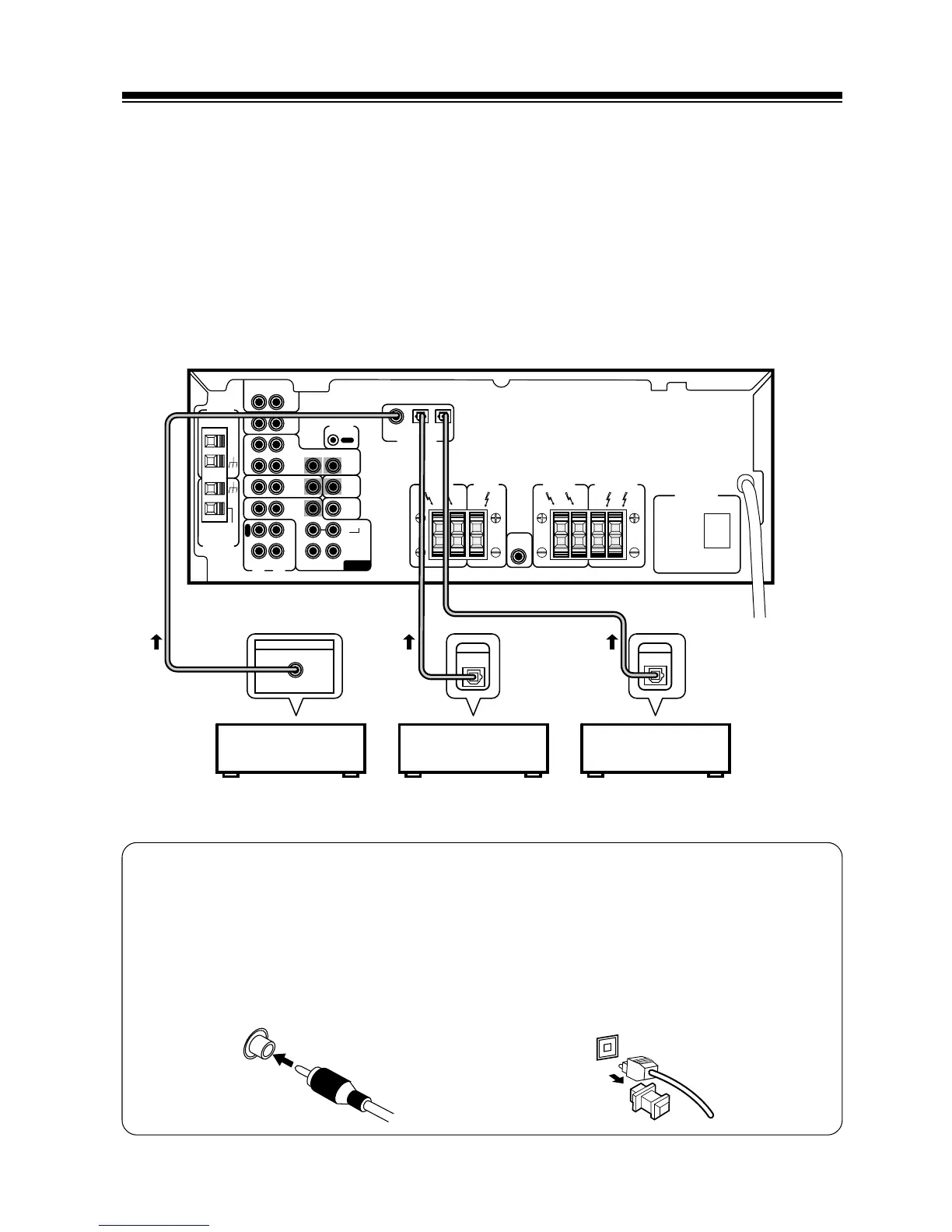

CONNECTING DIGITAL CONNECTIONS
In order to use Dolby Digital/DTS soundtracks, you need to make digital audio connections. You can do
this by either coaxial or optical connections (you do not need to do both). The quality of these two types
of connections is the same but since some digital components only have one type of digital terminal, it is
a matter of matching like with like (for example, the coaxial out from the component to coaxial in on the
receiver). The STAV-3880 has coaxial and two optical inputs for a total of three digital inputs. Connect
your digital components as shown below. If you connect this to the optical input on a digital recorder
(currently these include MD, DAT and CD-R) you can make direct digital recordings with this unit.
When connecting your equipment, always make sure the power is turned off and the power cord is
disconnected from the wall outlet.
