DISPLAYS AND CONTROLS

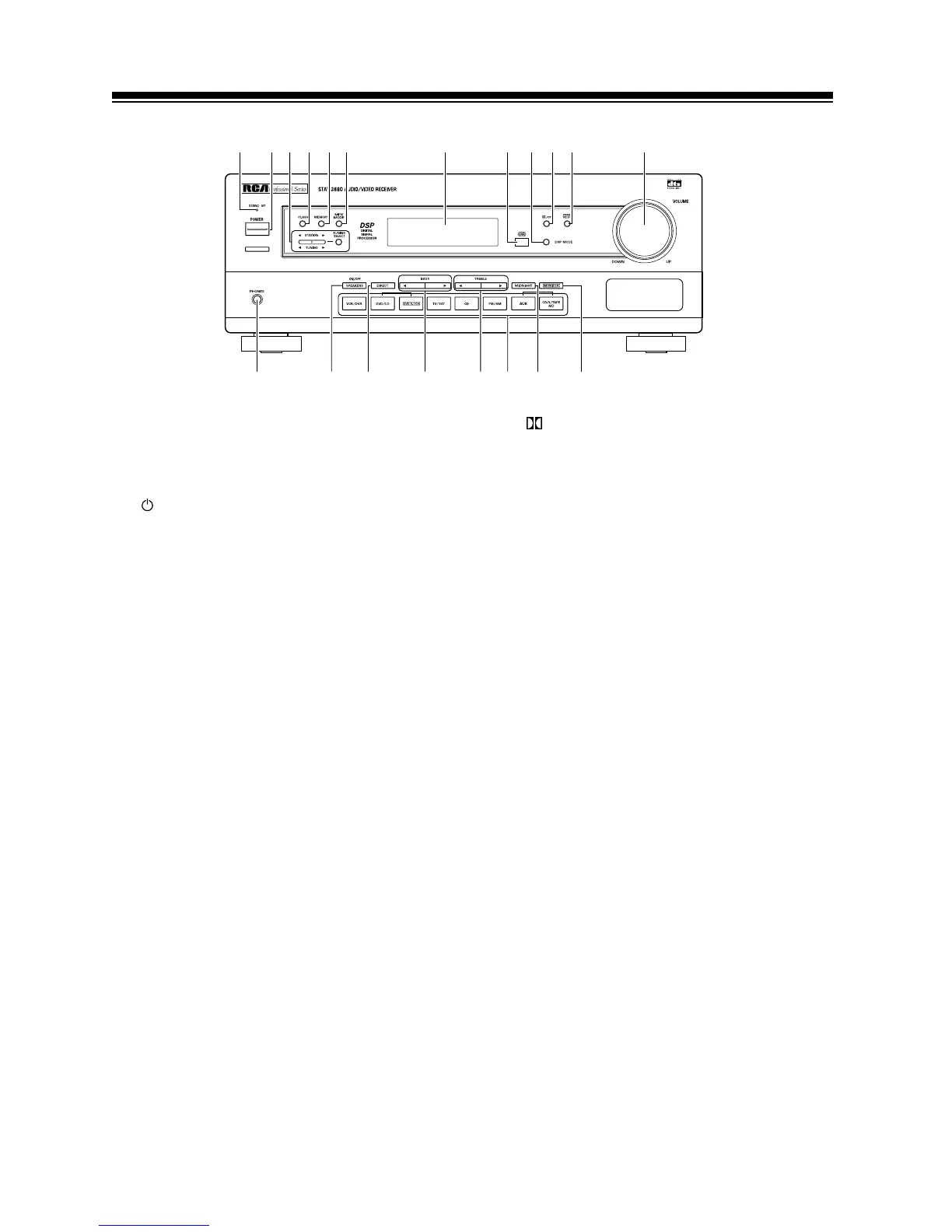

FRONT PANEL
1 STANDBY indicator
Lights when the receiver is in standby mode (note
that the receiver consumes a small amount of
power (1W) in standby mode).
2 STANDBY/ON button
Switches the receiver between on and
standby.(note that the receiver consumes a small
amount of power (1W) in standby mode).
3 STATION 2 3 (–/+), TUNING 2 3 (–/
+), TUNING SELECT buttons
STATION 2 3 (–/+)
Selects station memories when using the tuner.
FREQUENCY 2 3 (–/+)
Selects the frequency when using the tuner.
TUNING SELECT
Switches between station memory and frequency
select modes (see pages 34–36).
4 CLASS button
Switches between the three banks (classes) of
station memories (see page 36).
5 MEMORY button
Press to memorize a station for recall using the
STATION 2 3 buttons (see page 35).
6 MPX MODE button
lf the TUNED or STEREO indicators don't light
when tuning to an FM station because the signal
is weak, press the MPX button to switch the
receiver into mono reception mode. This should
improve the sound quality and allow you to enjoy
the broadcast (see page 35).
7 Display (see page 26)
8 Remote sensor
Receives the signals from the remote control.
9 DSP MODE button (see page 32)
Use to switch between the various DSP modes
available (HALL1, HALL 2, JAZZ, DANCE,
THEATER1, THEATER 2) and DSP off. Use to
create different surround sound effects from any
stereo source.
0 /DTS button (see pages 31, 33)
Use to switch between the various Dolby/DTS
surround modes.
- SIGNAL SELECT button (see page 30)
Use to select between an analog or digital signal.
= VOLUME
Use to set the overall listening volume.
~ PHONES jack
Use to connect headphones but this does not
switch the speakers off.
! SPEAKER button
Use to switch the speaker system A = B = A+B
= off.
@ DIRECT button
Use to switch DIRECT playback on or off. This
mode bypasses the tone controls and channel
levels for the most accurate reproduction of a
program source.
# BASS 2 3 (–/+) buttons
Use to increase/decrease bass (within a range of
-6dB to 6dB in 2dB steps).
$ TREBLE2 3 (–/+) buttons
Use to increase/decrease treble (within a range of
-6dB to 6dB in 2dB steps).
% Function buttons
Use to select a source for playback or recording.
^ MIDNIGHT button (see page 33)
Use when listening to movie soundtracks at low
volume. This feature will enable you to hear quiet
sounds and not get jolted by loud or sudden
sound effects.
& MONITOR button
Press to switch tape monitoring on/off.
1
R
!@ &^~%#$
123456
7
8
9
0-
=
