8
LR
LR
RL
L
B
R
SURROUND
SPEAKERS
FRONT
SPEAKERS
AC OUTLET
PCM / 2 / DTS
DIGITAL IN
TO
MONTOR
TV
VCR /
DVR
CONTROL
IN
AUX
CD
IN
IN IN OUT
OUT
CD - R
/ TAPE
/ MD
SURROUND
CENTER
SUB
WOOFER
SUB
WOOFER
PREOUT
IN
IN
IN
IN
IN
TV /
SAT
DVD
/ LD
CENTER
PREOUT
COAX OPT1 OPT2
O
U
T
R
E
C
P
L
A
Y
OUT
FM
UNBAL
75Ω
AM LOOP
ANTENNA
FM
ANTENNA
DVD 5.1 CH
INPUT
LR
CENTER
SPEAKER
FRONT
SPEAKERS
RECPLAY
L
R
L
R
OUTPUT

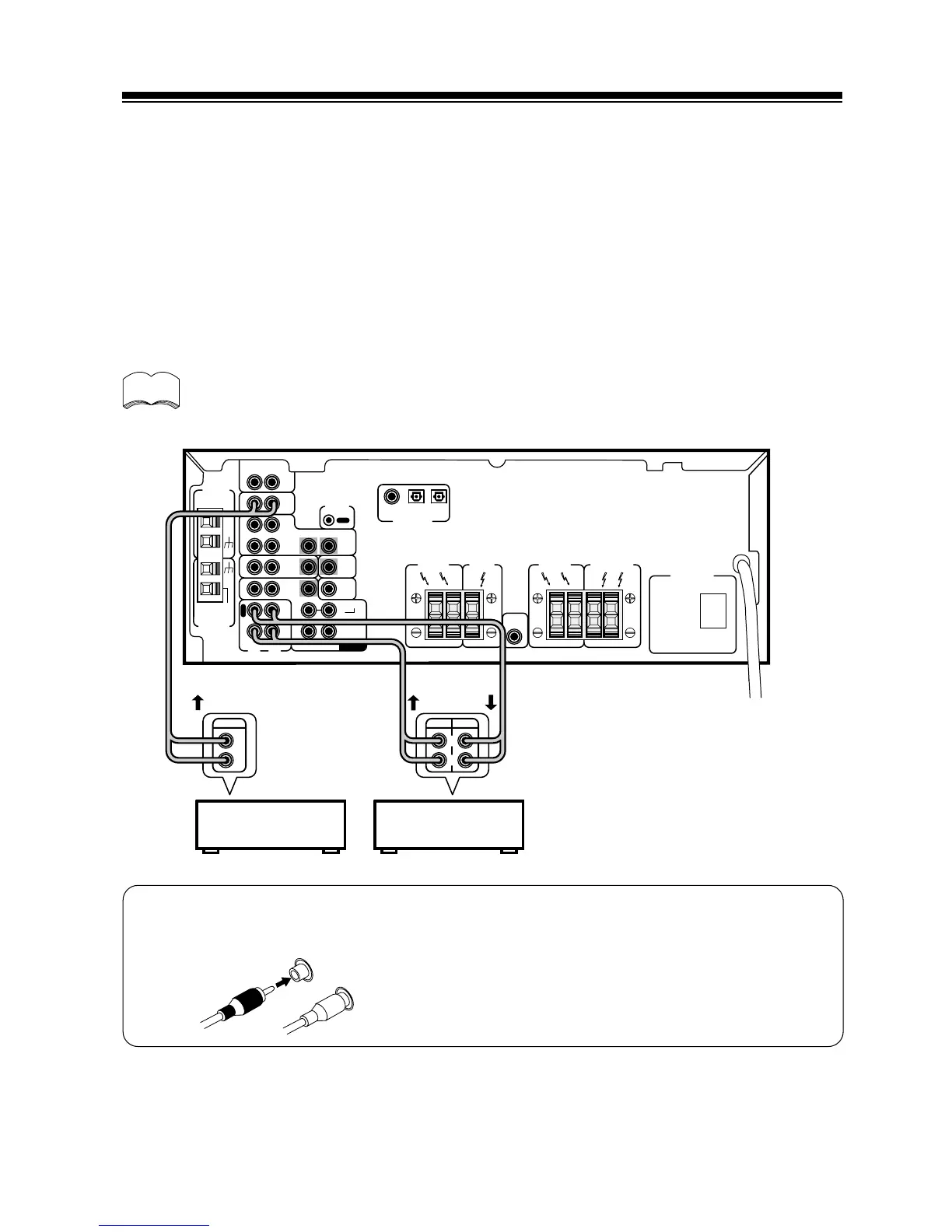

CONNECTING AUDIO COMPONENTS
To begin set up, connect your audio components to the jacks as shown below. These are all analog
connections and your analog audio components (turntable, cassette deck) use these jacks. Remember that
for components you want to record with you need to hook up four plugs (a set of stereo ins and a set of
stereo outs), but for components that only play (like a turntable) you only need to hook up one set of
stereo plugs (two plugs). To use DTS surround sound features you must hook up your digital components
to the digital inputs but it is also a good idea to hook up your digital components to analog audio jacks. If
you want to record to/from digital components (like an MD) to/from analog components, you must hook
up your digital equipment with these analog connections. See p.10-11 for more on digital connections.
When connecting your equipment, always make sure the power is turned off and the power cord is
disconnected from the wall outlet.
• The arrows indicate the direction of the audio signal.
Audio cords
Use audio cords (not supplied) to connect the audio components.
CD player
CD recorder
or Cassette deck
Connect red plugs to R (right) and white plugs to L
(left).
Be sure to insert completely.
L
R
CONNECTING YOUR EQUIPMENT
memo
CASSETTE DECK PLACEMENT
Depending on where the cassette deck is placed, noise may occur during playback of your cassette deck
which is caused by leakage flux from the transformer in the receiver. If you experience noise, move the
cassette deck farther away from the receiver.
