Set this switch to tell the receiver whether you’re using a component that is hooked up digitally or in an
analog manner. If you have no components connected digitally the switch wonb’t allow you to select
digital.

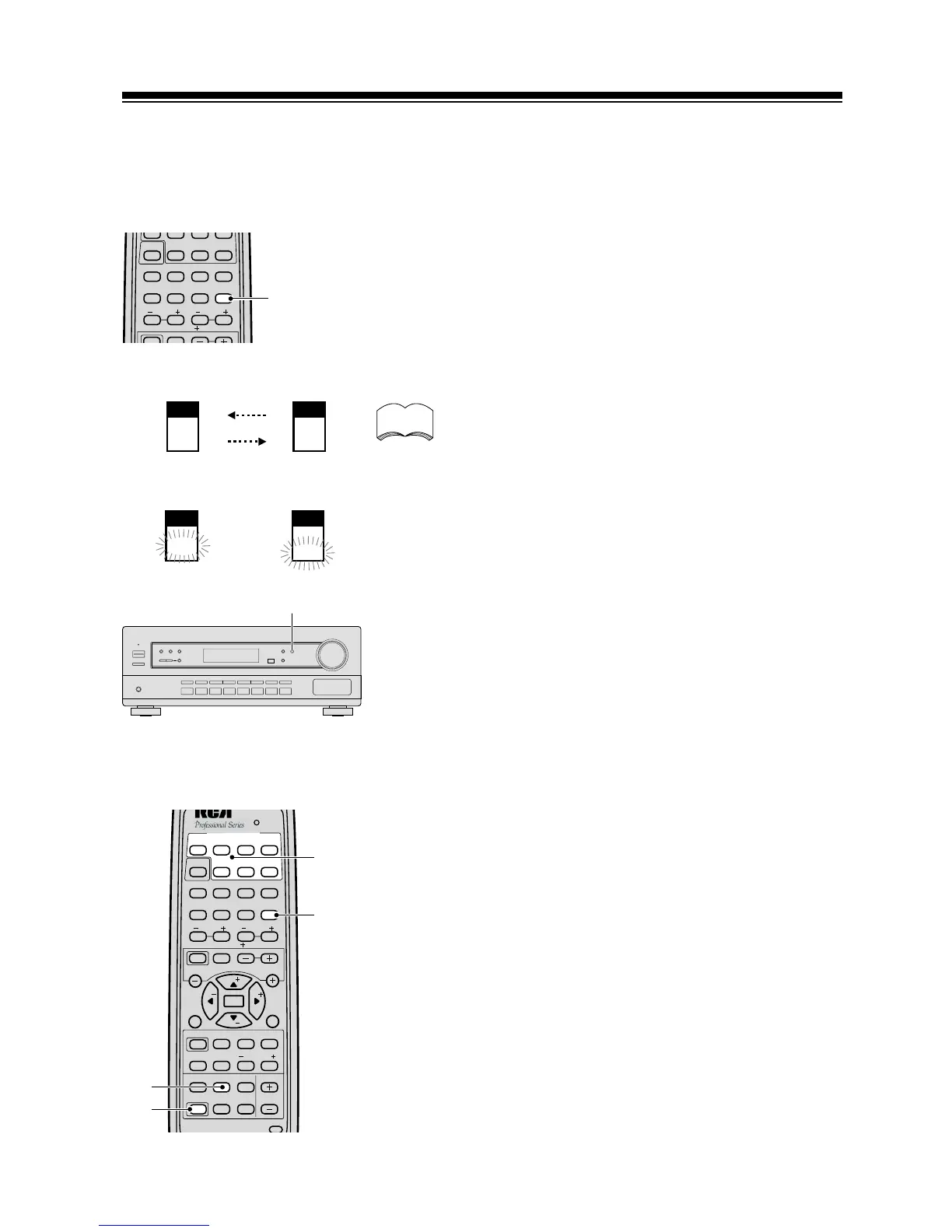

1 Press SIGNAL SELECT to select the input signal
corresponding to the source component.
Each press switches between ANALOG and DIGITAL signal
selection.
2 While SIGNAL SELECT is set to DIGITAL, 2 DIGITAL lights
when a Dolby Digital signal is input, DTS lights when a DTS
signal is input.
SIGNAL
SELECT
• SIGNAL SELECT is fixed in the “ANALOG” position
for components not assigned to one of the two digital
input jacks.
• This receiver can only play back Dolby Digital, PCM
(32kHz, 44kHz, and 48kHz), DTS, digital signal
formats. With digital signal formats other than these,
set SIGNAL SELECT to “ANALOG”.
• When an LD or CD player compatible with DTS is
played back with SIGNAL SELECT set in “ANALOG”,
digital noise is output caused by playing back the DTS
directly (no decoding). To prevent noise, you need to
make digital connections (Refer to page 11) and set
SIGNAL SELECT to “DIGITAL”.
• Some DVD players don’t output DTS signals. For more
details, refer to the instruction manual supplied with
your DVD player.
memo
AT T
CH
2 DSP MODE MIDNIGHT 5.1CH
CD-R/
TAPE/MD
CHANNEL
SELECT
CHANNEL
LEVEL
EFFECT
ENTER
FUNC
10 DISC
SIGNAL
SELECT
TEST
TONE
RECEIVER TUNER TV CONT
1234
5678
90
‡
POWER
SIGNAL SELECT
1 Turn on the power of the playback component.
2 Turn on the power of the receiver.
Be sure that the standby indicator turns off on the front panel.
3 Press MULTI CONTROL buttons or the FUNCTION button to
select the source you want to playback.
If the DIRECT FUNCTION is OFF you have to use the
FUNCTION button to select the source (see p.22).
4 If necessary, press SIGNAL SELECT to select the input signal
corresponding to the source component (as above).
5 Start playback of the component you selected in step 1.
PLAYING A SOURCE
3
2
3
4
SIGNAL
SELECT
ANALOG
SIGNAL
SELECT
ANALOG
DIGITAL
SIGNAL
SELECT
ANALOG
DIGITAL
2DIGITAL
SIGNAL
SELECT
ANALOG
DIGITAL
DTS
Each press switches between ANALOG
and DIGITAL signal selection.
When a Dolby Digital
signal is input.
When a DTS
signal is input.
