RCA Audio/Video Receiver User Manual

12
LR
LR
RL
L
B
R
SURROUND
SPEAKERS
FRONT
SPEAKERS
AC OUTLET
PCM / 2 / DTS
DIGITAL IN
TO
MONTOR
TV
VCR /
DVR
CONTROL
IN
AUX
CD
IN
IN IN OUT
OUT
CD - R
/ TAPE
/ MD
SURROUND
CENTER
SUB
WOOFER
SUB
WOOFER
PREOUT
IN
IN
IN
IN
IN
TV /
SAT
DVD
/ LD
CENTER
PREOUT
COAX OPT1 OPT2
O
U
T
R
E
C
P
L
A
Y
OUT
FM
UNBAL
75Ω
AM LOOP
ANTENNA
FM
ANTENNA
DVD 5.1 CH
INPUT
LR
CENTER
SPEAKER
FRONT
SPEAKERS
FM Wire Antenna
Connect the FM wire antenna and fully
extend vertically along a window frame or
other suitable area.
7 To Improve FM Reception
Connect an external FM antenna.
FM
UNBAL
75Ω
FM
ANTENNA
AM LOOP
ANTENNA
7 To Improve AM Reception
Connect a 15–18 feet length of vinyl-coated wire to the AM
antenna terminal without disconnecting the supplied AM loop
antenna.
For the best possible reception, suspend horizontally outdoors.
OUTDOOR ANTENNA
Antenna Snap Connectors
Twist the exposed wire strands
together and insert into the hole,
then snap the connector shut.

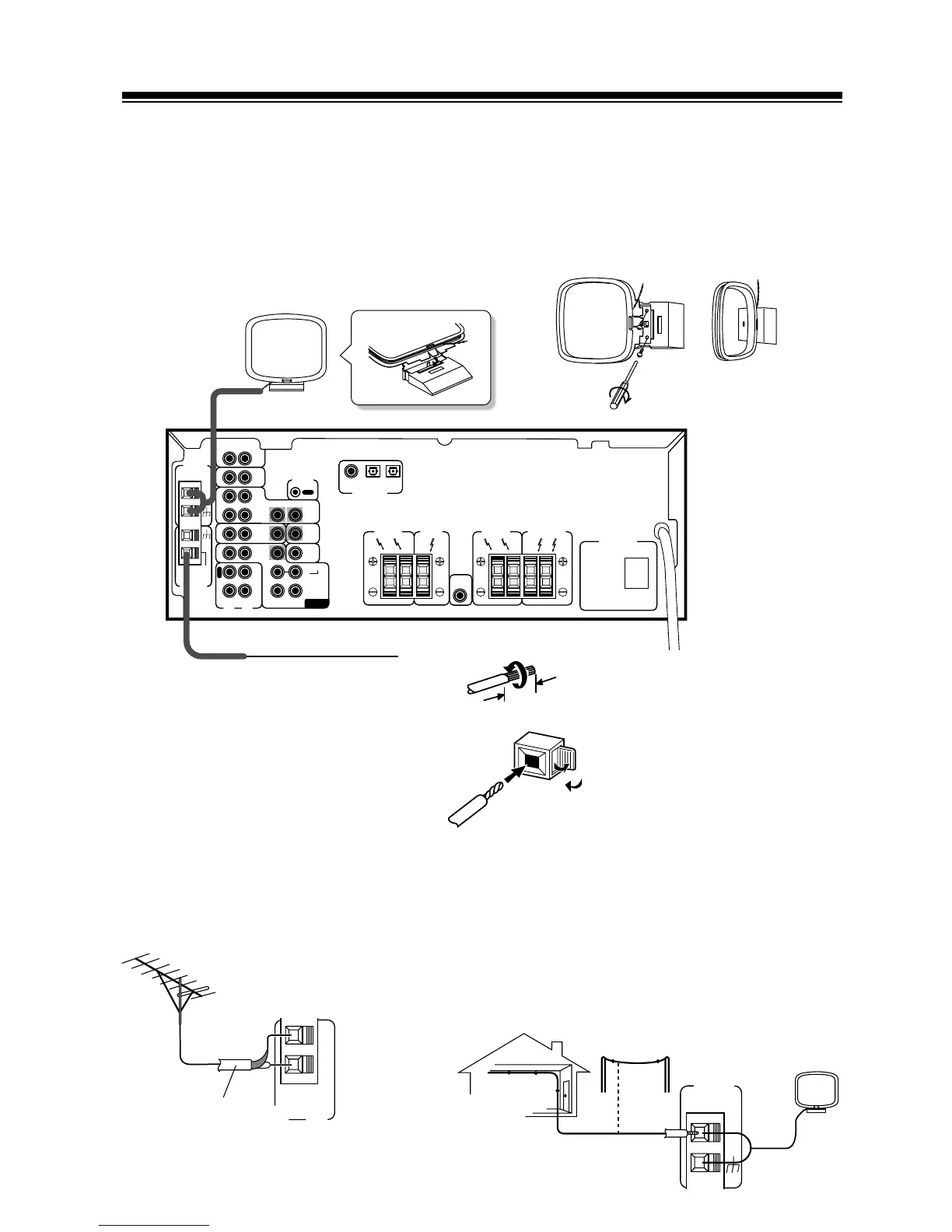

CONNECTING ANTENNAS
Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound
quality, connect external antennas (see Using external antennas, below). Always make sure that the
receiver is switched off and unplugged from the wall outlet before making or changing any connections.
3/8 in. (10mm)
USING EXTERNAL ANTENNAS
AM Loop Antenna
Assemble the antenna and connect to the receiver. Attach to a wall, etc. (if desired) and face
in the direction that gives the best reception.
15–18 FT.
INDOOR ANTENNA
(VINYL-COATED WIRE)
75 Ω COAXIAL CABLE
