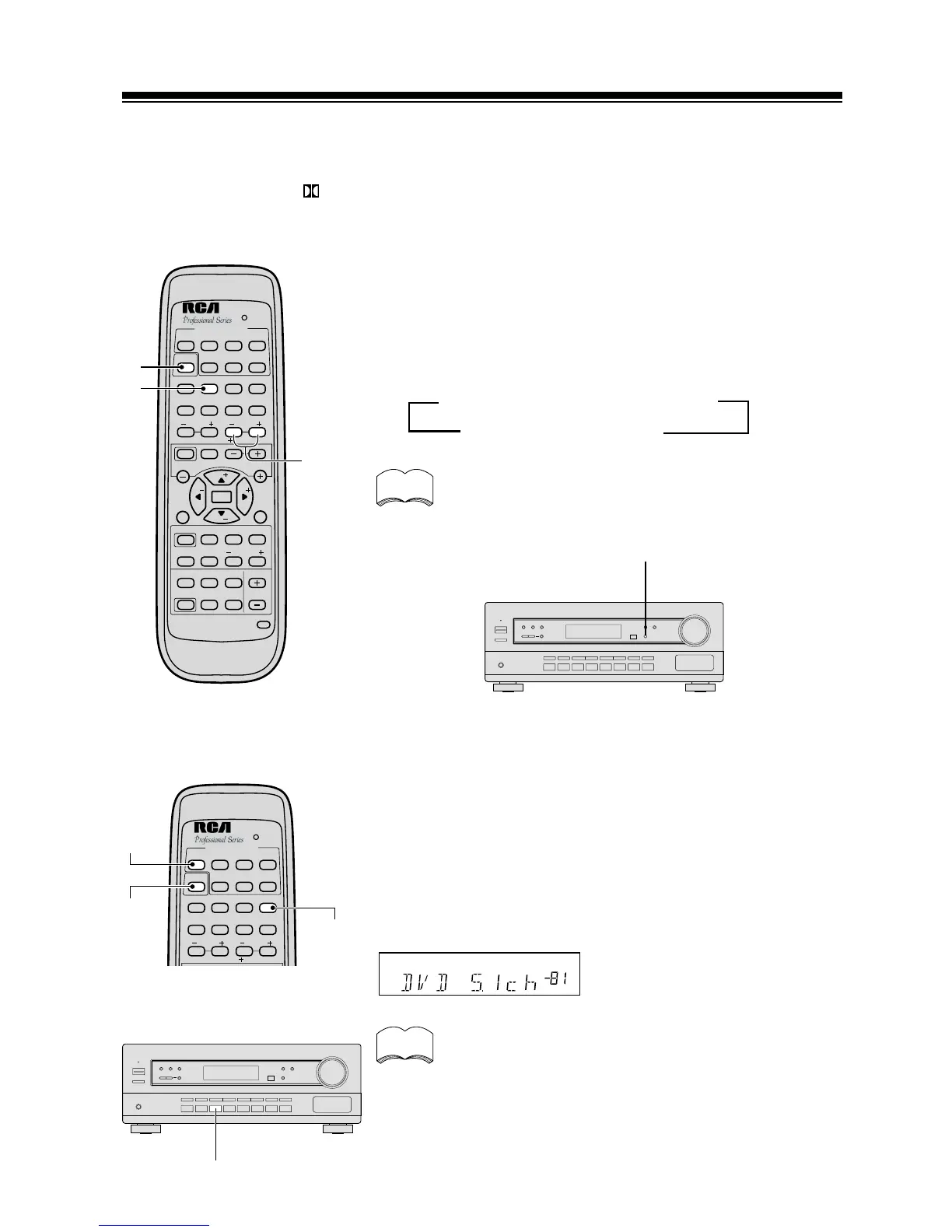

1 Press RECEIVER.
This sets the remote to select the sound mode.
(You can skip this step when using the controls on the re-
ceiver.)
2 Press DSP MODE to select the sound mode.
Each press changes the DSP mode as follows:
The amount of effect of each DSP mode can be adjusted in
the range of 10 to 90 (the default setting is 70) by pressing
EFFECT +/–.
SELECTING A SOUND MODE
To ensure the best possible surround sound, be sure to complete the set up procedures described in
“Setting Up for Surround Sound” (starting on page 14) before using the sound modes. This is particularly
important when using the (Dolby) sound mode.
DSP mode
memo
memo
DVD 5.1CH
DSP MODE
1
2
EFFECT +/–
dB
MULTI CONTROL
DVD/LD TV/SAT VCR/DVR CD
AT T
CH
2 DSP MODE MIDNIGHT 5.1CH
CD-R/
TAPE/MD
CHANNEL
SELECT
CHANNEL
LEVEL
EFFECT
ENTER
10 DISC
SIGNAL
SELECT
TEST
TONE
RECEIVER TUNER TV CONT
1234
5678
90
‡
DVD
5.1CH
There are two ways to switch on DVD 5.1 CH mode. With the remote
control press the DVD/LD MULTI CONTROL button. Then press the
RECEIVER button and number button 4 (DVD 5.1CH). On the main
unit simply press the DVD 5.1CH button.
Press number button 4 (DVD 5.1CH) on the remote to go back to the
DVD/LD mode control To exit this mode using the main unit simply
press other function button (DVD/LD, etc.).
DVD 5.1 CH. INPUT PLAYBACK
Connect a DVD player with 5.1 channel output to enjoy the surround sound created by 5.1 channel
playback.
• When 5.1 ch input is selected, Dolby mode, DSP
mode,SIGNAL SELECT, ATT, DIRECT, TONE,
MIDNIGHT mode, LOUDNESS cannot be operated.
• When 5.1ch input is selected, only the volume level
and channel levels can be set.
=HALL 1 = HALL 2 = JAZZ = DANCE
THEATER 2 + THEATER 1 +
DVD / LD
MULTI
CONTROL
RECEIVER
