26

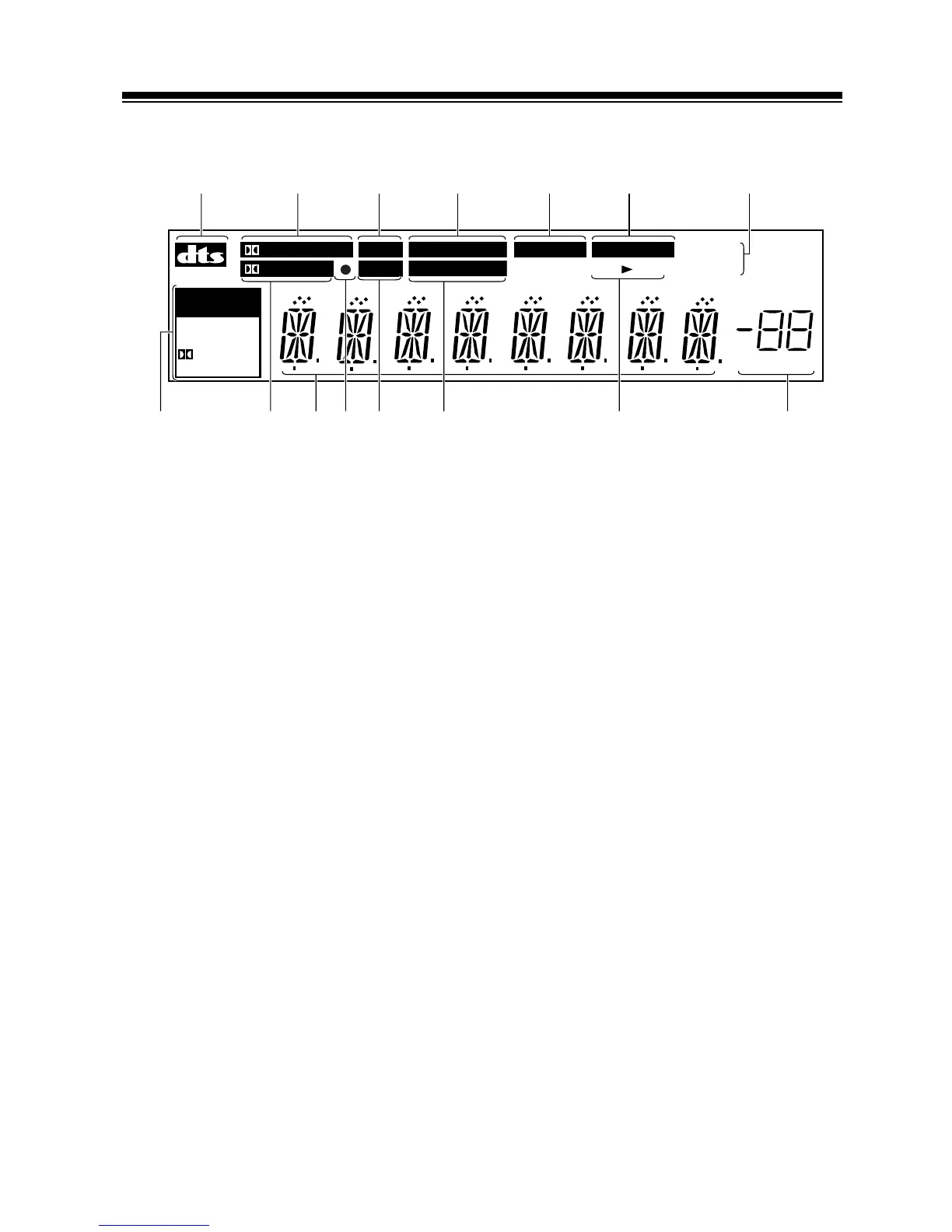

DISPLAY
1 DTS indicator
Lights when DTS mode is being used.
2 2 PRO LOGIC indicator
When the 2 Surround/DTS mode of the receiver
is on, this lights to indicate playback of a two
channel source.
3 DSP indicator
Lights when any Advanced Theater or DSP mode
is selected.
4 MIDNIGHT indicator
Lights when MIDNIGHT listening mode is in use.
5 DIRECT indicator
Lights when source DIRECT is in use. This
function bypasses all tone, balance, DSP and
Dolby Surround effects.
6 MONITOR indicator
Lights when MONITOR is selected to hear a
recording as it's being made (see page 37).
7 TUNER indicators
MONO :
Lights when the mono mode is set using the
MPX MODE button.
TUNED :
Lights when a broadcast is being received.
STEREO :
Lights when a stereo FM broadcast is being
received in auto stereo mode.
8 SIGNAL SELECT indicators
Light to indicate the type of input signal assigned
for the current component (see “Front Panel“, -,
SIGNAL SELECT).
ANALOG : Lights when an analog signal is
selected.
DIGITAL : Lights when a digital audio signal is
selected.
2 DIGITAL : Lights when a DOLBY DIGITAL
signal is played.
DTS : Lights when a source with DTS audio
signals is played.
9 2 DIGITAL indicator
When the 2 Surround/DTS mode of the receiver
is on, this lights to indicate playback of a Dolby
Digital signal.
0 CHARACTER display
Shows the radio frequency or function (DVD/LD,
CD, etc.) receiver is using .
- OVERLOAD indicator
This lights when an analog signal is too strong
(the SIGNAL SELECT needs to be on ANALOG).
It indicates the sound is distorting and the signal
should be reduced.
= ATT indicator
Lights when ATT is used to attenuate (reduce) the
level of the input signal (can only be used in
ANALOG mode).
~ LOUDNESS indicator
Lights when the LOUDNESS, used to boost the
bass and treble in quiet listening, is on.
! SPEAKER indicator
Shows if the speaker system is on or not. SP 3A
and/or B means speakers are switched on. SP 3
means speakers are switched off.
@ MASTER VOLUME LEVEL
Shows the overall volume level. Volume level is
maintained even when the power is off. ---dB
indicates the minimum level, and 0dB indicates
the maximum level.
• Depending on the level settings you make for
individual channels, the MAX level can range
between –10dB and 0dB.
dB
PRO LOGIC
DIGITAL
DSP
ATT
SIGNAL
SELECT
MIDNIGHT
LOUDNESS
DIRECT
S.BASS
MONITOR EON
RDS
RF ATT
TUNED
MONO
ANALOG
DIGITAL
DIGITAL
DTS
SP AB STEREO
231 657
8
90-= ~ ! @
4
