7. Input Tray Cover
Set this cover up and pull out the paper source tray to load paper.
8. Tray Extension
Pull out and extend this tray extension to hold the output paper.
9. Front Cover
Open this cover to pull out the output tray before printing.
10. Maintenance Cover
Lift up this cover to replace consumables or clear a paper jam.
11. Auto Document Feeder (Exposure Glass Cover)
The auto document feeder (ADF) is integrated with the exposure glass cover. Open this cover to place
documents on the exposure glass.
12. Tray Extension
Pull out this tray extension to hold the originals.
13. USB Port
Use this port to connect the machine to a computer using a USB cable.
14. Line and TEL Connector
• Upper connector: External Telephone Connector. For connecting an external telephone.
• Lower connector: G3 (analog) Line Interface Connector. For connecting a telephone line.
15. Power Connector
Connect the power cord to the machine here. Insert the other end of the cable into a nearby wall outlet.
16. Power Switch
Use this switch to turn the power on or off.

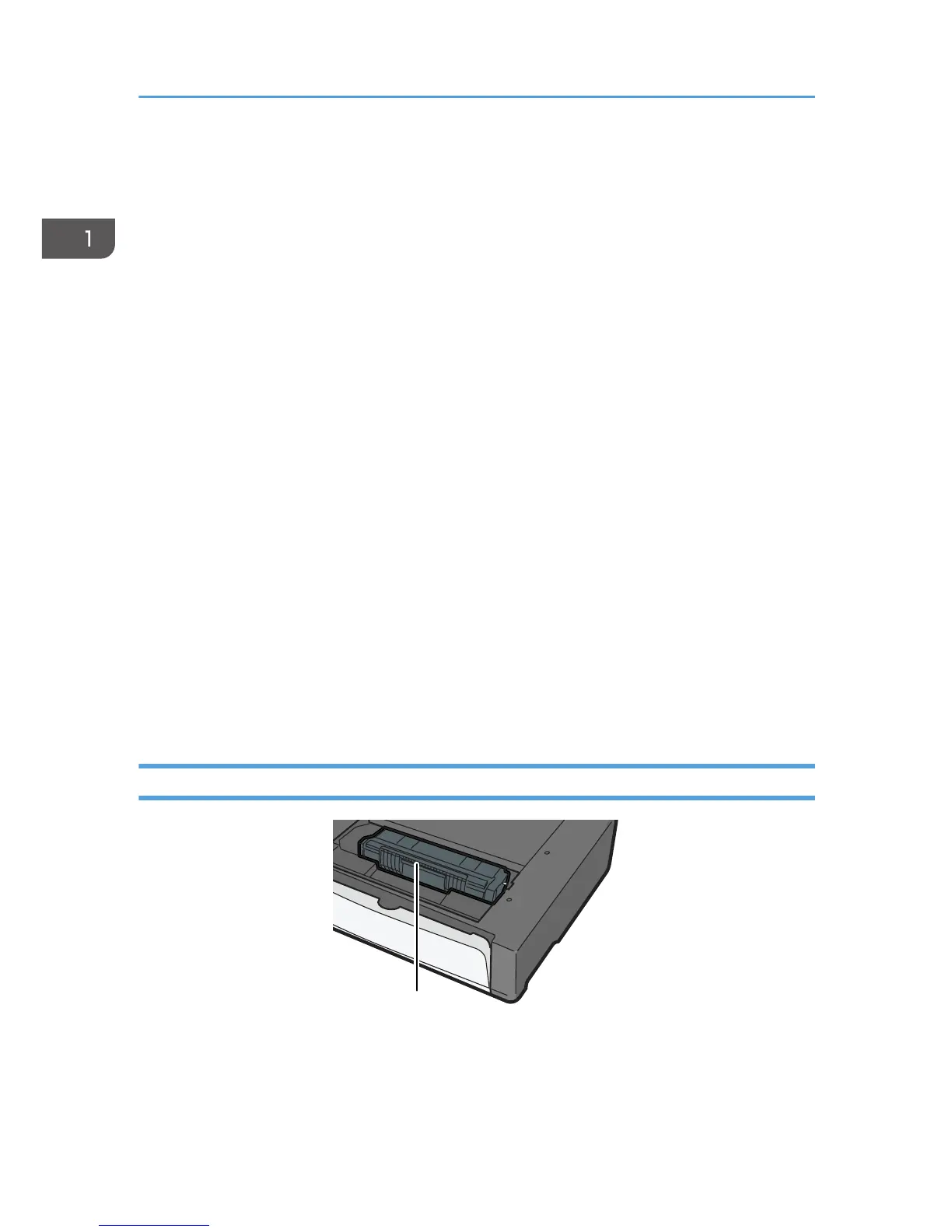

Interior
