Rigol DS1000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
2-82
Waveform recorder
Waveform recorder records input waveforms from CH1 and CH2, with a maximum
record length of 1000 frames. This performance can also be activated by the Pass/Fail
test output, which makes this function especially useful to capture abnormal signals in
long term without keeping an eye watching it.
Press Utility→Record→Mode→Record to go to the following menu.
Waveform recorder: Record the waveforms with specified interval.

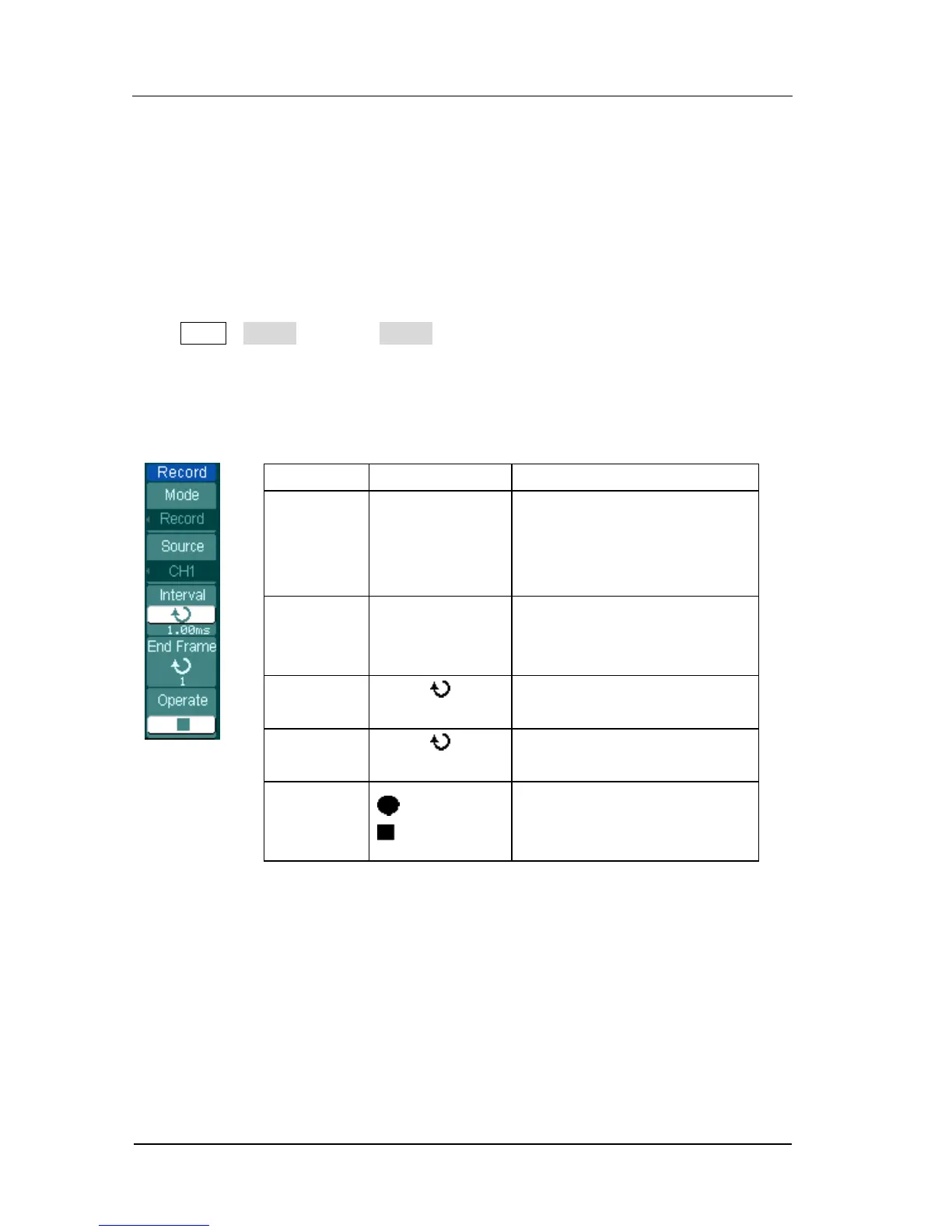

Figure 2-101 Table2-65 The Record menu
Menu
Settings
Comments
Mode
Record
Play back
Storage
OFF
Select record mode
Select play back mode
Select storage mode
Turn off all recorder functions
Source
CH1
CH2
P/F-OUT
Select record source channel
Interval
<1.00ms-1000s>
Set time interval between
record frames
End Frame
<1-1000>
Set number of record frames
Operate
(Run)
(Stop)
Record stopped, press to
Start recording
Recording, press to stop
