RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
To Perform a Functional Check
Perform this quick functional check to verify that the instrument is operating correctly.
1. Turn on the instrument.
Use the power cord designed for the oscilloscope only.
Use a power source that delivers 100 to 240 VAC
RMS
, 45Hz to 440Hz.
Turn on the instruments, and wait until the display shows the waveform window.
Push the Storage button, select Storage in the top menu box and push the
Factory menu box.

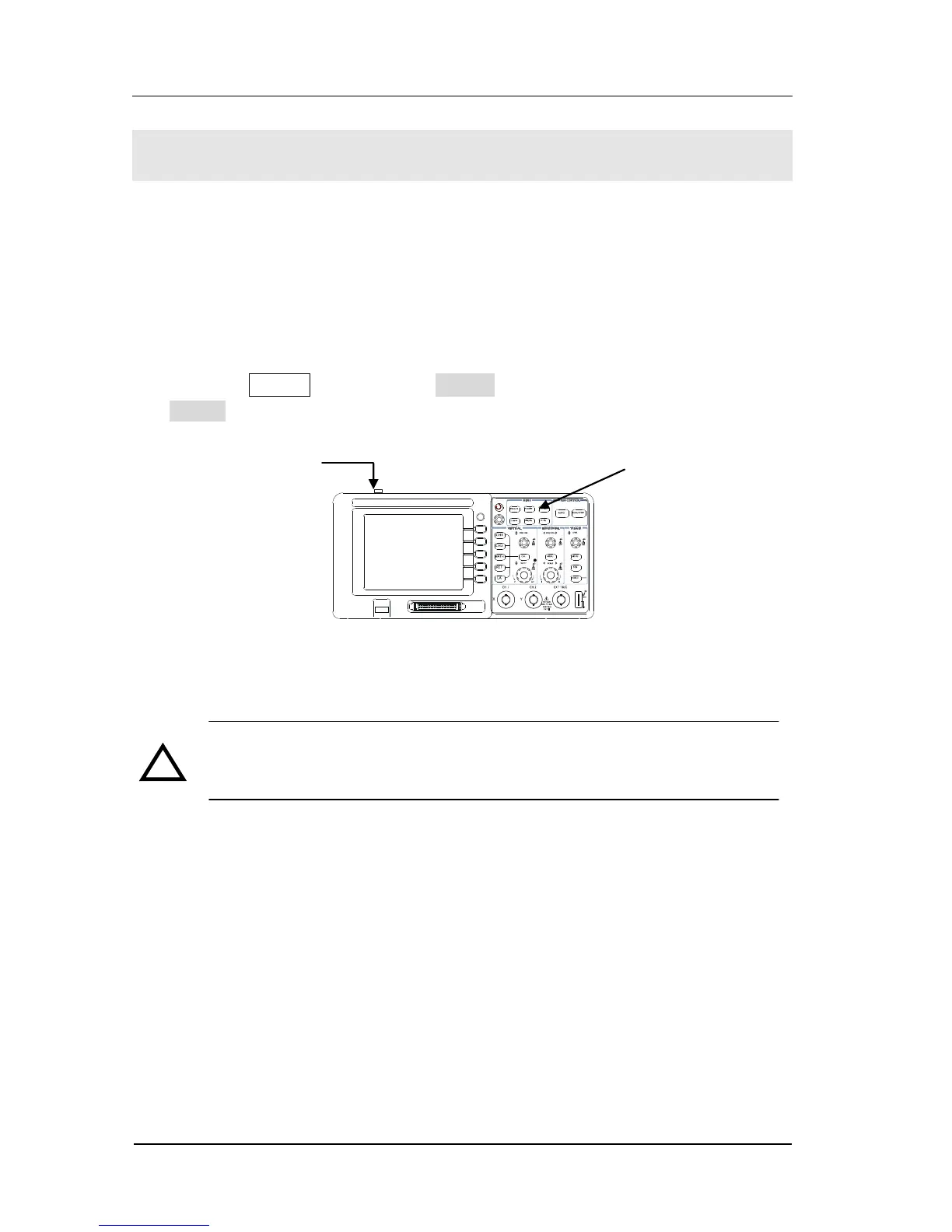

Figure 1-5
Power and Storage button
WARNNING:
To avoid electric shock, be sure the oscilloscope is properly grounded.
2．Input a signal to a channel of the oscilloscope
① Set the switch on the probe to 10X and connect the probe to Channel 1 on the
oscilloscope.
To do this:
Align the slot in the probe connector with the key on the CH 1 BNC.
Push to connect, and twist to the right to lock the probe in place.
Attach the probe tip and ground lead to the PROBE COMP connector.
To Next Page
