RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
Using REF
Reference Waveforms are saved waveforms to be selected for display. The reference
function will be available after saving the selected waveform to non-volatile memory.
Press REF button to display reference waveform menu.

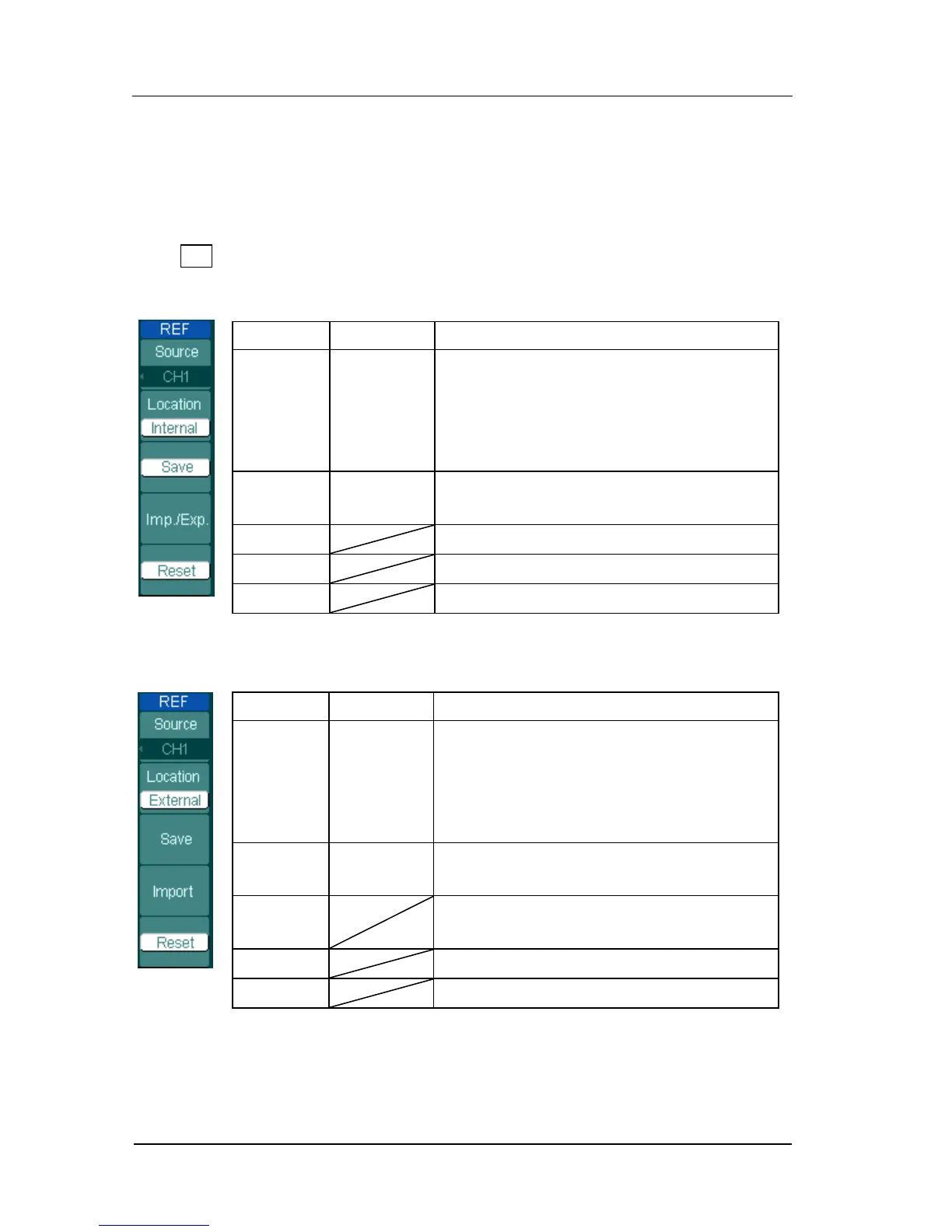

Figure 2-18 Table2-8 REF menu when using internal memory
Select channel1 as REF channel
Select channel2 as REF channel
Select Math/FFT as REF channel
Select LA as REF channel (DS1000xD)
Select memory location in scope
Select memory location out scope
Go to import/export menu(see table 2-10)
Figure 2-19 Table 2-9 REF menu when using internal memory
Select channel1 as REF channel
Select channel2 as REF channel
Select Math/FFT as REF channel
Select LA as REF channel (DS1000xD)
Select memory location in scope
Select memory location out scope
Save REF waveform to outer memory
location
Go to import menu(see table 2-14)
