User‟s Guide for DS1000 Series
2-89

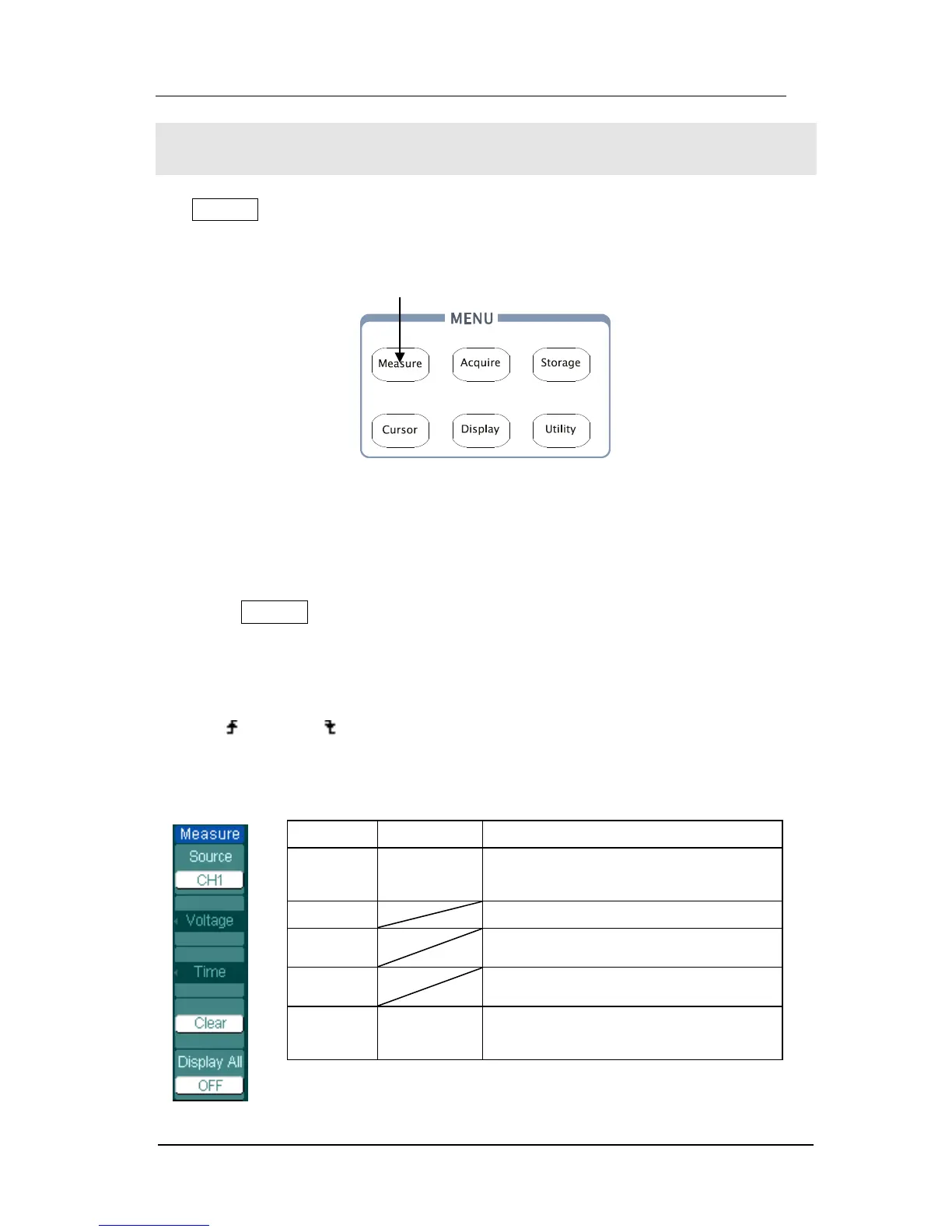

To Measure Automatically
The Measure button in the menu area activates the automatic measurement function.
The instruction below shows the powerful measurement function of DS1000CA series
oscilloscopes.
Menu explanation:
Press the Measure button to display the menu for the settings of the Automatic
Measurements.
The oscilloscopes provide 20 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time,
Delay1-2 , Delay1-2 , +Width, -Width, +Duty, -Duty (10 voltage and 10 timing
measurements).
Figure 2-109 Table 2-72 The Measure menu
Menu
Settings
Comments
Source
CH1
CH2
Select CH1 or CH2 as source channel
for measurement
Voltage
Select to measure voltage parameter
Time
Select to measure time parameter
Clear
Clear measurement result on screen
Display
All
OFF
ON
Turn off all measurement result
Turn on al measurement result
Auto measurement
Figure 2-108
Measurement Button
