Rigol DS1000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
2-45
Alternative Trigger
When alternative trigger is on, the trigger sources come from two vertical channels.
This mode can be used to observe two non-related signals. You can choose two
different trigger modes for the two vertical channels. The options are as follows: Edge,
Pulse, Slope and video. The info of the trigger level of the two channels will be
displayed on the upper-right of the screen.

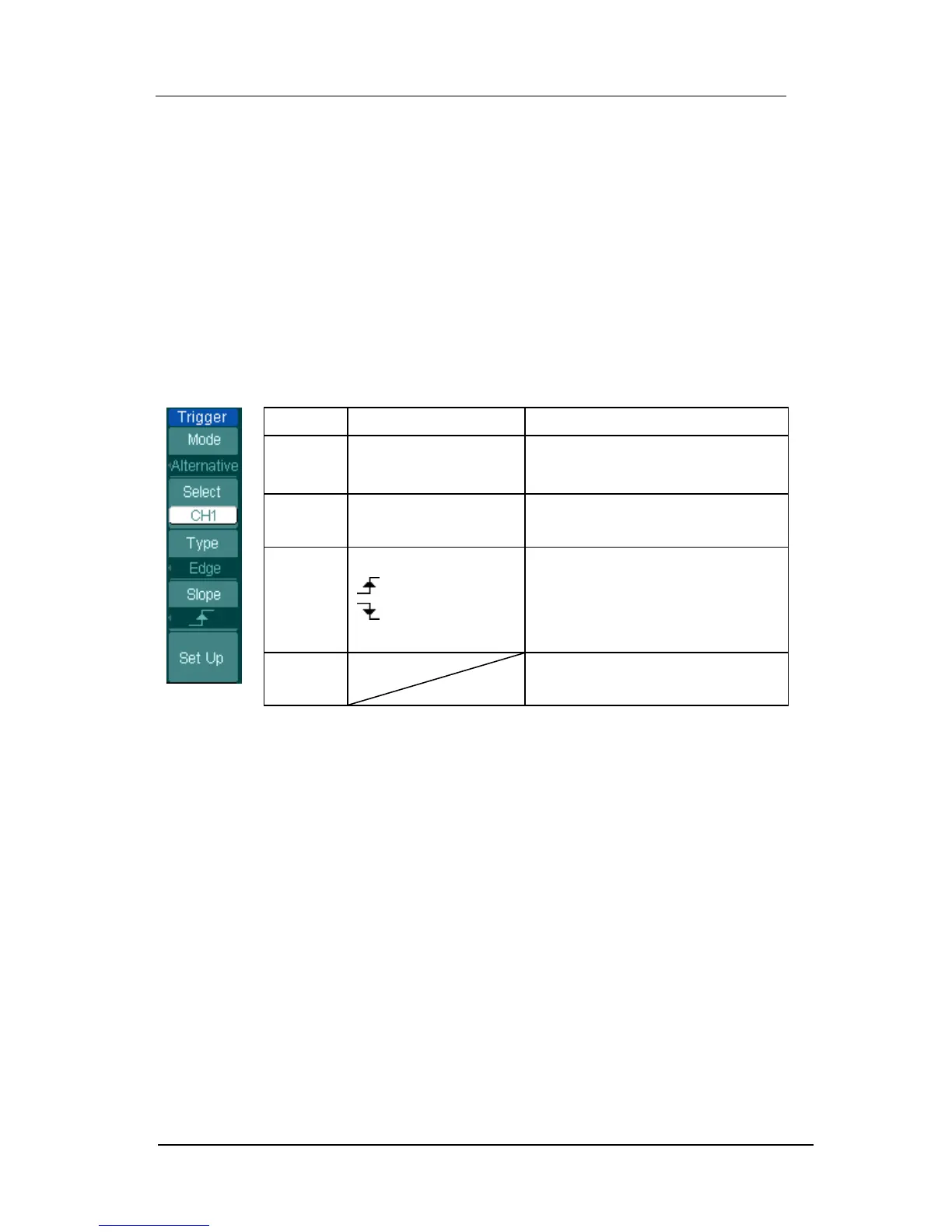

Figure 2-52 Table 2-28 The Alternative menu (Trigger Type: Edge)
Menu
Settings
Comments
Select
CH1
CH2
Set trigger mode for Channel 1
Set trigger mode for Channel 2
Type
Edge
Set Edge Trigger as the trigger
type
Slope
(Rising)
(Falling)
Trigger on rising edge
Trigger on falling edge
Trigger on both ring & falling
edge
Set Up
To go to set up menu. See table
2-38
