Trigger Holdoff
Trigger Holdoff can stabilize complex waveform, such as the pulse range. Holdoff time
is the oscilloscope‟s waiting period before starting a new trigger. During Holdoff,
oscilloscope will not trigger until Holdoff ends. For instance: To trigger on the first
pulse on a group of them, users can set the holdoff time to Pulse cluster width.

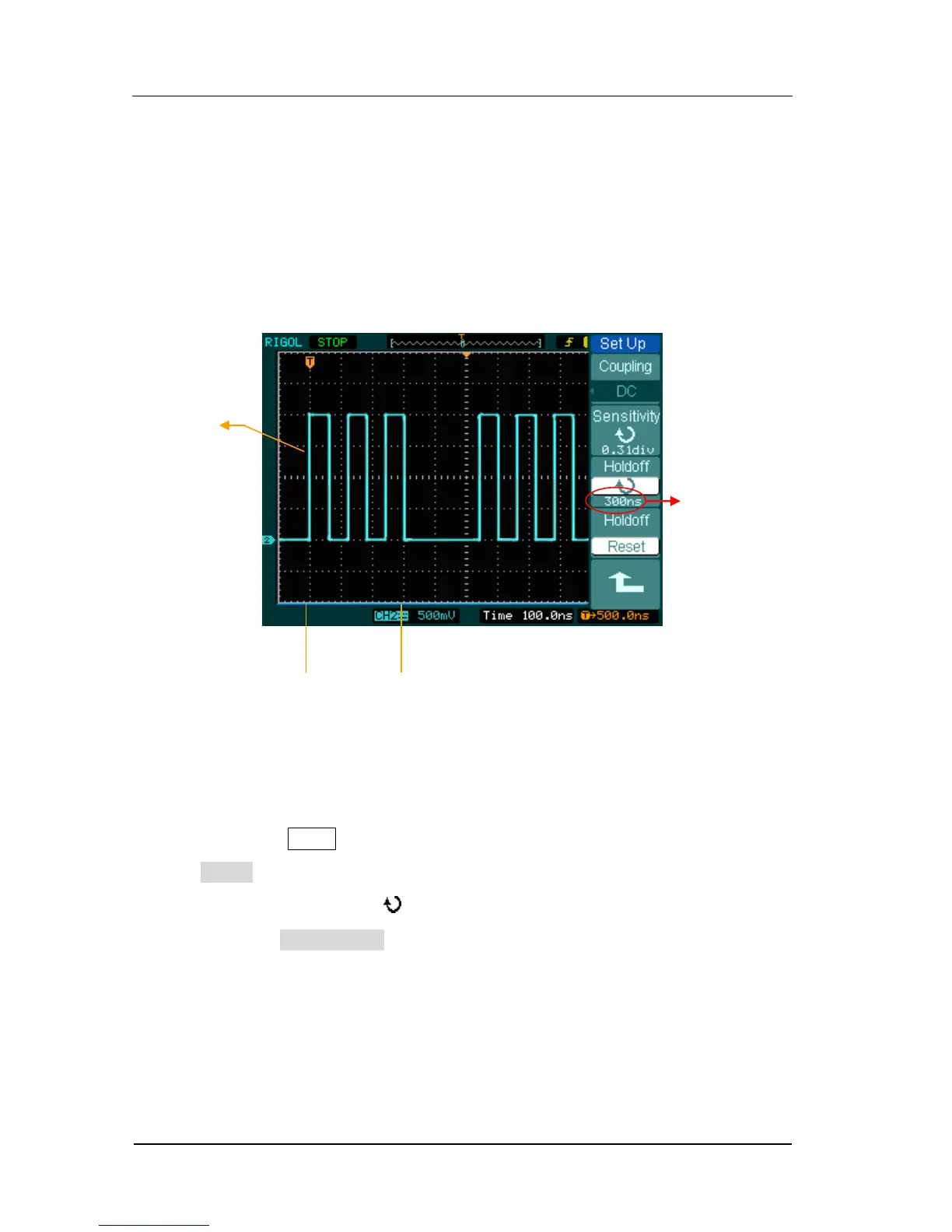

Figure 2-65
Trigger Holdoff
To use trigger Holdoff:
1. Press the trigger MENU button to display Trigger Menu.
2. Press Set Up key to display trigger set up menu.
3. Turn the multi function knob ( ) to change Holdoff time until waveform is stable.
4. Pushing Trigger Hold off reset can reset the Holdoff time to its default value.
Trigger holdoff
Time of
holdoff
Trigger site
