22 Rockwell Automation Publication 2198-RM006A-EN-P - December 2020
Chapter 2 Servo Drive and System Comparisons
Dimension Drawings
This section provides drive dimensions to assist you in determining the space
that is needed to install the drives.
Ultra3000 (240V) Drive Dimensions
In Figure 2, -xxx is replaced by -005, -010, or -020 to represent the Ultra3000
500 W, 1 kW, and 2 kW drives respectively.

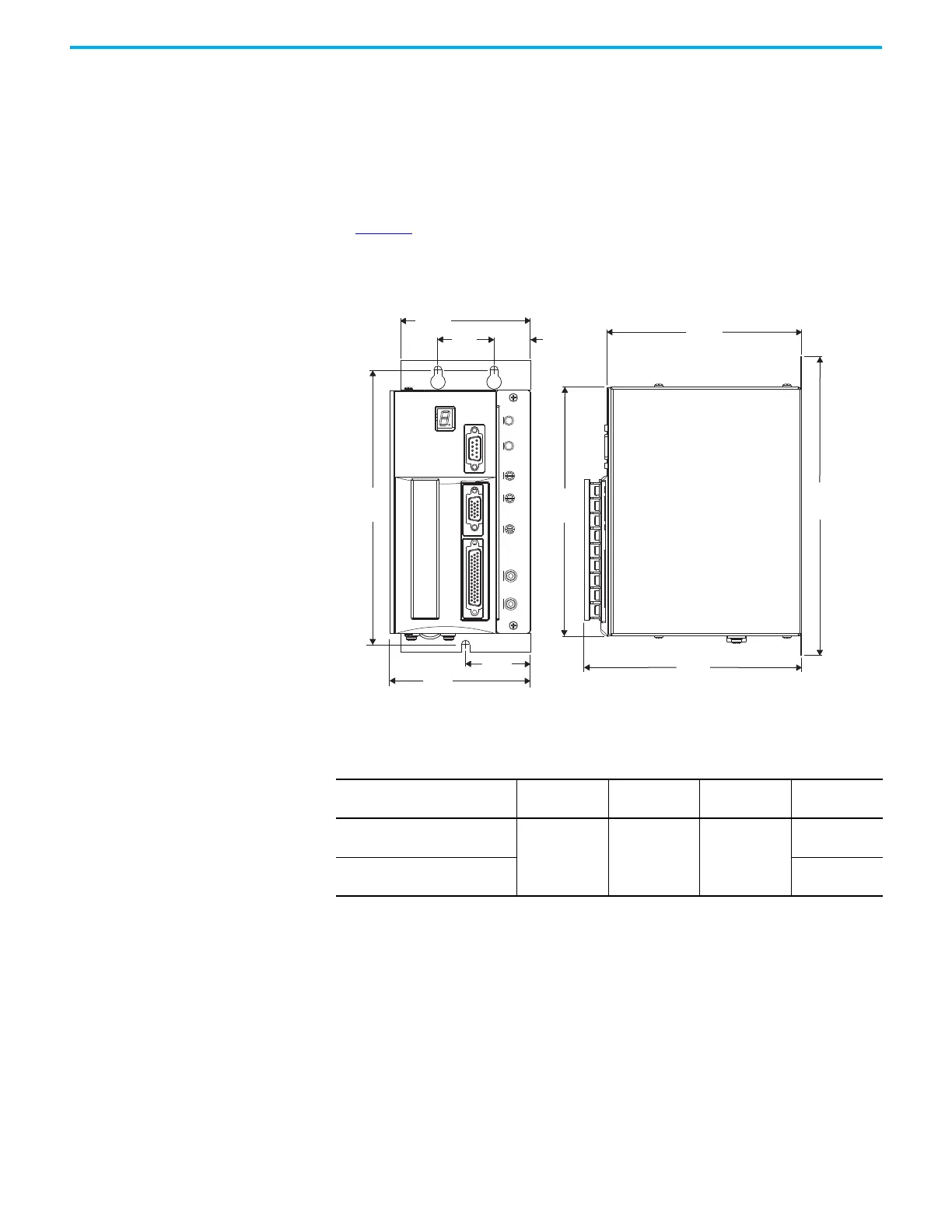

Figure 2 - Ultra3000 (240V) Dimensions (Catalog number 2098-DSD-xxx-SE)
Table 8 - Ultra3000 (240V) Dimensions 2098-DSD-xxx-SE
Ultra3000
Servo Drive Cat. No.
A
mm (in.)
C
mm (in.)
E
mm (in.)
F
mm (in.)
2098-DSD-005-SE
87.88
(3.46)
24.64
(0.97)
43.94
(1.73)
95.5
(3.76)
2098-DSD-010-SE
2098-DSD-020-SE
121.54
(4.79)
129.03
(5.08)
198.12
(7.8)
144.27
(5.68)
165.1
(6.5)
A
C
E
186.18
(7.33)
38.1
(1.5)
F
Dimensions are in mm (in.)
