About the MD60 Drive 2-1
CHAPTER 2
About the MD60 Drive
This chapter provides information about the MD60 AC drive,
including:
• How to identify the drive
• Descriptions of NEMA ratings
2.1 Identifying the Drive by Model
Number
Each drive can be identified by its model number, as shown in
figure 2.1. The model number is on the shipping label and the drive
nameplate. The model number includes the drive and any options.
Drive model numbers are provided in table 2.1.

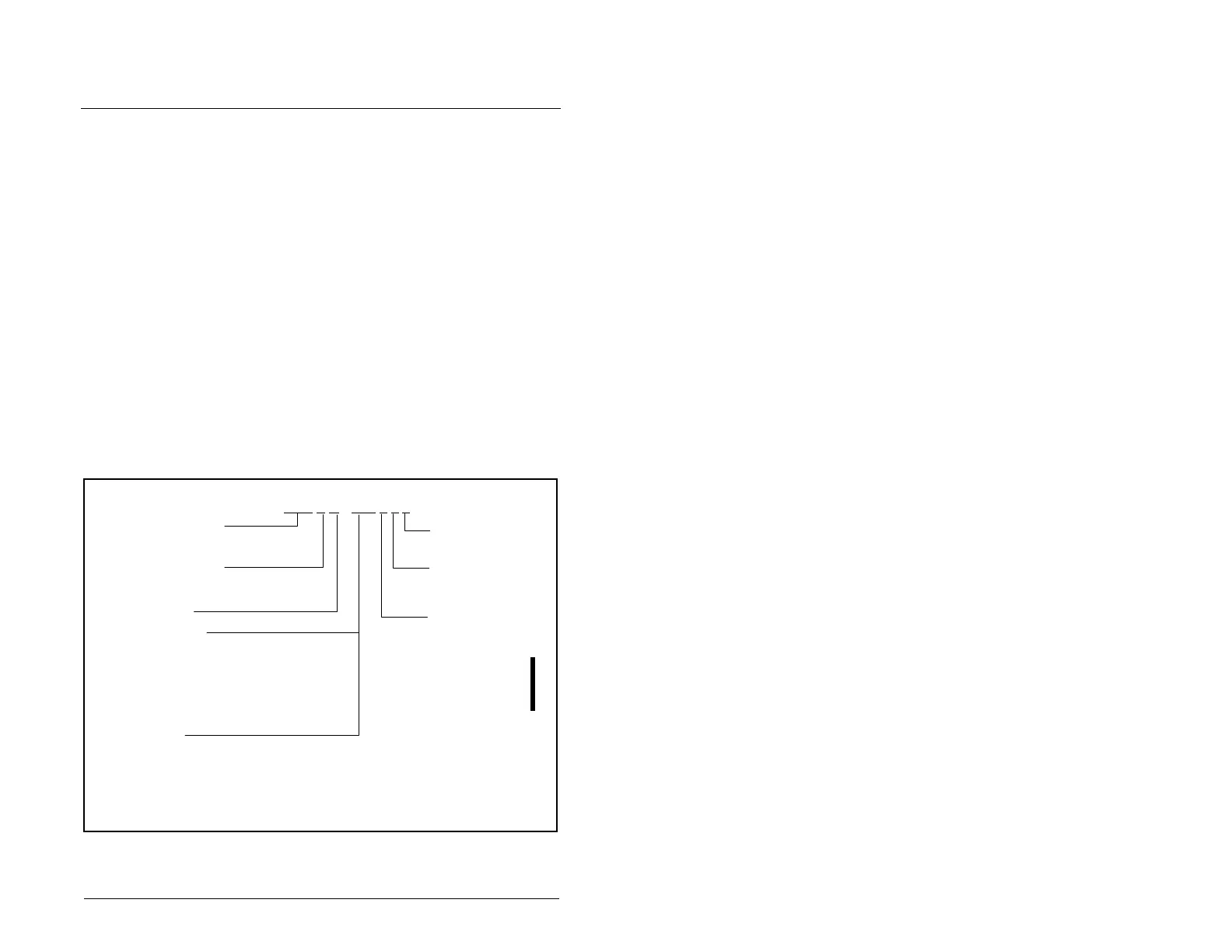

Figure 2.1 – Identifying the Drive by Model Number
Reserved
6MD V N - 1P5 1 1 1
6MD = MD60 Drive
@115V / 230 VAC
1P5 = 1.5 A, 0.25 HP
2P3 = 2.3 A, 0.5 HP
4P5 = 4.5 A, 1 HP
6P0 = 6.0 A, 1.5 HP
8P0 = 8 A, 2 HP
012 = 12 A, 3 HP
017 = 17.5 A, 5 HP
@460 VAC
1P4 = 1.4 A, 0.5 HP
2P3 = 2.3 A, 1 HP
4P0 = 4 A, 2 HP
6P0 = 6 A, 3 HP
8P7 = 8.7 A, 5 HP
A = 1-Phase, 240 VAC
V = 1-Phase, 120 VAC
B = 3-Phase, 240 VAC
D = 3-Phase, 460VAC
N = IP20 (Open)
0 = Not Filtered
1 = Internal Filter
Reserved
