Rockwell Automation MD60 User Manual

Installing Control Wiring 6-5
6.4.1 I/O Wiring Examples
Input/Output Connection Example
Potentiometer
1-10k Ohm Pot.
Recommended
(2 watt minimum)
P038 (Speed Reference) = 2 “0-10V Input”
Analog Input
0 to +10V, 100k ohm
impedance
4-20 mA, 100 ohm
impedance
Voltage
P038 (Speed Reference) = 2
“0-10V Input”
Current
P038 (Speed Reference) = 3
“4-20mA Input”
2 Wire SRC Control
Non-Reversing
P036 (Start Source) = 2, 3 or
4
Input must be active for the
drive to run. When input is
opened, the drive will stop as
specified by P037 (Stop
Mode).
If desired, a User Supplied
24 V DC power source can
be used. Refer to the
“External Supply (SRC)”
example.
Internal Supply (SRC) External Supply (SRC)
2 Wire SNK Control Non-
Reversing
Internal Supply (SNK)

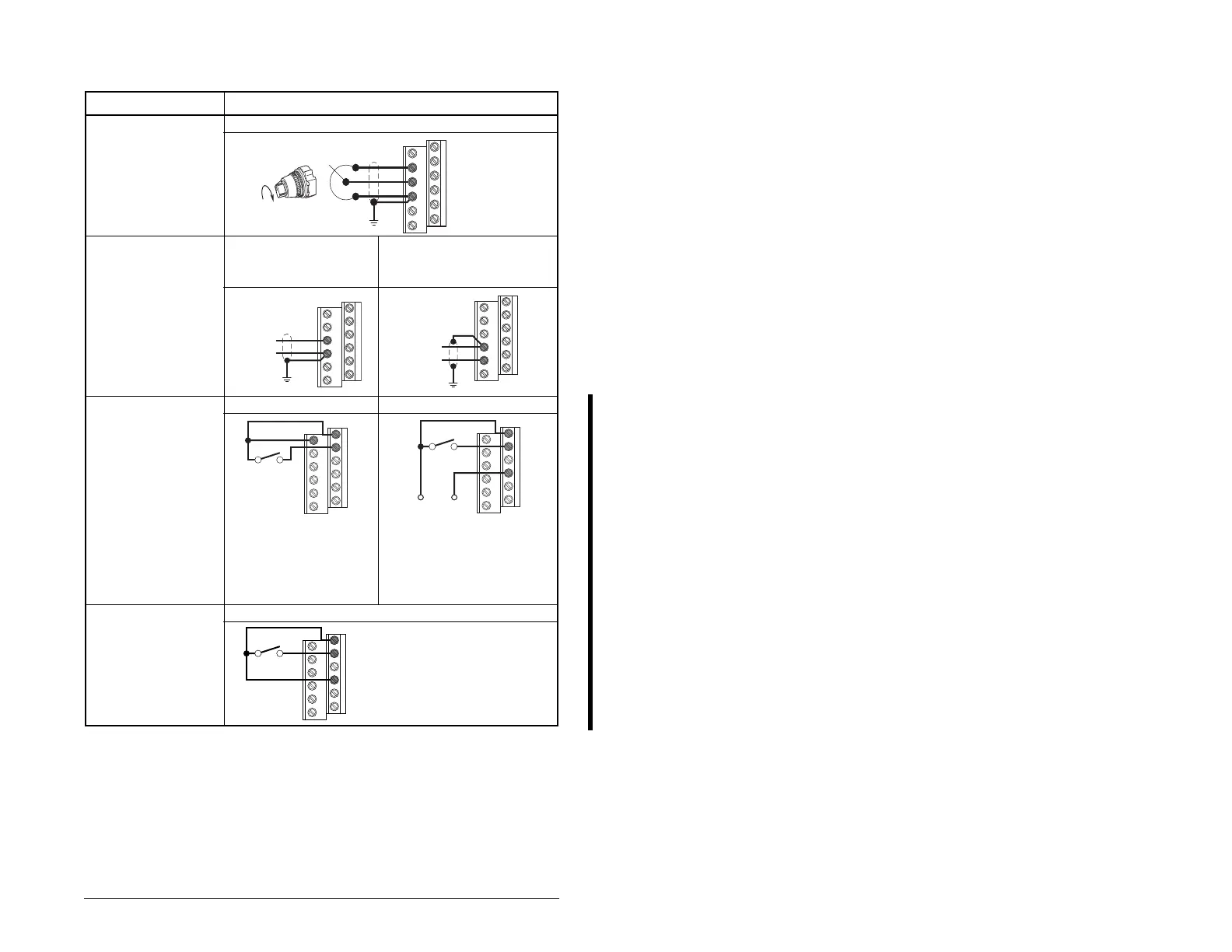

Figure 6.2 – I/O Wiring Examples
12
13
14
13
14
+
Common
14
15
Common
+
11
01
02
Stop-Run
+24V Common
01
02
04
Stop-Run
01
02
04
Stop-Run
