Using the Integral Keypad to Program and Control the Drive 8-5
8.4 Viewing and Adjusting Basic (P) and
Advanced (A) Parameters
Use the following procedure to view and adjust the Basic and
Advanced parameters.
To adjust additional parameters, repeat steps 2 through 7.
To exit a parameter without saving the value, press instead of
.

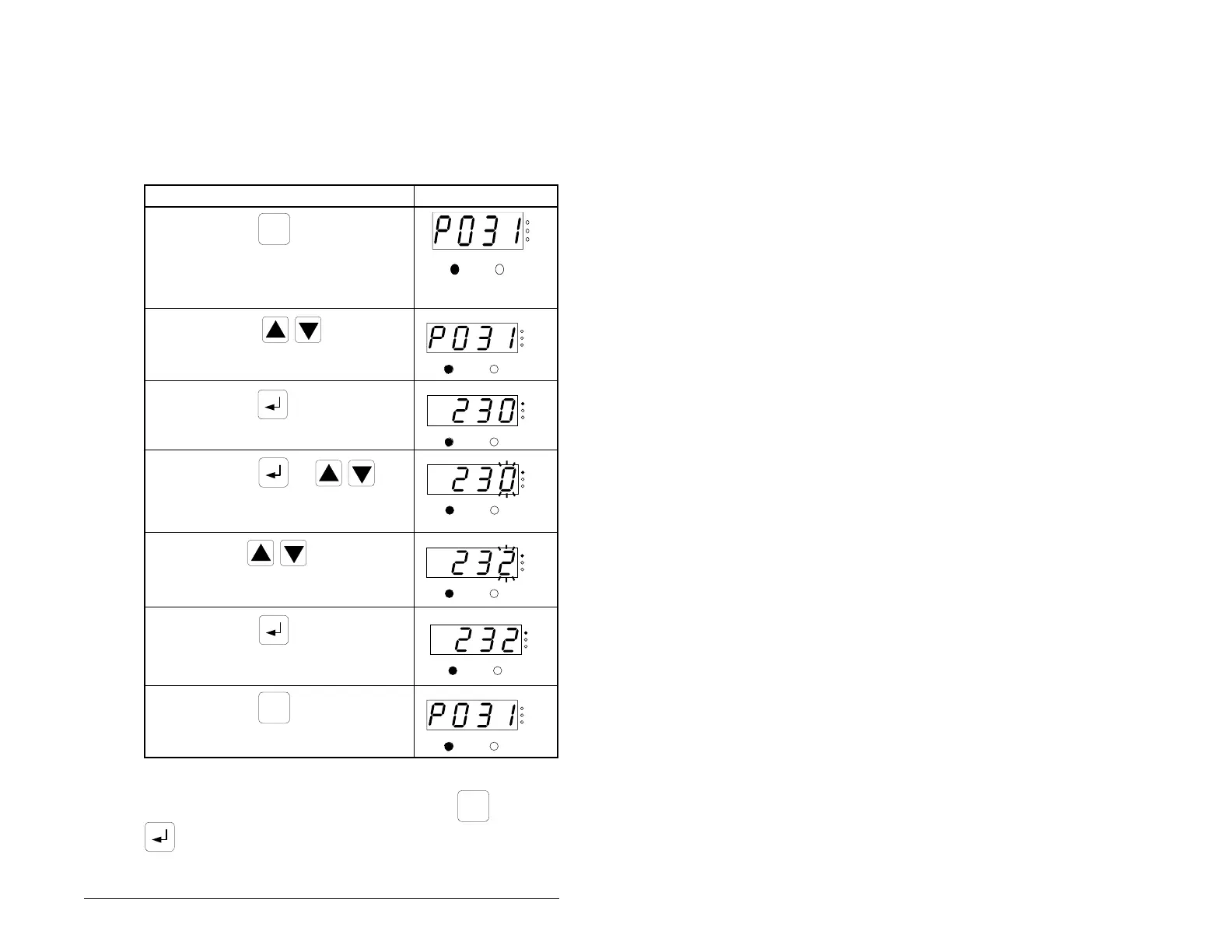

Table 8.3 – Viewing and Adjusting Basic (P) and Advanced (A) Parameters
Procedure Sample Display
Step 1. Press until the desired
parameter group is displayed.
The PROGRAM LED will turn
on to indicate the drive is in
program mode.
Step 2. Press to scroll
through the parameters in the
selected parameter group.
Step 3. Press to view the value
of the displayed parameter.
Step 4. Press or .
The adjustable value will flash
on the display.
Step 5. Use to adjust the
value.
Step 6. Press to accept the
value. The value stops
flashing.
Step 7. Press to return to the
parameter number.
PROG
VOLTS
AMPS
HERTZ
FAULTPROGRAM
VOLTS
AMPS
HERTZ
FAULTPROGRAM
VOLTS
AMPS
HERTZ
FAULTPROGRAM
VOLTS
AMPS
HERTZ
FAULTPROGRAM
VOLTS
AMPS
HERTZ
FAULTPROGRAM
VOLTS
AMPS
HERTZ
FAULTPROGRAM
PROG
VOLTS
AMPS
HERTZ
FAULTPROGRAM
PROG
