Rockwell Automation PanelView Plus 1000 User Manual

Publication 2711P-UM001I-EN-P - December 2008 145
Install and Replace Components Chapter 6

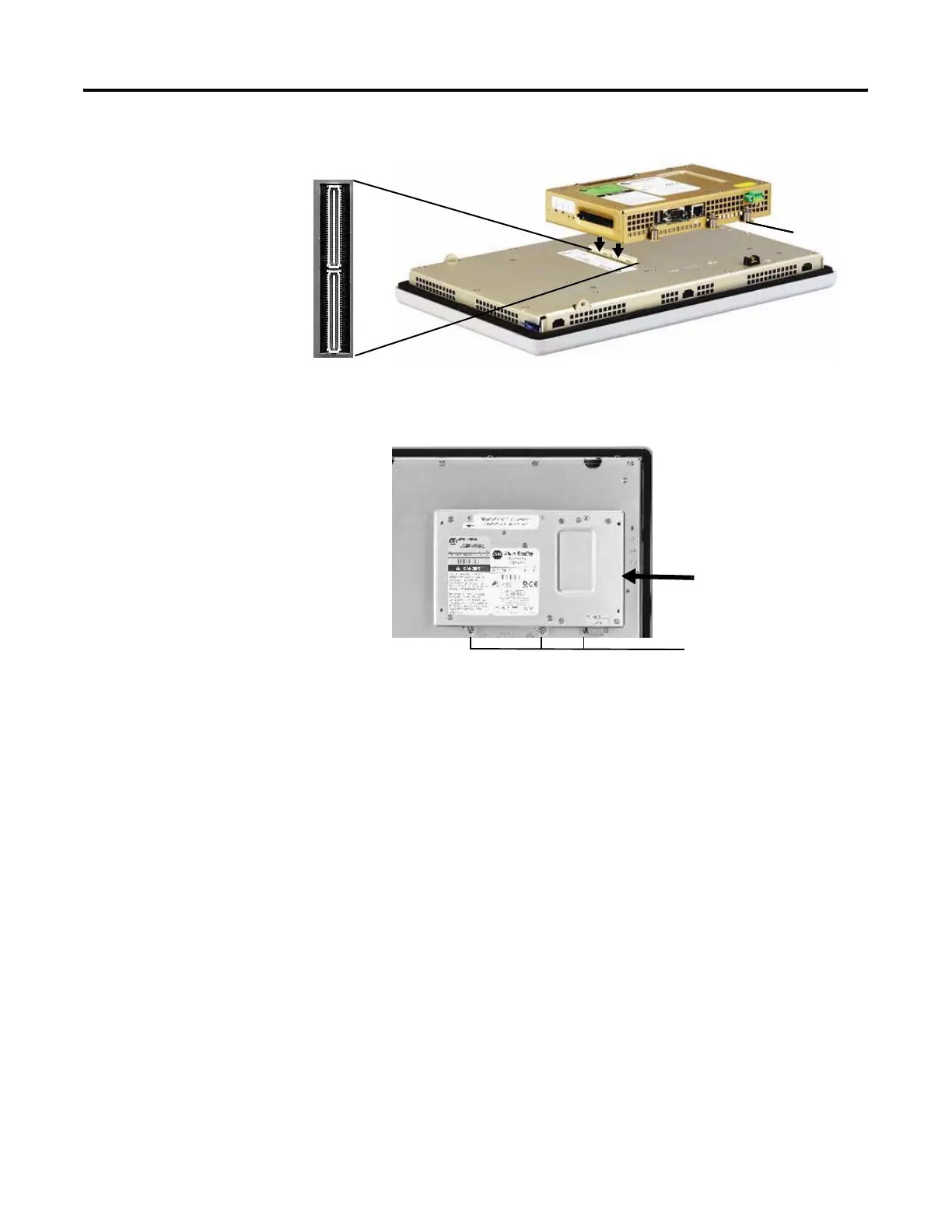

4. Push down on the logic module until firmly seated.
5. Tighten the six captive screws that secure the logic module to
the display module to a torque of 0.58 Nm
(5…7 lb•in).
Captive
Screw
Logic Module
Captive screws
on top and bottom.
