Roland V-4EX User Manual

16

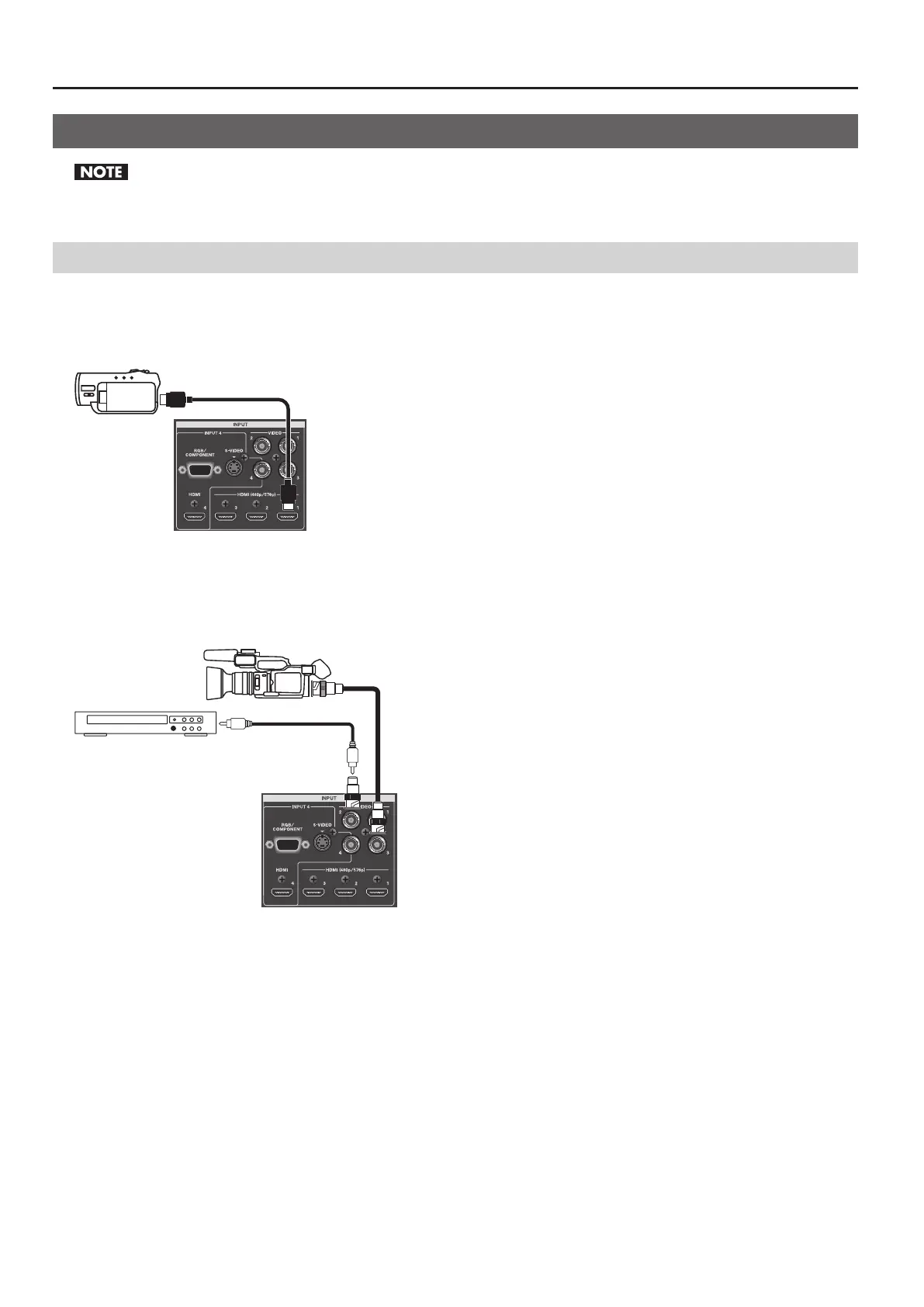

Connecting External Equipment
Connecting Source Equipment
Regardless of the input resolution of the source device, internal processing by the V-4EX is carried out at 480p (when set to NTSC) or 576p (when set
to PAL).
Connecting Video Source Equipment
Making HDMI Connections
Connect video cameras or other devices capable of HDMI output to the [HDMI] connector at INPUT 1 through 4.
g.HDMI-connection.eps
Making Composite Connections
Connect video cameras, DVD players, or other devices capable of composite output to the [VIDEO] connectors at INPUT 1 through 4.
* When connecting equipment that has RCA pin type output connectors, use the included RCA-BNC conversion plug.
g.composite-connection.eps
To connect composite source equipment, the enabled connector must be switched from [HDMI] to [VIDEO]. Refer to the following
“Switching the Enabled Connector” and change the setting.
Making S-Video Connections
You can make an S-Video connection at INPUT 4 only. In the same way as for a composite connection, when making an S-Video
connection, the enabled connector must be switched from [HDMI] to [S-VIDEO]. Refer to the following “Switching the Enabled
Connector” and change the setting.

Roland V-4EX Specifications

General

On/off switch	Yes
Product color	Black
Rack mounting	No
Output current	2 A
Power source type	AC
Video resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 pixels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
BNC input ports	4
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
Display type	LCD
Display resolution	320 x 240 pixels

Weight and Dimensions

Depth	296 mm
Width	225 mm
Height	105 mm
Weight	2600 g
