Roland V-4EX User Manual

27

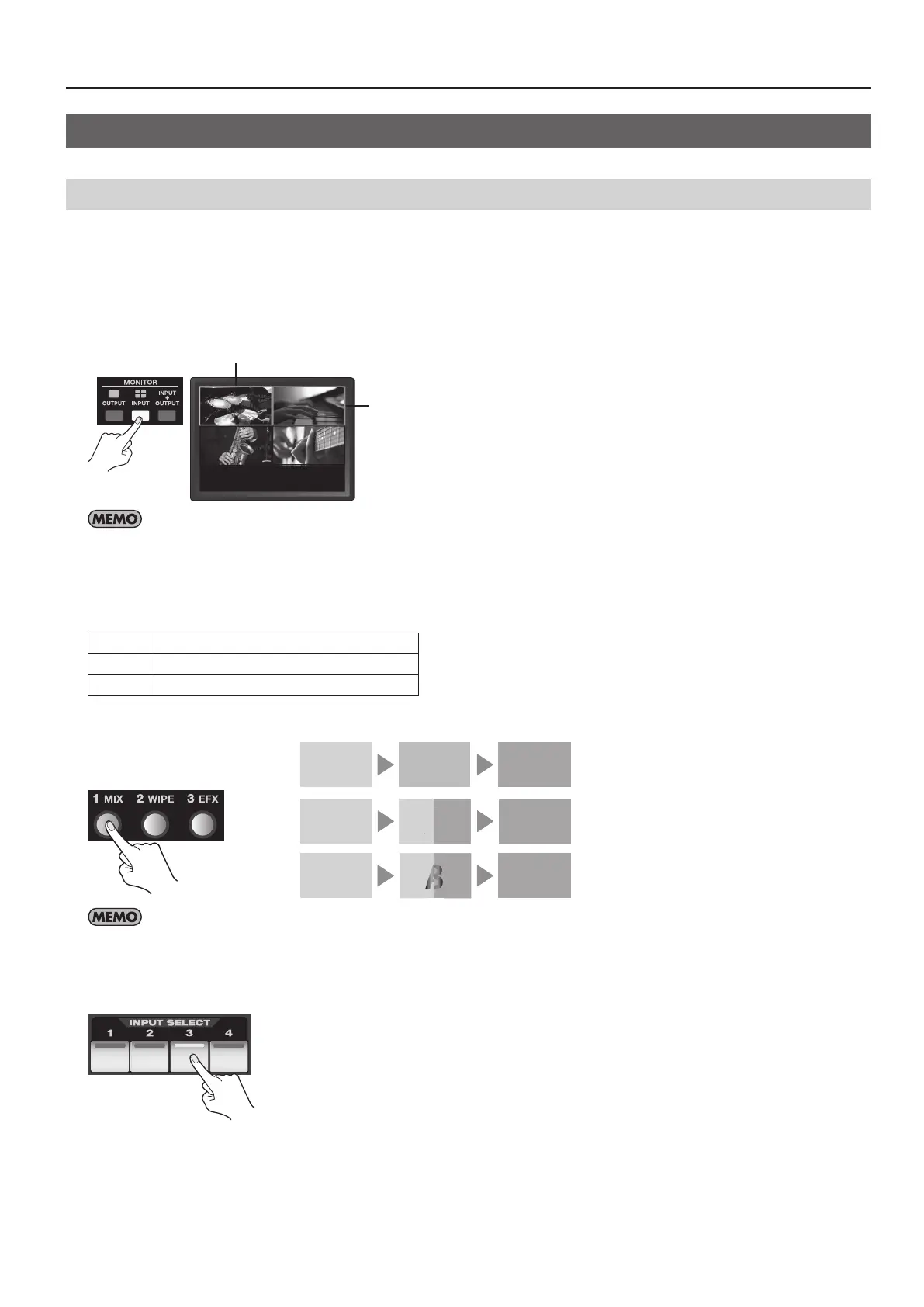

Basic Operations
Switching the Video
Switching the Picture Using the Video Fader
1. Check which channels are currently selected.
Before you carry out a transition operation, check which channels are currently selected. At powerup of the V-4EX, channel 1 is
selected for the A-Bus input selectors, and channel 2 is selected for the B-Bus input selectors. The bus corresponding to the end
to which the video fader has been moved is output, and when the built-in monitor is in the INPUT mode, a red border is displayed
around the output picture. A green border is displayed around the picture on the opposite bus (the standby video).
g.current-output.eps
Red
Green
When the pictures on A and B are output simultaneously, such as during the application of a transition eect or a compositing eect, red borders
are displayed around both pictures.
2. Select a transition eect.
Use the transition eect buttons to select the transition eect you want to apply. By default, you can select from below.
1 MIX The pictures on A and B change gradually.
2 WIPE The pictures on A and B change using a wipe.
3 EFX The pictures on A and B change using a soft wipe.
g.transition-select.eps
MIX
A AB
WIPE
A
A
B
B
B
EFX
A B
StartFinish
Video sources blend together during
the switch process.
Video sources wipe from one to the other
during the switch process.
Video sources wipe (soft edge) from one to
the other during the switch process.
A
B
A
B
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
To assign other transition eects to 1 through 3, press the [TRANSITION] button to access the setup screen.
3. Select the channel on the opposite bus.
On the opposite bus, select the channel you want to output next. The indicator for the selected channel lights up green.
g.select-next-ch.eps

Roland V-4EX Specifications

General

On/off switch	Yes
Product color	Black
Rack mounting	No
Output current	2 A
Power source type	AC
Video resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 pixels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
BNC input ports	4
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
Display type	LCD
Display resolution	320 x 240 pixels

Weight and Dimensions

Depth	296 mm
Width	225 mm
Height	105 mm
Weight	2600 g
