Roland V-4EX User Manual

25
g.caution.eps
Using this unit makes it possible to create video transitions that occur at extremely high speeds. Depending on physical condition,
viewing such video might cause headache or discomfort. Never use this unit to create or present such video that might be
distressful to health. Roland assumes no responsibility in the event of any distress experienced by you or other viewers.

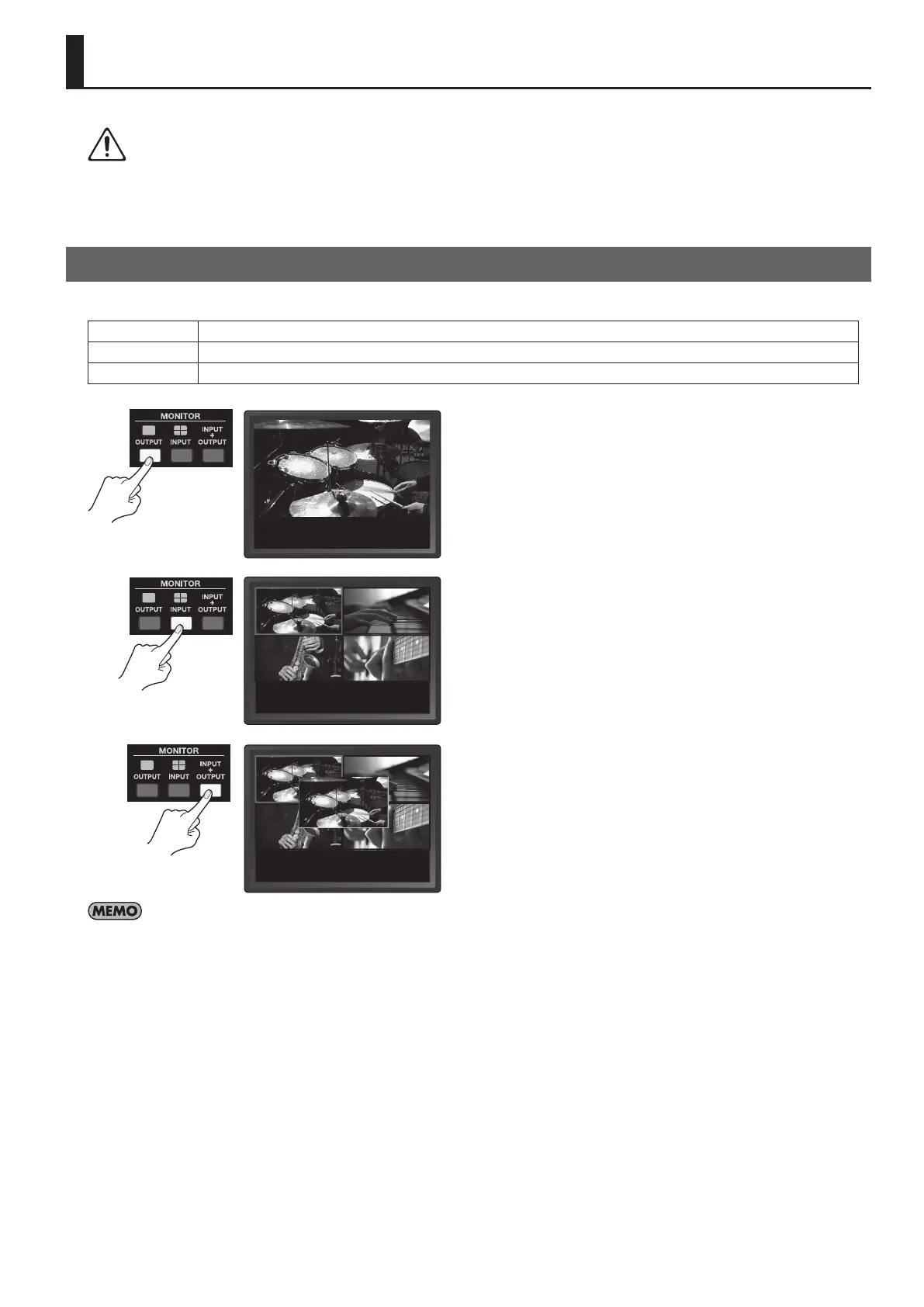

Switching the Monitor View Mode
The V-4EX’s built-in monitor has the following three types of view modes. Use the MONITOR buttons to change the mode.
OUTPUT This displays the current video output from the V-4EX on a single screen.
INPUT This displays video input from source equipment on a four-way split screen.
INPUT + OUTPUT This displays the current video output by overlaying it on a four-way split screen displaying the input from source equipment.
g.monitor-mode.eps
You can select either 16:9 or 4:3 as the aspect ratio for video displayed on the monitor. Go to the SETUP menu (p. 43) and select [LCD PREVIEW ASPECT].
Basic Operations

Roland V-4EX Specifications

General

On/off switch	Yes
Product color	Black
Rack mounting	No
Output current	2 A
Power source type	AC
Video resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 pixels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
BNC input ports	4
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
Display type	LCD
Display resolution	320 x 240 pixels

Weight and Dimensions

Depth	296 mm
Width	225 mm
Height	105 mm
Weight	2600 g
