Rotax 912 i series Service Manual

BRP-Rotax
MAINTENANCE MANUAL LINE
BELT TENSION ADJUSTMENT
00353
2
1
3

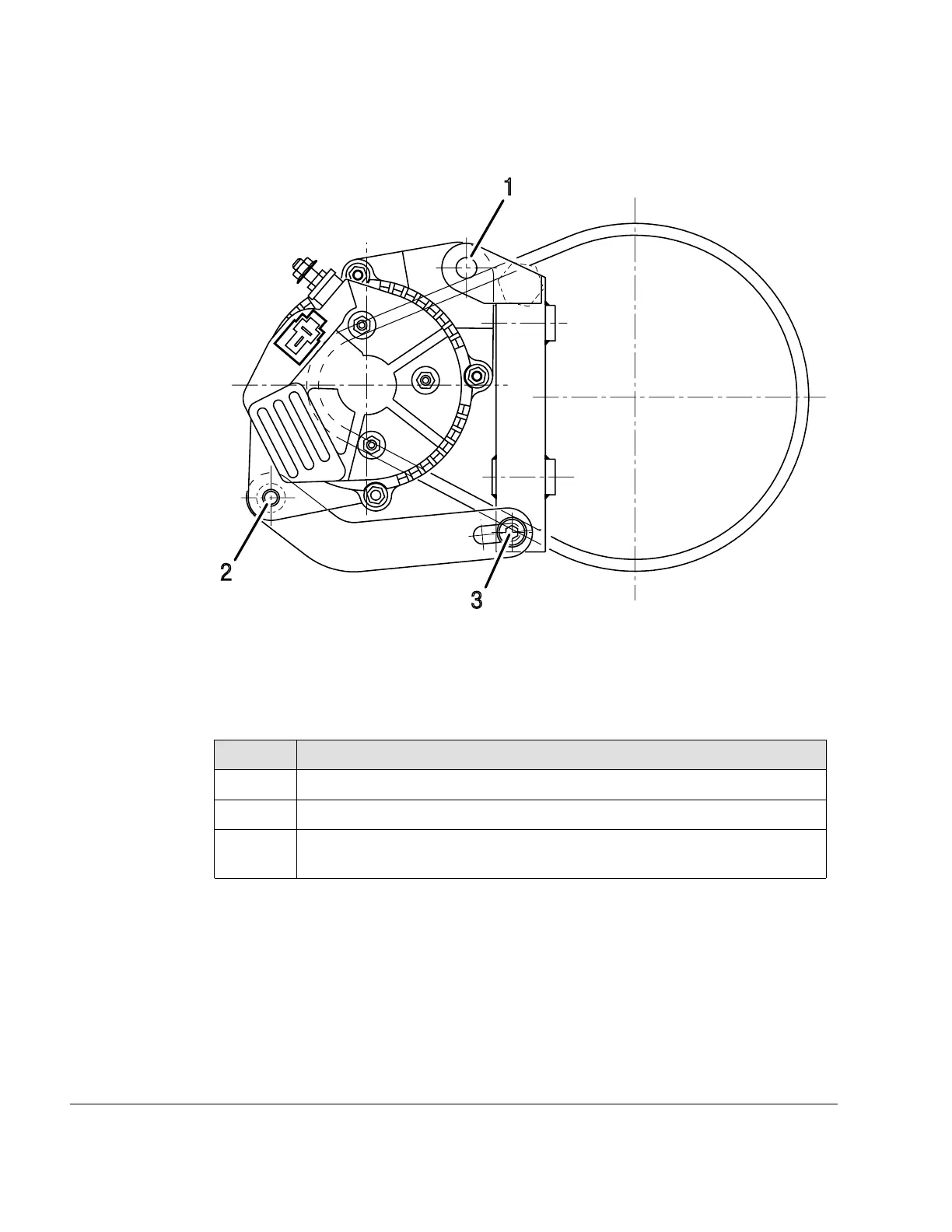

Figure 7.8: Overview
1 Hex. screw M10
2, 3
Allen screw M8
Belt tension To adjust the belt tension:
Step
Procedure
1
Loosen the hex. screw (1) M10 and the two M8 allen screw (2) and (3).
2
Press the alternator upwards and tighten allen screw (3).
3 Then tighten hex. screw (1) M10 with tightening torque 40 Nm (30 ft.lb) and
allen screw M8 (2) with tightening torque 22 Nm (16 ft.lb).
12–20–00
Page 18
September 01/2018
Effectivity: 912 i Series
Edition 2/Rev. 0
