Rotax 912 i series Service Manual

BRP-Rotax
MAINTENANCE MANUAL LINE
ELECTRIC SYSTEM

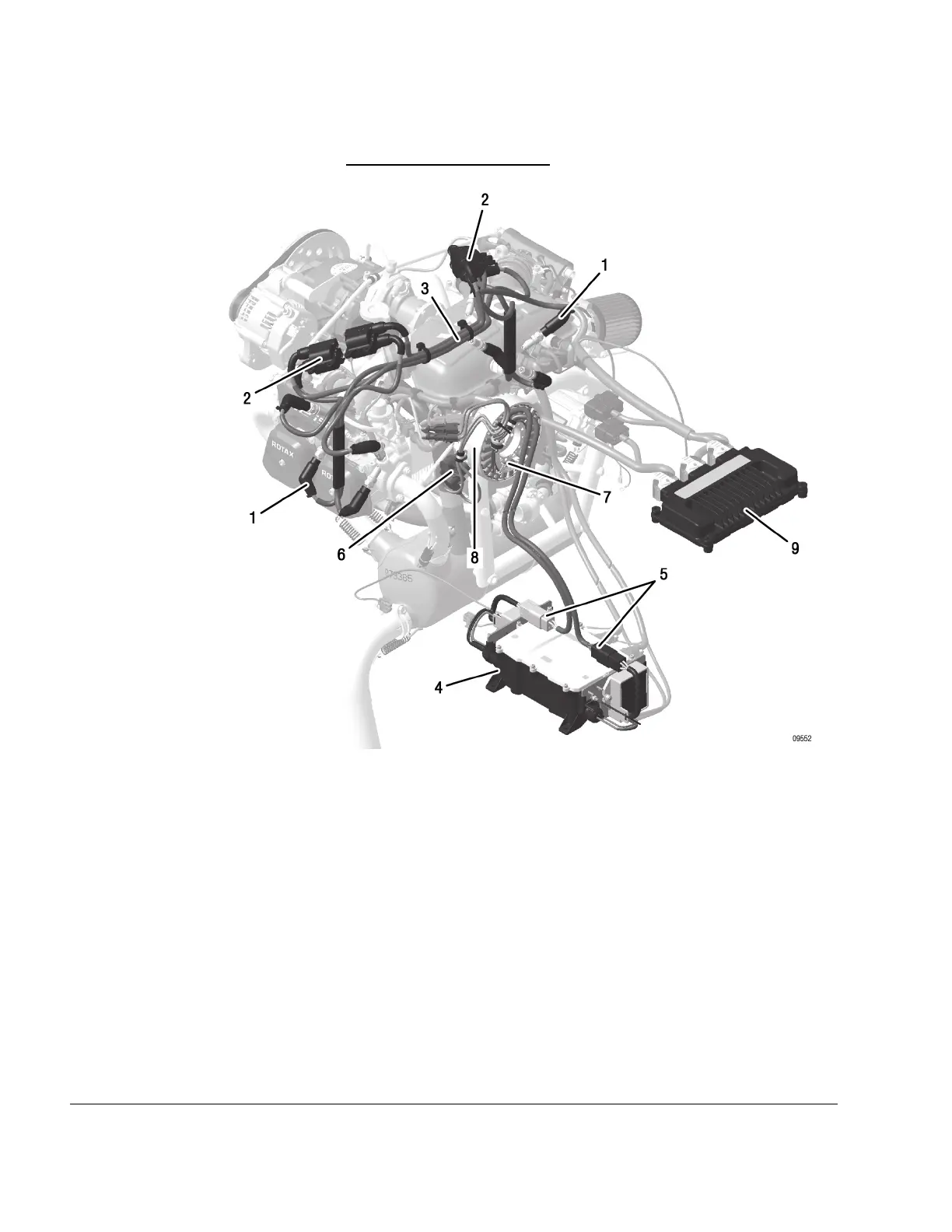

Figure 7.26: Overview
1
Spark plug connectors
2
Double ignition coils
3
Ignition cable
4 FUSE BOX
5
Plug connectors
6
Crankshaft position sensors
7 Stator 8
Stator assy.
9 ECU
12–20–00
Page 46
September 01/2018
Effectivity: 912 i Series
Edition 2/Rev. 0
