Sanyo PLC-SW30 User Manual

17
The projector can be adjusted or set via the On-Screen Menu.
Refer to the following pages regarding each adjustment and
setting procedure.
Press Point 7 8 buttons to select a Menu icon to adjust.
Press Point ed buttons to select an item to adjust.
Press SELECT button to show the item data. Press Point 7 8
buttons to adjust the data. Refer to the following pages for
respective adjustment.

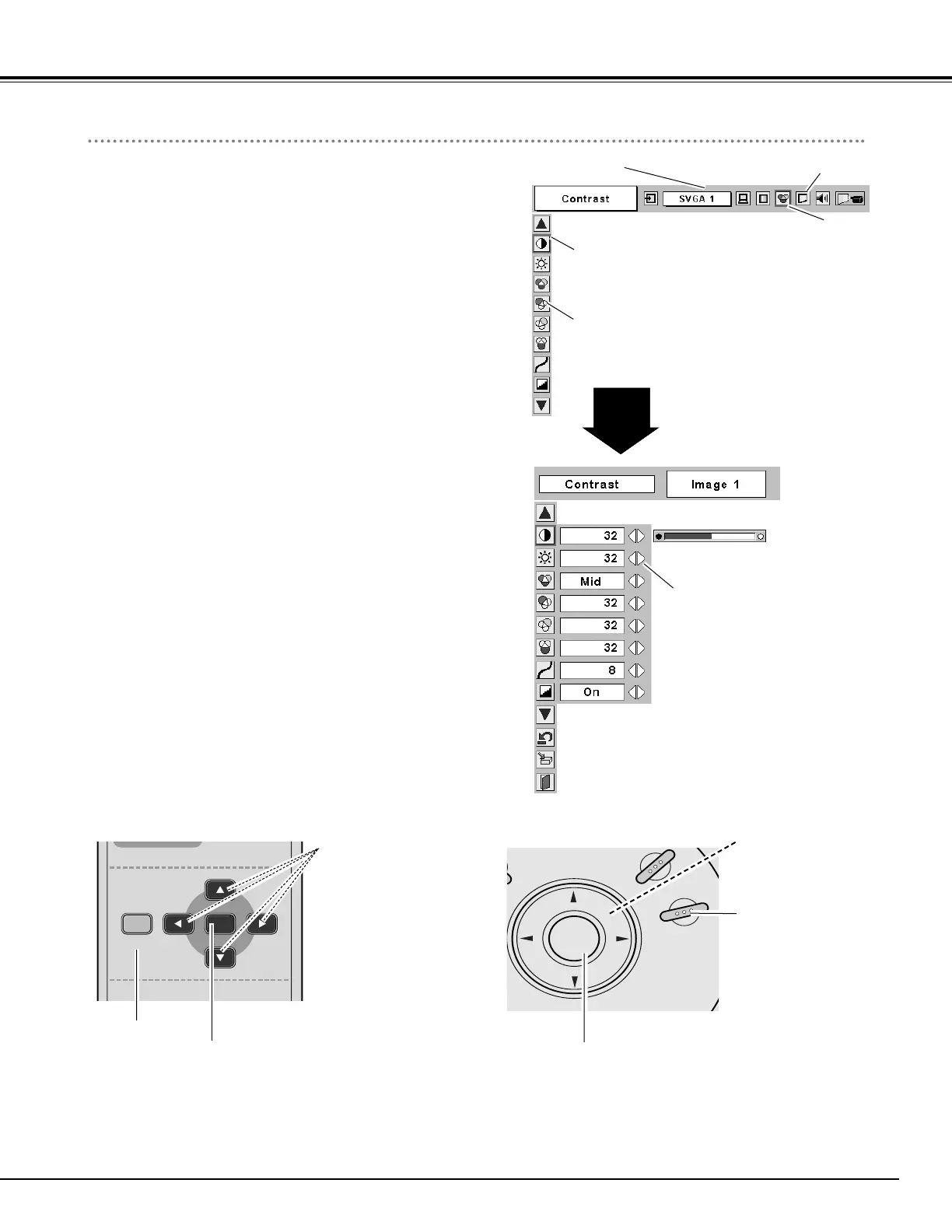

How to Operate the On-Screen Menu
INPUT
MENU
SELECT
V
O
L
U
M
E
–
V
O
L
U
M
E
+
Used to select the item.
SELECT button
Used to move the
Pointer up/ down /
right / left.
Point buttons
Top Control
Menu bar
Pointer
(red frame)
Menu icon
Item data
Press Point
78buttons
to adjust value or set
function.
SELECT
button
Press MENU button to display the On-Screen Menu.
Item
P
-
TIMER
FREEZE
COMPUTER VIDEO
PAGE
SELECT
D.ZOOM
MUTE
VOLUME
-
MENU
MENU
NO SHOW
VOLUME
+
KEYSTONE
AUTO PC
ON
-
OFF
CXPK
Used to select the item.
SELECT button
Used to move the
Pointer
up/ down /
right / left.
Point button
Remote Control
MENU button
MENU button
Note:
The selected item is not in effective until SELECT button is pressed.
Before Operation
1
2
3
Pointer (red frame)
Press Point
dd
button to move
the pointer.

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
