Sanyo PLC-SW30 User Manual

39
P
-
TIME R NO SHOW FREEZE
VIDEO
COMPUTER
OMPUTER
CXPW
L-CLICK R-CLICK
PAGE
q PAGE ▲▼ buttons
Scroll back and forth pages on the screen when giving presentations.
Installation

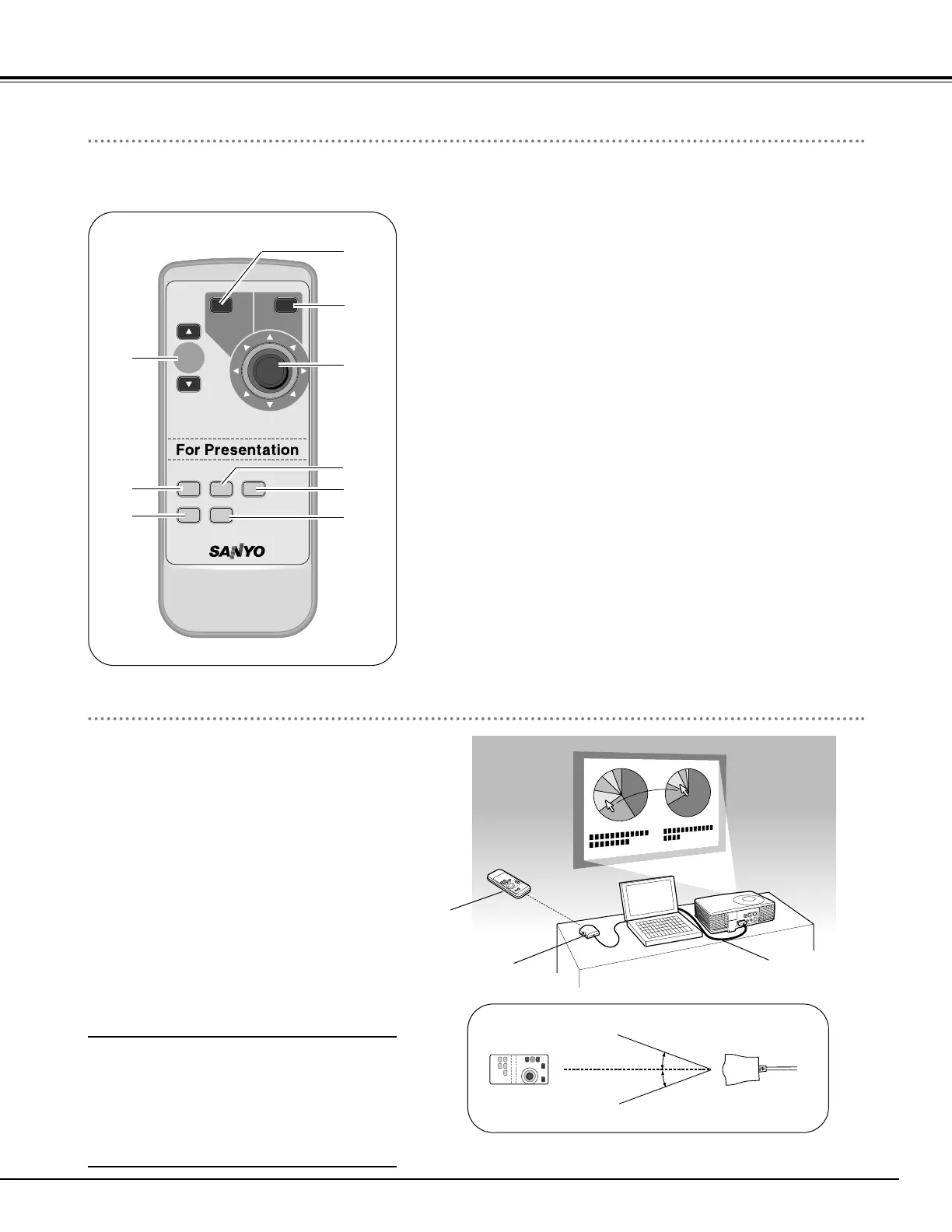

Connect the Projector and your computer
with the VGA cable.
q
r
w
y
t
u
i
o
e
For computer
Aim the remote control at the Presentation Remote receiver.
w Cursor button
Scroll back and forth pages on the screen when giving a presentation.
e R-CLICK button
Acts as the right button on a computer mouse.
r L-CLICK button
Acts as the left button on a computer mouse.
To drag a selected item, press and hold the L-CLICK button and
move the cursor with the Cursor button.
For projector
Aim the remote control at the IR receiver of the projector.
t FREEZE button
Freezes the picture. ( ☞ P20 )
y COMPUTER button
Selects COMPUTER input source. ( ☞ P22 )
u VIDEO button
Selects VIDEO input source. ( ☞ P30 )
i P-TIMER button
Operates the P-timer function. ( ☞ P21 )
o NO SHOW button
Temporarily turns off the image on the screen. ( ☞ P21 )
30°
30°
Presentation Remote Control performs the function of a wireless mouse to control the mouse cursor on the computer. For
convenience while giving presentations, some buttons controlling the projector are also provided.
Connect the Presentation Remote Receiver
to the USB port of your computer.
1
2
Compatible computers
Windows
• Windows 98 / 2000/ Me / XP
✽ Compatible with only full versions of Windows.
(Upgraded version cannot be used.)
Macintosh
• Mac OS 9.1 or later.
VGA cable
Presentation
Remote Receiver
Presentation
Remote Control
16.4’(5 m)
Note :
– The Presentation Remote Receiver can only be
connected with a standard USB port..
– Some computer settings may have to be changed
in order for the mouse function to be used. Refer to
your computer's owner's manual for details.
– When switching the remote control code of the
projector and the remote control, that of the
presentation remote control also needs to be
switched. Press and hold both the FREEZE and P-
TIMER buttons together for 10 seconds or more to
switch the code. ( ☞ P38 )
Presentation Remote Control
Using the Presentation Remote Control

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
