Sanyo PLC-SW30 User Manual

29
Computer Input

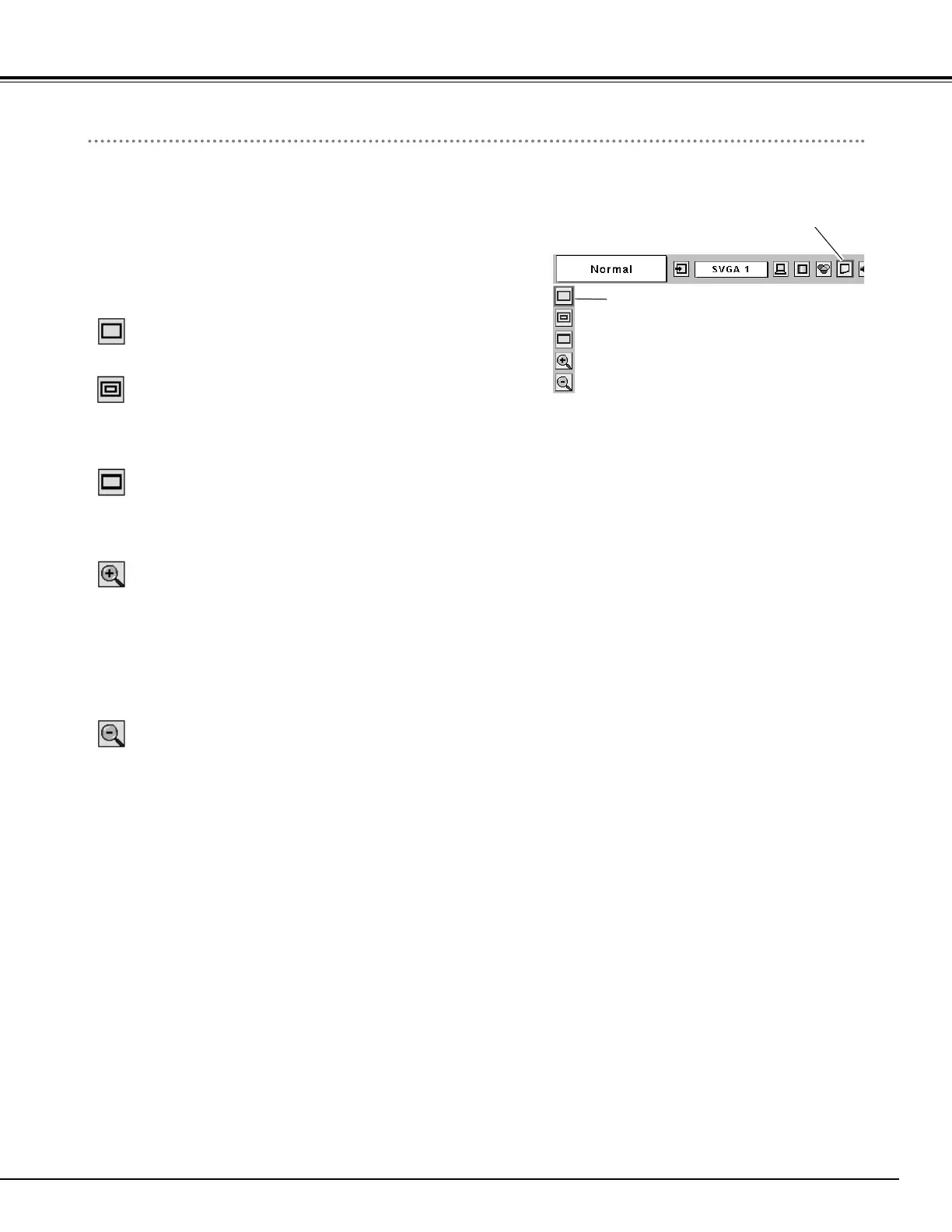

Screen Size Adjustment
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press MENU button to display the On-Screen Menu. Press
Point
7 8 buttons to move the red frame pointer to Screen
Menu icon.
When Digital zoom + is selected, the On-Screen Menu disappears
and the message “D. Zoom +” is displayed. Press SELECT button
to expand image size. And press Point
ed7 8 buttons to pan the
image. The panning function can work only when the image is larger
than screen size.
A projected image can be also expanded by pressing D.ZOOM
e
button on the remote control.
1
To cancel Digital Zoom +/– mode, press any button except D.ZOOM
ed, SELECT and Point buttons.
Move the red frame to the function
and press SELECT button.
Press Point d button to move the red frame pointer to the
function that you want to select. Then press SELECT button.
2
Wide
Digital zoom +
Note:
– This Screen Menu cannot be operated when
“720p (HDTV)”, “1035i (HDTV)” or “1080i
(HDTV)” is selected on PC System Menu. (
☞ P23 ).
–True and Digital zoom +/– cannot be selected
when “480i ”, " 575i ", " 480p ", " 575p " is
selected on PC System Menu (
☞ P23 ).
– This projector cannot display any resolution
higher than 1280 X 1024. If your computer’s
screen resolution is higher than 1280 X 1024,
reset the resolution to the lower before
connecting projector.
– The image data in other than SVGA (800 x 600)
is modified to fit the screen size in initial mode.
– The panning function may not operate properly
if the computer system prepared on PC Adjust
Menu is used.
Provides an image to fit screen size.
Normal
True
SCREEN MENU
When Digital zoom – is selected, the On-Screen Menu disappears
and the message “D. Zoom –” is displayed. Press SELECT button
to compress image size.
A projected image can be also compressed by pressing D.ZOOM ▼
button on the remote control.
Digital zoom –
Provides image in its original size. When the original image size is
larger than screen size ( 800 x 600 ), this projector enters “Digital
zoom +” mode automatically.
Provides image to fit wide video aspect ratio (16 : 9) by expanding
image width uniformly. This function can be used for providing a
squeezed video signal at 16 : 9.
Screen Menu

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
