Sanyo PLC-SW30 User Manual

31
Video input

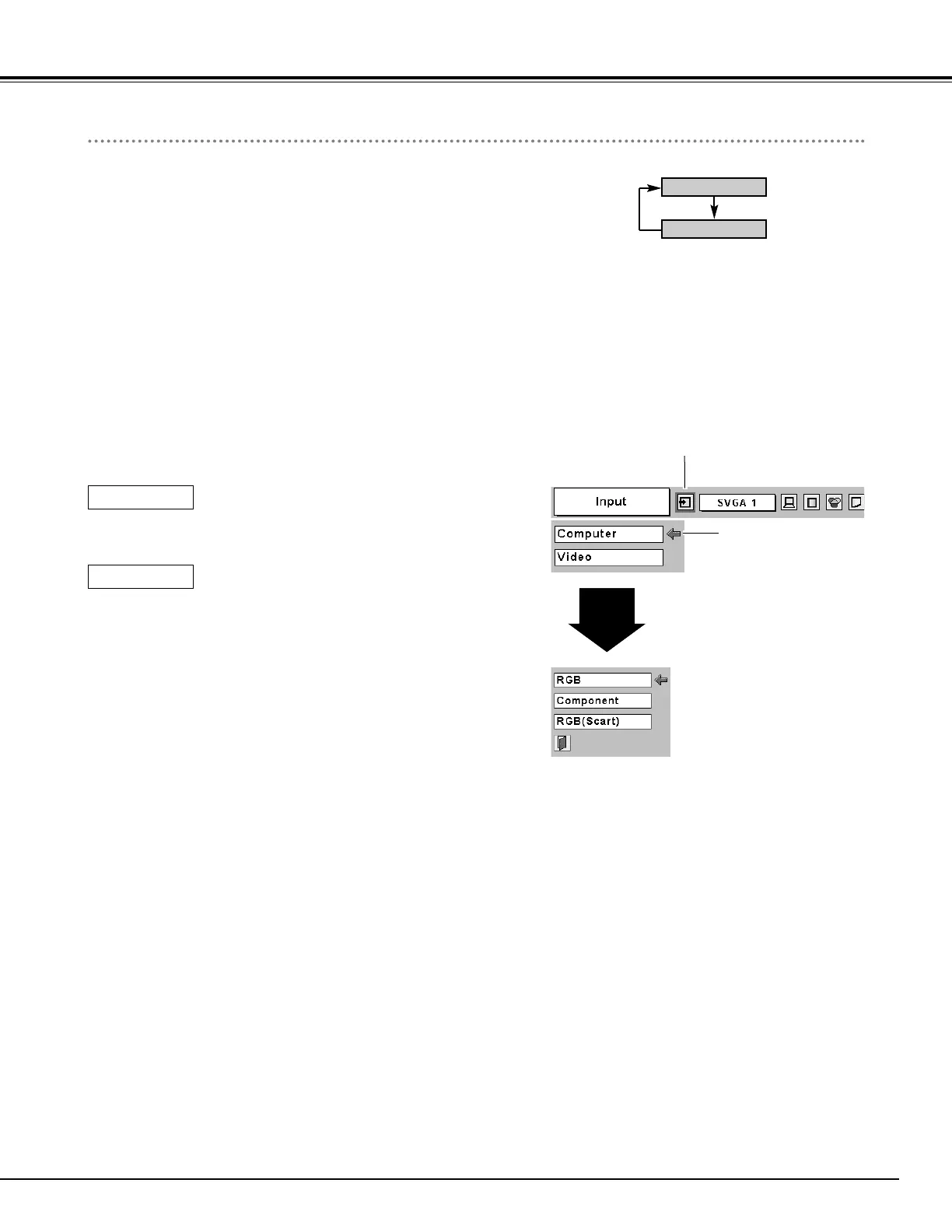

Input Source Selection ( Component, RGB Scart 21-pin )
Menu Operation
Direct Operation
Choose Computer by pressing INPUT button on the top control or
COMPUTER button on the remote control.
Before using these buttons, correct input source should be selected
through menu operation as described below.
Press MENU button to display the On-Screen Menu. Press
Point
7 8 button to move the red frame pointer to INPUT Menu
icon.
Press Point d button to move the red arrow pointer to
Computer and then press SELECT button. The Source Select
Menu will appear.
1
2
INPUT button
Video
Computer
Move the pointer to the source that you want to select and then
press SELECT button.
3
INPUT MENU
Move the pointer (red
arrow) to Computer and
press SELECT button.
Move the pointer to
Component or RGB ( Scart )
and press the SELECT button.
Source Select Menu
When the input source is coming from video
equipment connected to the COMPUTER IN
/COMPONENT IN terminal with a Component-VGA
Cable, select Component.
Component
When the input source is coming from video
equipment connected to the COMPUTER IN
/COMPONENT IN terminal with a Scart-VGA Cable,
select RGB (Scart).
RGB (Scart)
Note :
Component-VGA Cable and Scart-VGA Cable are optionally supplied. See page
51 for order.
Input Menu icon

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
