Basic Operation
Message disappears after 4 seconds.
Press P-Timer button on the remote control. The timer display “00 :
00” appears on the screen and the timer starts to count time (00 : 00
~ 59 : 59).
To stop P-Timer display, press the P-TIMER button. And then, press
P-TIMER button again to cancel P-Timer function.
1
2
Press MENU button to display the On-Screen Menu. Press Point
78buttons to move the red frame pointer to SOUND Menu
icon.
Volume
Press VOLUME (+/–) button on the remote control or on the top
control to adjust volume. The volume dialog box appears on the
screen for a few seconds.
VOLUME (+) button to increase volume, and VOLUME (–) button for
decreasing.
Mute
Press MUTE button on the remote control to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–).
To increase volume, press Point 8 button, and press Point 7 button to
decrease volume.
Press Point 78 buttons to mute sound. Dialog box display is changed
to “On” and sound is muted. To restore sound to its previous level,
press Point
78buttons again.
Press Point d button to move the red frame pointer to the item
that you want to select, and then press SELECT button.
Indicates approximate
level of volume.
Close Sound Menu.

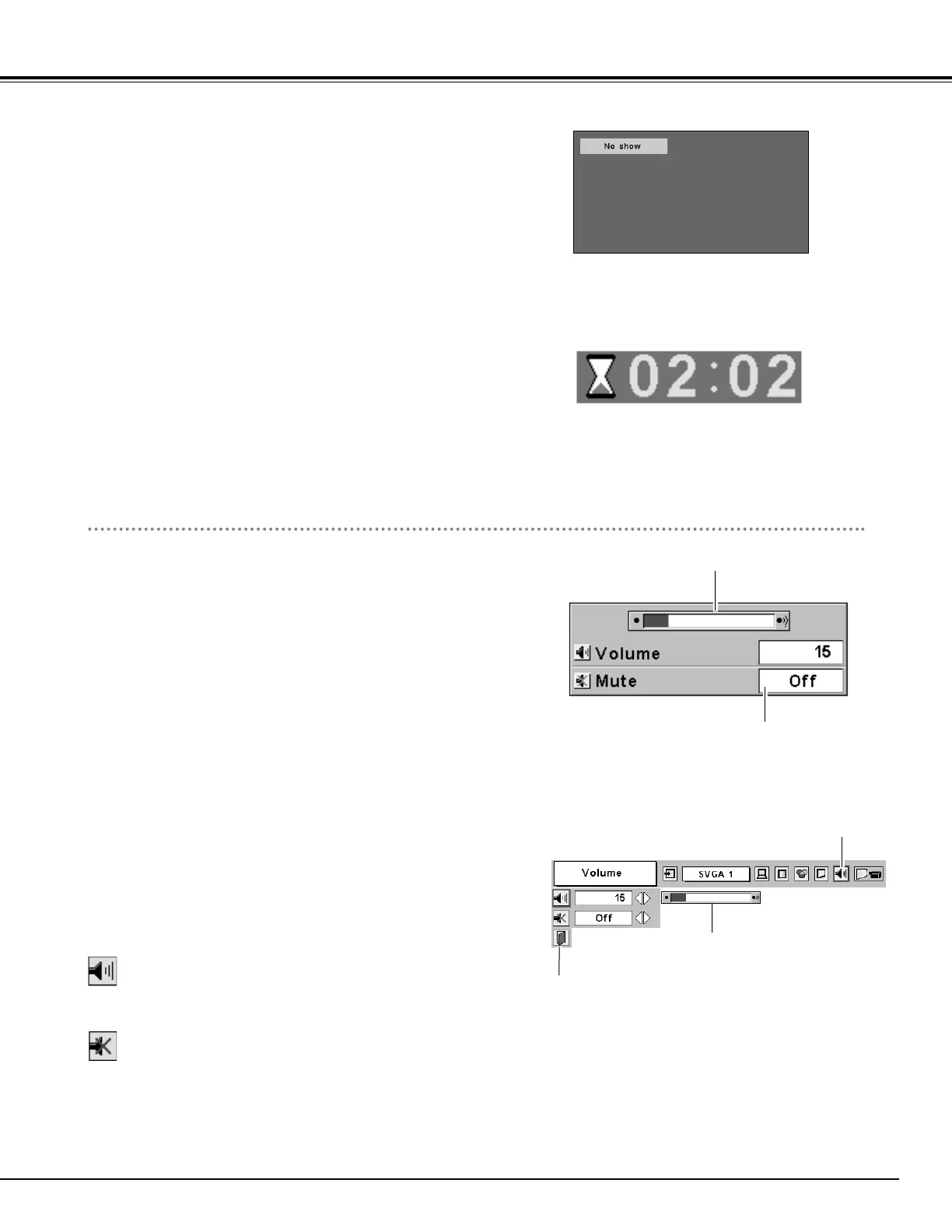

Direct Operation
Menu Operation
Volume
Mute
Indicates approximate
level of volume.
The display disappears after 4 seconds.
SOUND MENU
Sound Menu icon
Sound Adjustment
P-Timer Function
No Show Function
Press MUTE button to set
Mute function On or Off.
Press NO SHOW button on the remote control to black out the image.
To restore to normal, press the NO SHOW button again or press any
other button. When a projected image is captured and set as “User”
in the Logo item in the Setting menu (
☞ P36 ), the screen changes
each time you press the NO SHOW button as follows :
black out ➜ the captured image ➜ normal ➜
......

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
