Press FREEZE button on the remote control to freeze the picture on-
screen. To cancel the freeze function, press FREEZE button again or
press any other button.
Picture Freeze Function

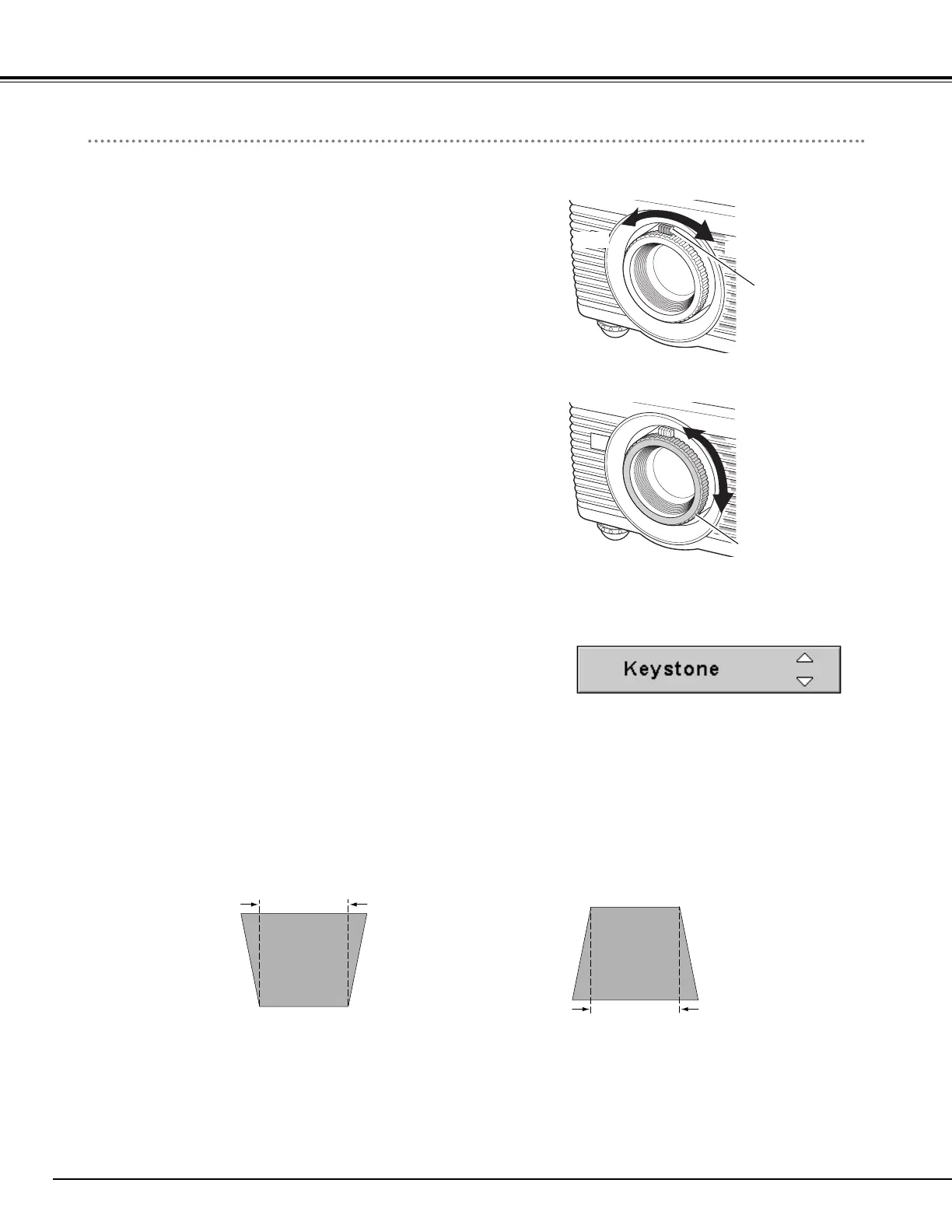

Keystone Adjustment
1
Press KEYSTONE button on the remote control or select
Keystone on the Setting menu (
☞ P36 ) to display the Keystone
dialog box.
2
Correct keystone distortion by pressing Point ed buttons.
Press Point
e button to reduce the upper part of image, and
press Point
d button to reduce the lower part.
Reduce the upper width with Point e button. Reduce the lower width Point d button.
If a projected picture has keystone distortion, correct image with the keystone adjustment.
Basic Operation
Move the Zoom Lever upward / downward to zoom the image.
Rotate the Focus ring to adjust the projected picture focus.
Focus Ring
Tele
Wide
Zoom Lever
– Arrows are white in no correction.
– The arrow of direction being corrected turns
red.
– The arrow disappears at the maximum
correction.
– If you press the KEYSTONE on the remote
control once more while the keystone dialog
box is being displayed, the adjustment will be
canceled.
Focus Adjustment
Zoom Adjustment
Adjusting the Screen

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
