Lamp Replace
When the life of the projection lamp draws to an end, LAMP
REPLACE indicator lights yellow. If this indicator lights yellow,
replace the projection lamp with a new one promptly.
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering a projection lamp, give the following
information to the dealer.
• Model No. of your projector : PLC-SW30
• Replacement Lamp Type No. : POA-LMP57
(Service Parts No. 610 308 3117)
For continued safety, replace with a lamp assembly of
the same type.
Do not drop a lamp assembly or touch a glass bulb! The
glass can shatter and may cause injury.
Allow a projector to cool, for at least 45 minutes before
you open Lamp Cover. The inside of a projector can
become very hot.
POWER
LAMP
REPLACE
WARNING
INPU
TOP CONTROL
CAUTION
Turn off the projector and disconnect AC plug. Allow the
projector to cool at least for 45 minutes.
Remove the two screws with a screwdriver and pull out the
lamp assembly by grasping the handle.
1
3
Replace the lamp assembly with a new one and tighten the two
screws back into the position. Make sure that the lamp
assembly is set properly. Replace the lamp cover and tighten
the screw.
4
To remove the lamp cover, remove the screw with a screwdriver .
2
Connect the AC Power Cord to the projector and turn on the
projector.
6

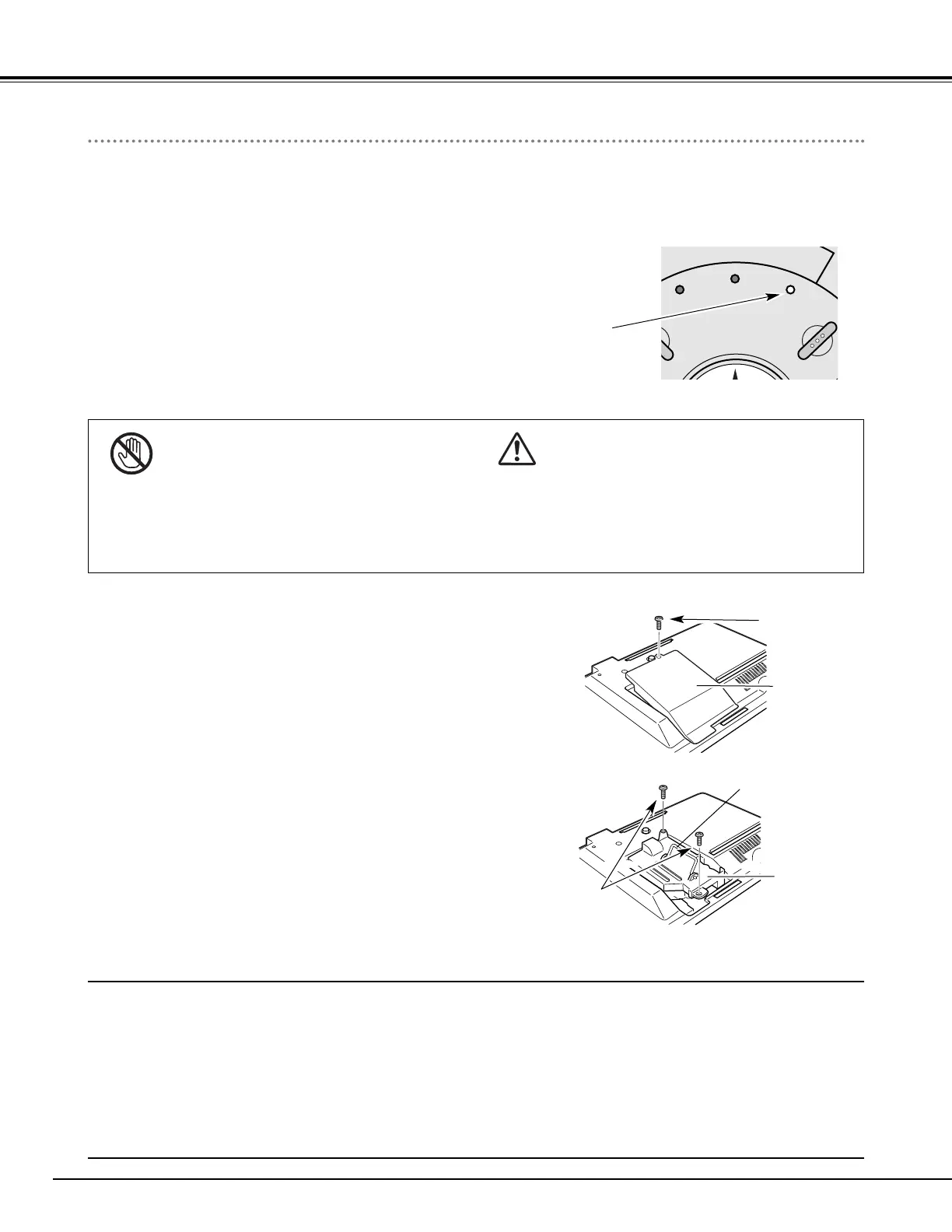

Follow these steps to replace the lamp assembly.
Reset the Lamp Replace Counter.
Refer to “Lamp Replace Counter” on the next page .
5
Lamp Assembly
Handle
Lamp Cover
Note :
Do not reset the Lamp Replace Counter when the projection lamp has not
been replaced.
Screws
Screw
This indicator lights yellow when the
life of the projection lamp draws to an
end.
Lamp Replacement
Maintenance

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
