1-287
1-4. Dimensional Data

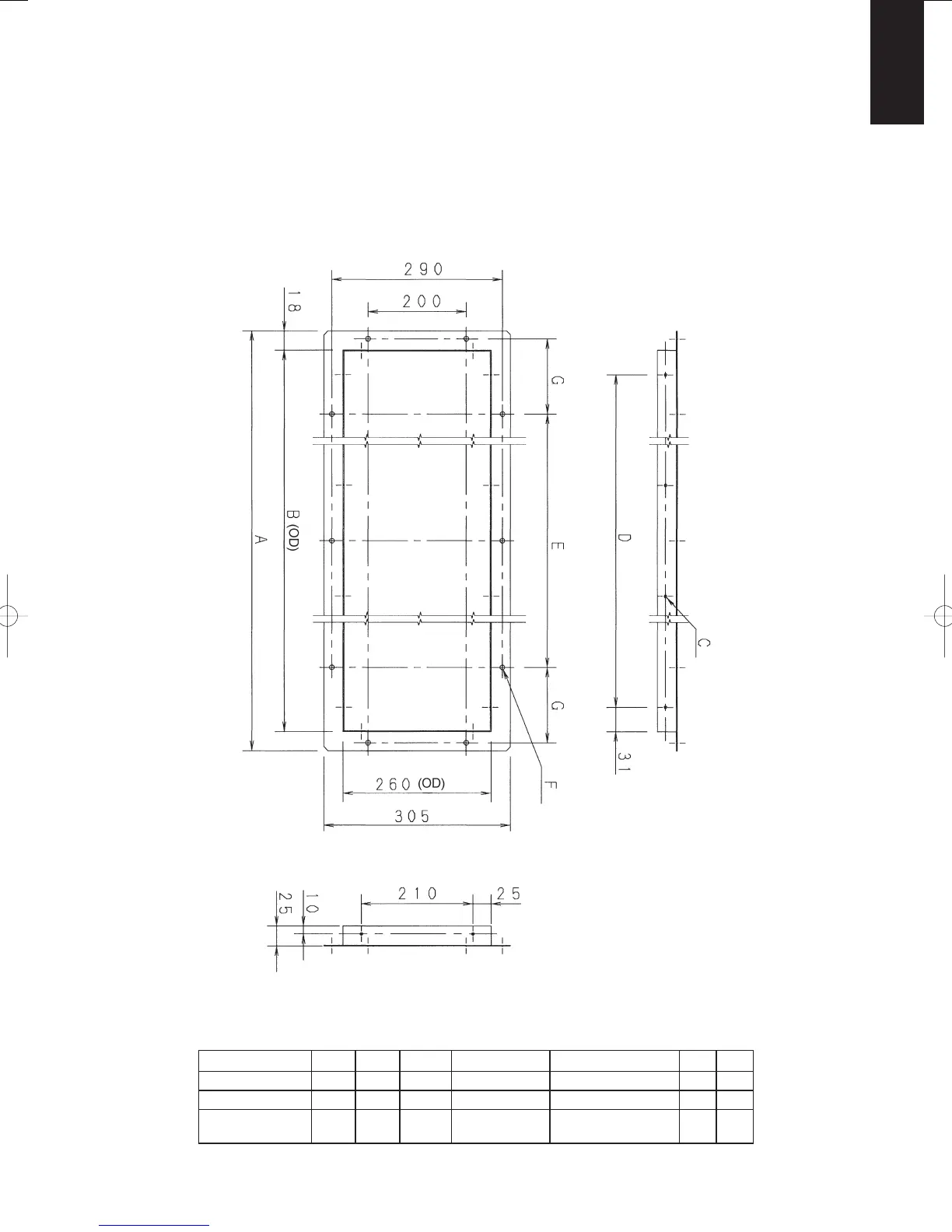

(A) Indoor Unit: Flange for Air Intake Duct (Field Supply)
For Concealed-Duct Type
Thickness more than T1.2 mm
(mm)
AB C D E* FG
7, 9, 12, 16, 18 types 698 662 12-ø3.3 3 × 200P = 60 1 × 340P = 340 8-ø6 170
25 type 998 962 16-ø3.3 3 × 180P = 900 (245)+(250)+(245)=740 12-ø6 120
36, 48 types 1,478 1,442 18-ø3.3 6 × 230P = 1,380
(245)+(245)+(240)
+(245)+(245)=1,220
16-ø6 120
* Note: Each pitch (digit in the parenthesis) is displayed from the left.
Unit : mm
