5-12
5
HIC +U V W
HIC
HIC + U V W
HIC
HIC +
U V W
HIC
HIC +
U V W
HIC

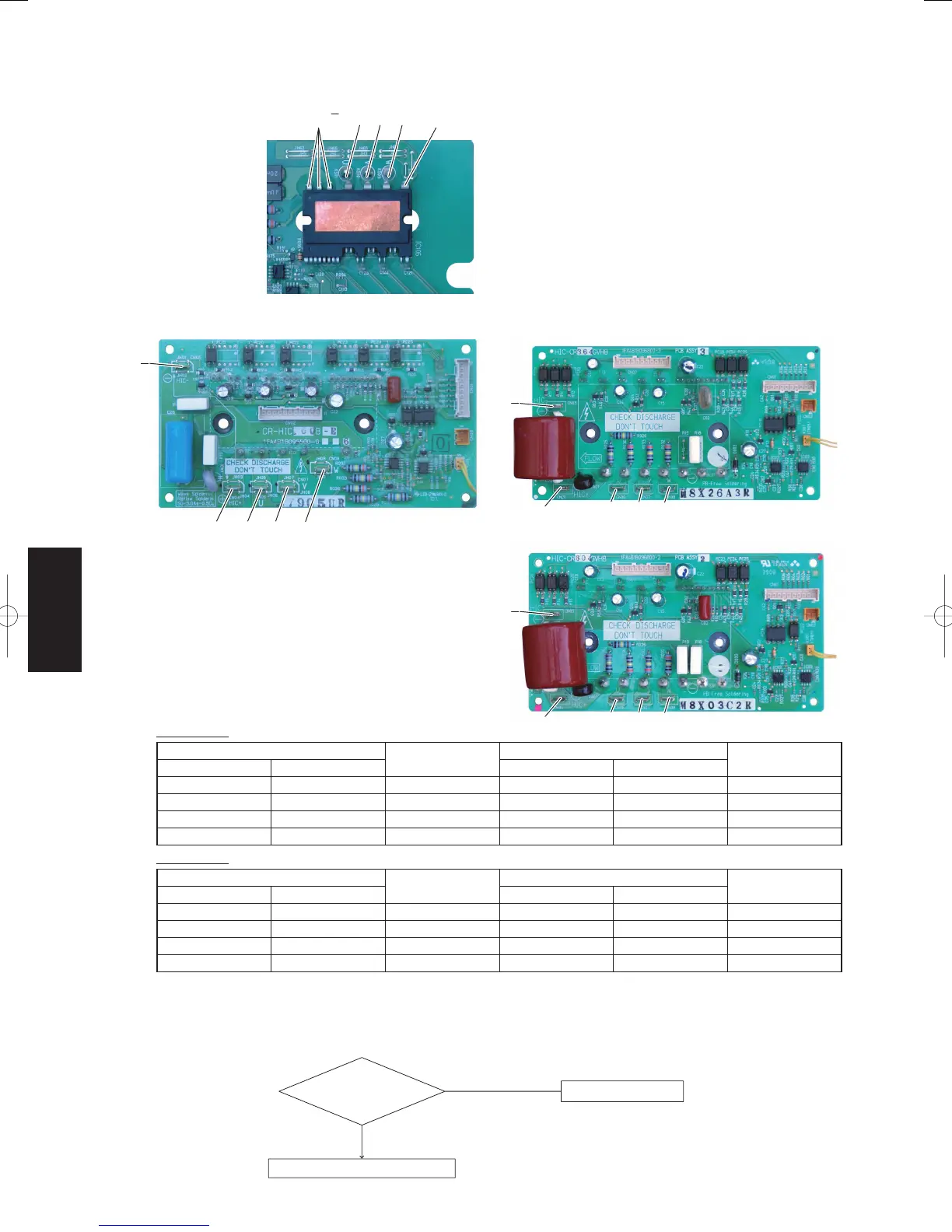

Resistance (Common use in PAC-i series)
Between terminals
Resistance
Between terminals
Resistance
Tester terminal (+) Tester terminal (-) Tester terminal (+) Tester terminal (-)
HIC + HIC – 5 kΩ ~ 10 kΩ HIC – HIC + 100 kΩ ~ ∞ Ω
HIC + U 1 kΩ ~ 5 kΩ HIC – U 100 kΩ ~ ∞ Ω
HIC + V 1 kΩ ~ 5 kΩ HIC – V 100 kΩ ~ ∞ Ω
HIC + W 1 kΩ ~ 5 kΩ HIC – W 100 kΩ ~ ∞ Ω
Resistance (Common use in reversed tester measuring terminal)
Between terminals
Resistance
Between terminals
Resistance
Tester terminal (-) Tester terminal (+) Tester terminal (-) Tester terminal (+)
HIC + HIC – 100 kΩ ~ ∞ Ω HIC – HIC + 100 kΩ ~ ∞ Ω
HIC + U 100 kΩ ~ ∞ Ω HIC – U 1 kΩ ~ 5 kΩ
HIC + V 100 kΩ ~ ∞ Ω HIC – V 1 kΩ ~ 5 kΩ
HIC + W 100 kΩ ~ ∞ Ω HIC – W 1 kΩ ~ 5 kΩ
* Be sure to measure by an analog tester.
* The table shows the value measured in kΩ.
(3) [Alarm “E31”]
(communications trouble at unit)
Is “E31”
displayed even after
the power voltage
is reset?
Normal
Yes
No
Replace outdoor unit control PCB.
HIC Control Mounted on Outdoor Unit Control PCB
CR-C256VH (outdoor unit) for SPW-C256VH, CR-C366VH (outdoor unit) for SPW-C366VH
HIC PCB
CR-HIC160B-E HIC-CR364GVH8
HIC-CR604GVH8
