4-2. Outdoor Unit Control PCB

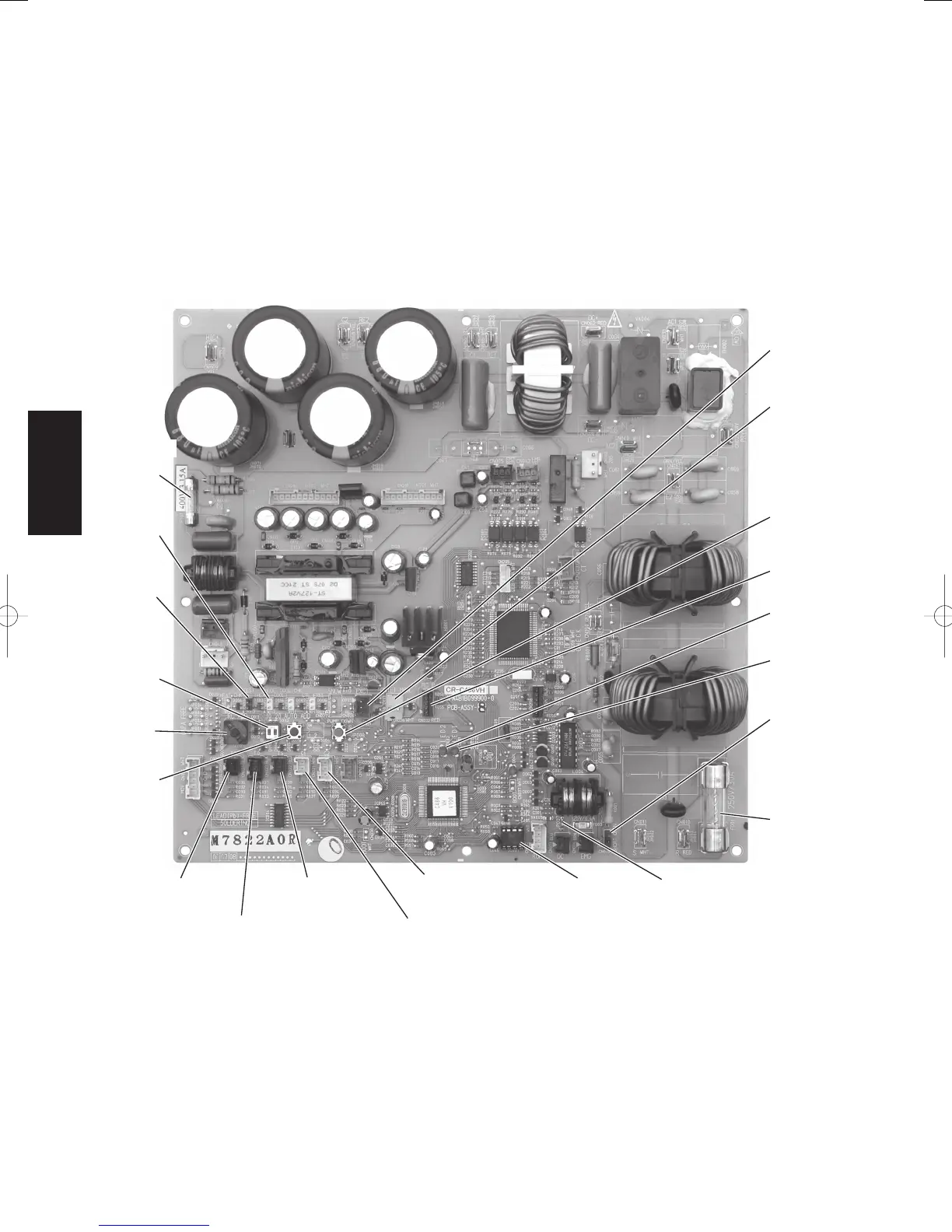

(3) Layout Diagram (CR-C486VH)
Fuse
(F101)
MODE
(CN031)
TEST
(CN036)
AUTO ADD
(S001)
RC ADD
(S003)
RC ADD
(S002)
Comp discharge temp.
(TD)
Outdoor air temp. (TO)
Suction temp. (TS)
Sensor at lower side
of heat exchanger (C1)
Sensor at upper side
of heat exchanger (C2)
EEPROM
(IC007)
JP007
Fuse
(F001)
EXCT
(CN026)
QUIET MODE
(CN028)
PUMP DOWN
(S005)
LED2
RC-P
(CN032)
LED1
Terminal
(CN015)
EXCT
QUIET MODE
PUMP DOWN
Terminal
Fuse
EEPROM
Sensor at lower side
of heat exchanger (C1)
Suction temp.(TS)
Outdoor air temp. (TO)
Comp discharge temp.
AUTO ADD
TEST
MODE
Fuse
Sensor at upper side
of heat exchanger (C2)
