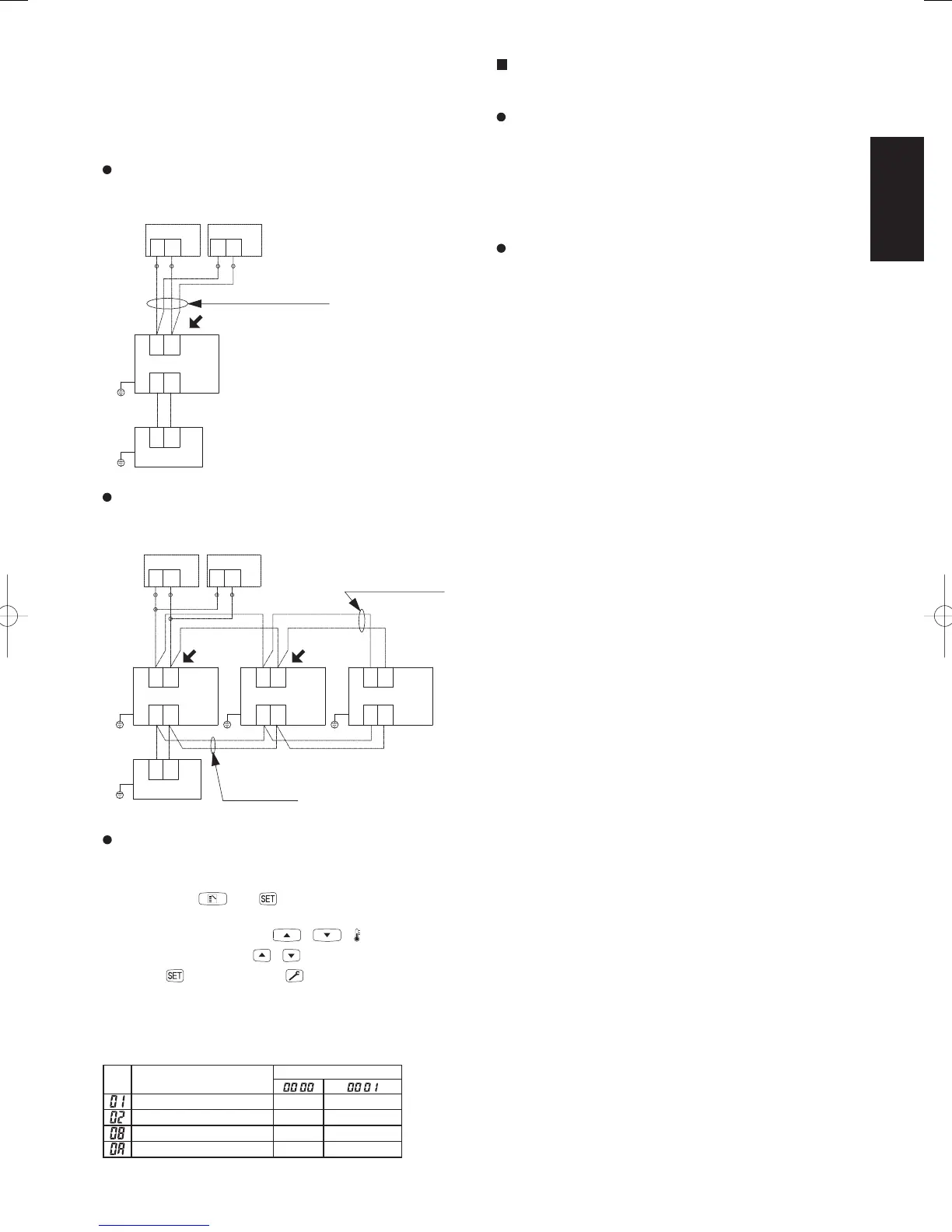

2-8-6. Main-sub remote controller control
Control using 2 remote controller switches Main-sub
remote controller control refers to the use of 2 remote
controllers to control 1 or multiple indoor units.
(A maximum of 2 remote controllers can be connected.)
Connecting 2 remote controllers to control 1
indoor unit
Connecting 2 remote controllers to control a
simultaneous-operation multi system
Remote controller
switch (main)
Remote controller
switch (sub)
Optional Optional
Remote controller wiring
Terminal plate for remote
controller wiring
Ground
Ground
Outdoor unit
Indoor unit
Ground
Ground
Outdoor unit
Indoor unit 1
Inter-unit
control wiring
Remote controller
communication wiring
Remote controller
switch (main)
Remote controller
switch (sub)
Optional Optional
Terminal plate
for remote
controller wiring
Terminal plate
for remote
controller wiring
Indoor unit 2
Ground
Ground
Remote controller setting mode
To set the remote controller main/sub setting or
change the sensor, follow the steps below.
(1) Press both
and buttons on the remote
controller for more than 4 seconds together.
(2) Select CODE No. with
/ ( ) buttons.
(3) Change DATA with
/ (TIMER) buttons.
(4) Press
. Finally, press .
* DATA is memorized in the RCU. (DATA setting
will not be changed even when the power is
turned off.)
* Make sure to set [Normal] for RCU. CK.
CODE
ITEM
ITEM
DATA
RCU. Main/Sub Sub Main
Clock display 24 hours 12 hours (AM/PM)
RCU. CK RCU. CK Normal
Room temperature sensor Main unit RCU
K Type
2-9. Caution
This unit may be used in a single-type
refrigerant system where 1 outdoor unit is
connected to 1 indoor unit, and also in a system
where 1 outdoor unit is connected to multiple
indoor units (maximum 4).
* If multiple indoor units are used, also refer to
“2-16. System Control”.
The indoor and outdoor unit control PCB utilizes
a semiconductor memory element (EEPROM).
The settings required for operation were made
at the time of shipment.
Only the correct combinations of indoor and
outdoor units can be used.
Indoor unit 3
