13 Mounting , electrical installation and service 22.05.2018
Installation of all components in the burner; CAN bus cable LMV52 ♠ last
actuator <20 m with 4 actuators and PLL52
RAST3,5
transformer
X52
Power
transformer 1
AGG5.2xx
AC1 12 V
LMV52... basic unit
F1 T6.3
F3 T4
Max. bus cable length
LMV5...-AZL51...: 60 m
AGG5.631
Sub-D
connector
AZL5...
A
C
1
1
2
V
A
C
2
1
2
V
C
A
N
L
C
A
N
H
Power line
max. 3 m
AC2 12 V
X3-04
Max. bus cable length
LMV5x...-SQM4x...: 20 m
AGG5.641
SA 2
SQM9...
SA 1
SQM45...
A
C
1
1
2
V
A
C
2
1
2
V
C
A
N
L
C
A
N
H
F2 T4
Only
CANH
CANL
GND
Max. cable length
from power supply
of actuators 20 m
F T4
A
C
1
1
2
V
SA 4
SQM4...
SA 3
SQM4...
PLL52...
230 V
12 V
F T2
N
F T4
AC2 12 V
Not used
M
L
Power
transformer 2
AGG5.2xx
12 V
0 V
0 V
12 V
230 V
12 V
0 V

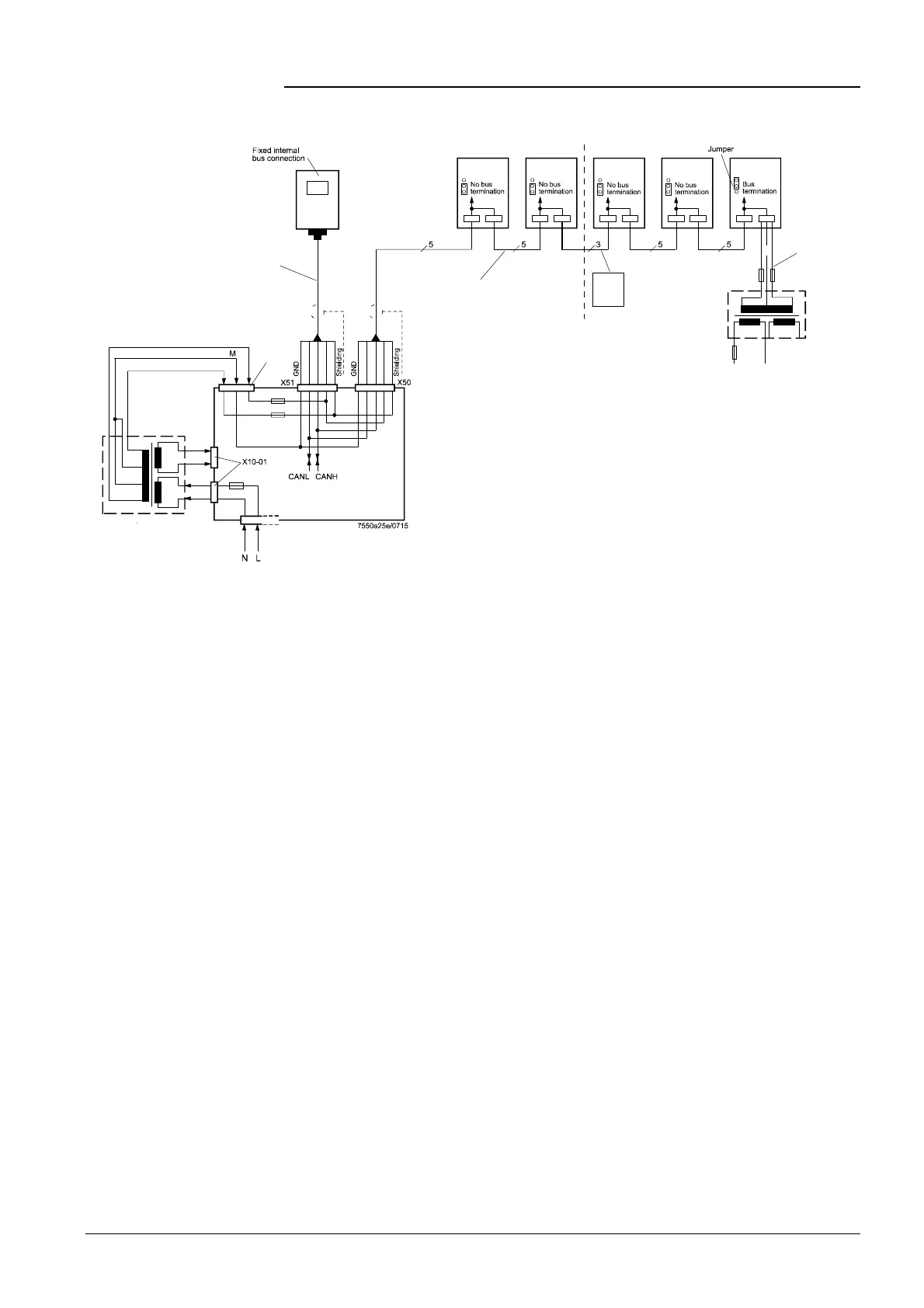

Figure 99: Installation of all components in the burner; CAN bus cable LMV52 ♠ last actuator <20 m
with 4 actuators and PLL52
13.1.2 Determination of the maximum cable length AGG5.6
The maximum cable length between transformer and CAN bus users depends on the
type of cable (cross-sectional area), the number of actuators, and the type of actuator
(current).
The following graphs can be used to determine the maximum CAN bus cable lengths
between the transformer and the group of actuators or the AZL5, depending on the
relevant influencing factors.
The assumption was made that the actuators within the group are close to one another.
The minimum cross-sectional area for the system examples shown results from the
start of the curve.
The maximum cable lengths for the defined system cables AGG5.641 and AGG5.631
result from the points of intersection in the graph.
Example 3c
