249/327

Building Technologies Basic Documentation LMV5... CC1P7550en

18 VSD module 22.05.2018

18.3 Connection terminals

Also refer to chapter Connection terminals / coding of connectors.

0 V

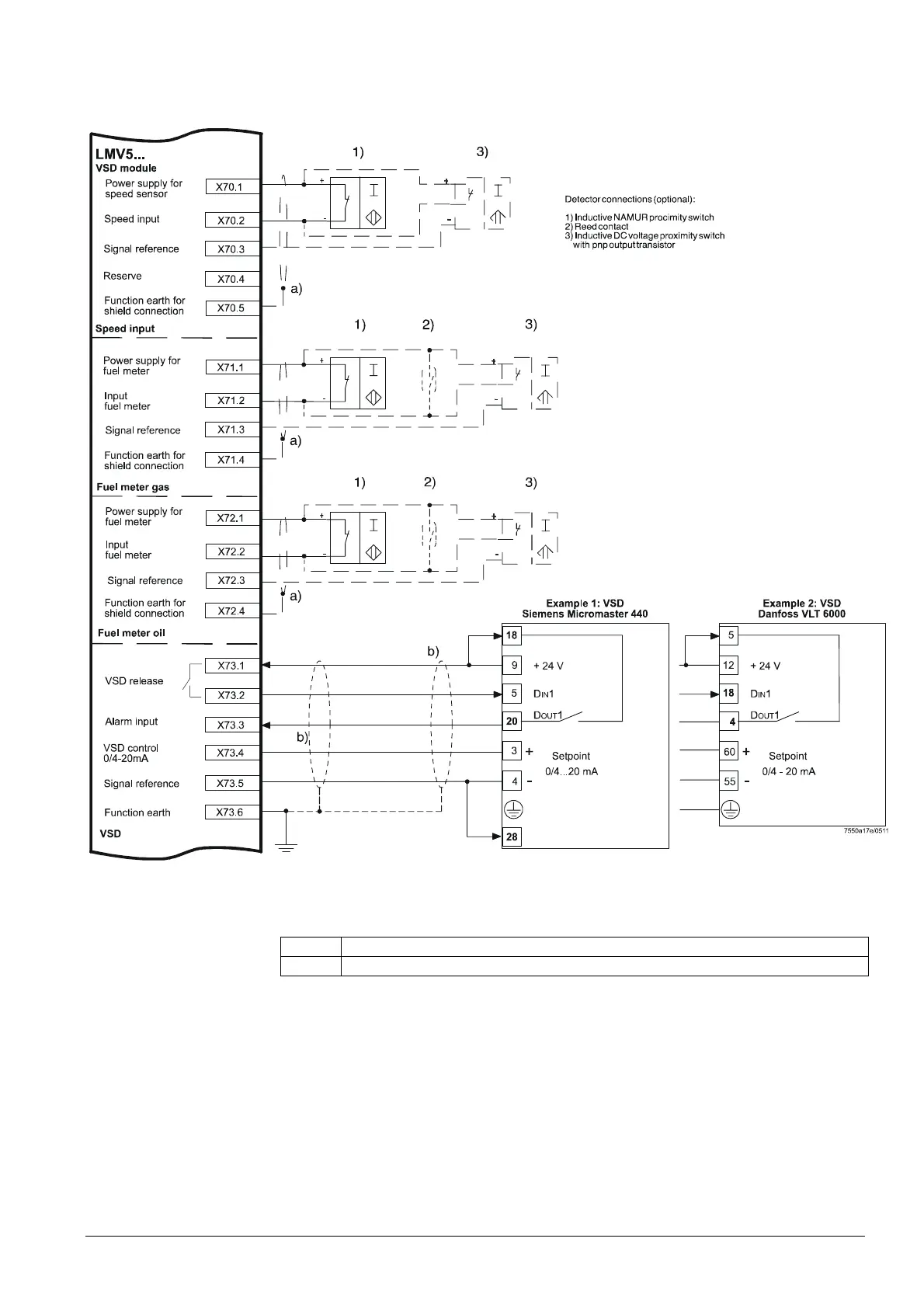

Figure 115: Connection terminals of LMV5

Shielding:

a) Optional shield connection for arduous environmental conditions

b) Alternative connection of VSD, refer to documentation of used VSD
