VPN tunnel between SCALANCE M-800 and security CPs
4.3 Secure VPN tunnel with certificates
SCALANCE M-800 Getting Started
176 Getting Started, 06/2015, C79000-G8976-C337-04
Configuring the VPN remote end
Procedure

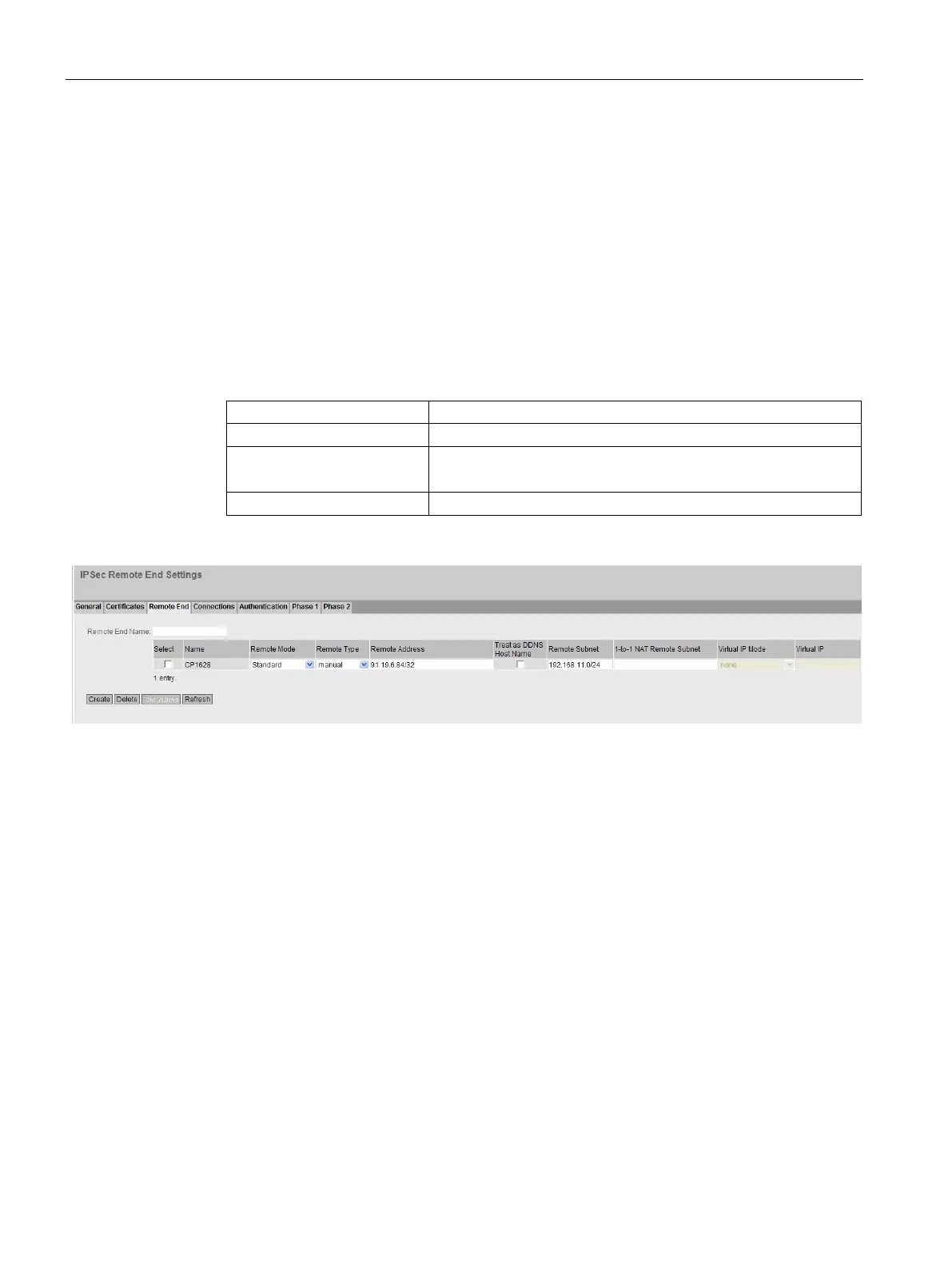

1. Click on "Security" > "IPSecVPN" in the navigation area and on the "Remote End" tab in
the content area.
2. Enter the name of the VPN partner (tunnel endpoint) in "Remote End Name", e.g.
CP1628.
3. Click "Create". A new row is created in the table.
4. For the configuration example, configure the VPN remote end with the following settings:
Remote Address 91.19.6.84/32
WAN IP address of the DSL router
5. Click "Set Values".
Configuring a VPN connection
Requirement
● The VPN remote end has been created.
1. Click on "Security" > "IPSec VPN" in the navigation area and on the "Connection" tab in
the content area.
2. In "Connection Name" enter a name for the VPN connection.
3. Click "Create". A new row is created in the table.
