VPN tunnel between SCALANCE M-800 and security CPs
4.3 Secure VPN tunnel with certificates
SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
177

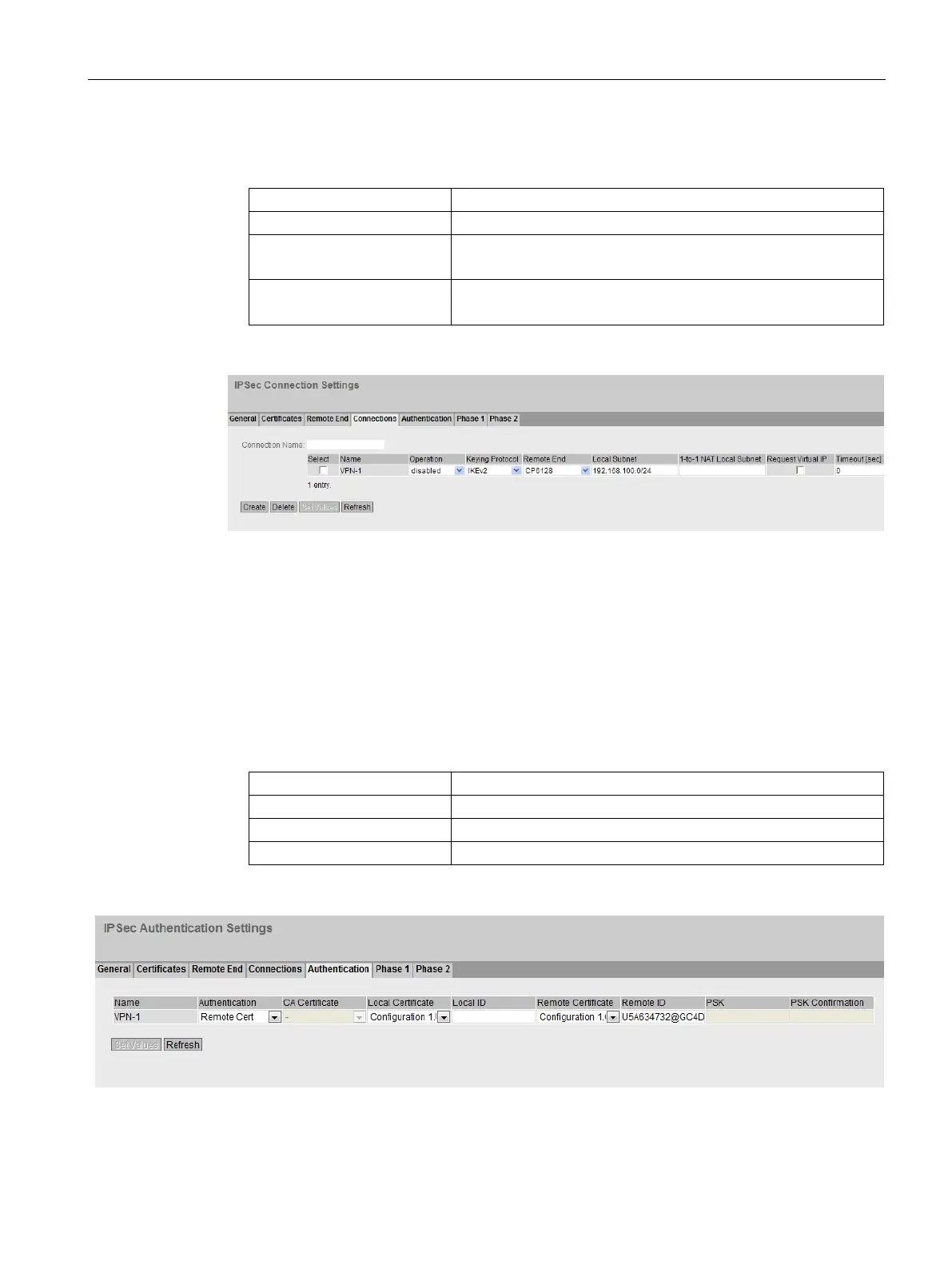

4. For the configuration example, configure the VPN connection with the following settings:
Operation
disabled
Keying Protocol
IKEv1
Remote End CP1628
Name of the VPN remote station
Local Subnet 192.168.100.0/24
The local internal subnet 1 in CIDR notation.
5. Click "Set Values".
4.3.3.5
Configuring VPN authentication
Procedure
1. Click on "Security" > "IPSec VPN" in the navigation area and on the "Authentication" tab
in the content area.
2. For the configuration example, configure the VPN authentication with the following
settings:
Authentication
Remote Cert
Local Certificate
projectname.string.M-800.p12
Remote Certificate
Projectname.group1.CP.cer
Remote ID
Remote ID from the configuration file
3. Click "Set Values".
