1.3 Connecting M826 with SHDSL
SCALANCE M-800 Getting Started
46 Getting Started, 06/2015, C79000-G8976-C337-04
1.3
Connecting M826 with SHDSL
1.3.1
Out-of-the-box
1.3.1.1
Procedure in principle
In this example three SCALANCE M826 devices that have the factory settings status are
connected together directly.
As default, the SHDSL interfaces can establish a point-to-point connection with each other.
For this connection, one SHDSL interface must be the CO and the other SHDSL interface
the CPE.
When shipped, the SCALANCE M826 is in bridge mode. The difference between bridge and
routing mode lies in the division into external and internal networks. In bridge mode there is
no division. The SCALANCE M826 is a transparent bridge and connects network nodes that
are in the same IP subnet. In this mode, the security features (IPsec VPN, firewall,
NAT/NAPT) are not available.
Setup

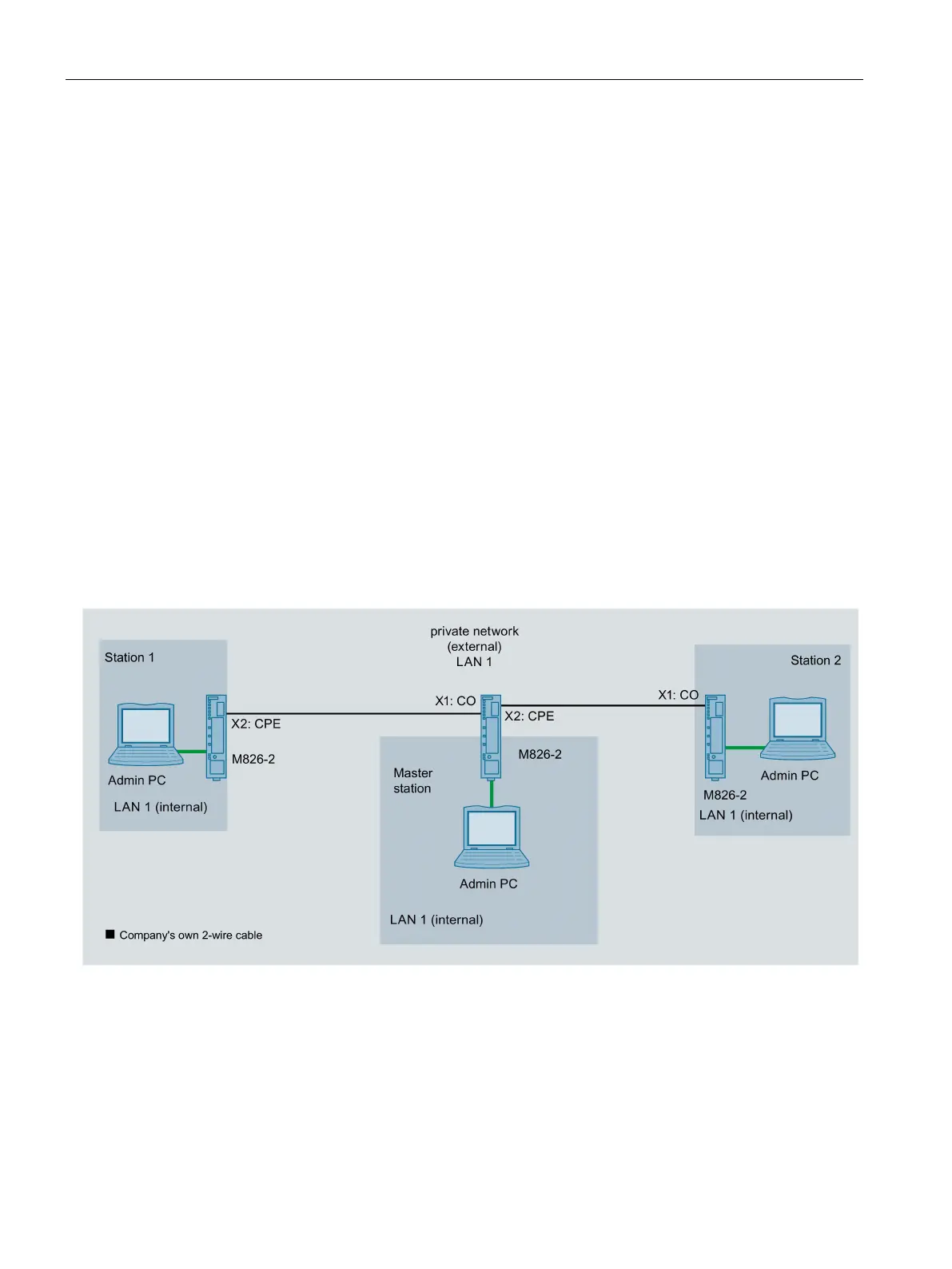

The network nodes are in the same IP subnet (LAN1)
