Technical specifications
8.5 Hardware description
SIMATIC IPC547G
160 Operating Instructions, 04/2020, A5E49948632-AA
8.5 Hardware description
8.5.1 Motherboard
A detailed description of the motherboard and the ports is available in the manual for the
motherboard on the supplied "Documentation and Drivers" DVD.

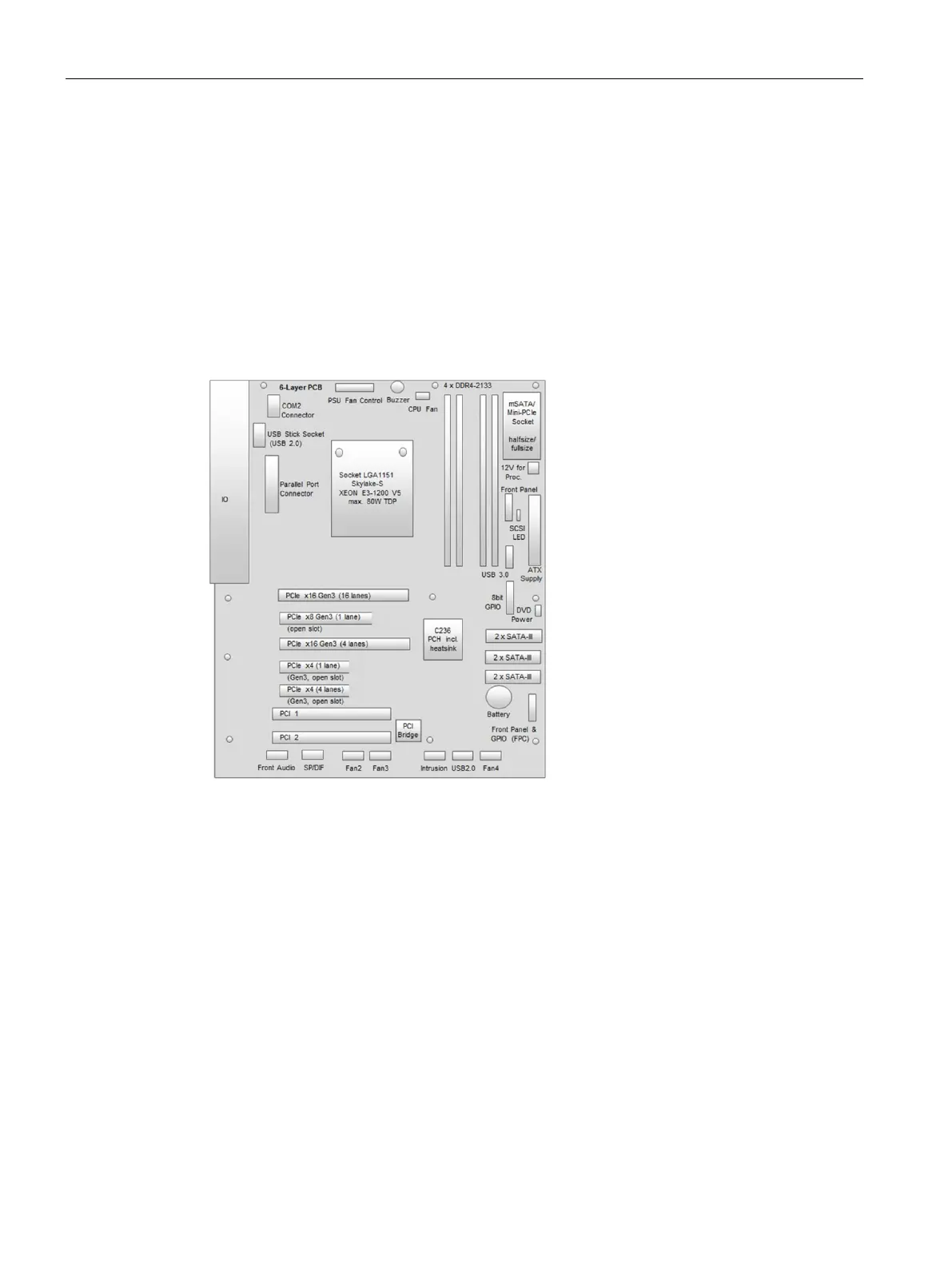

Layout of the motherboard D3446-S
