Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
92 Operating Instructions, 04/2020, A5E49948632-AA

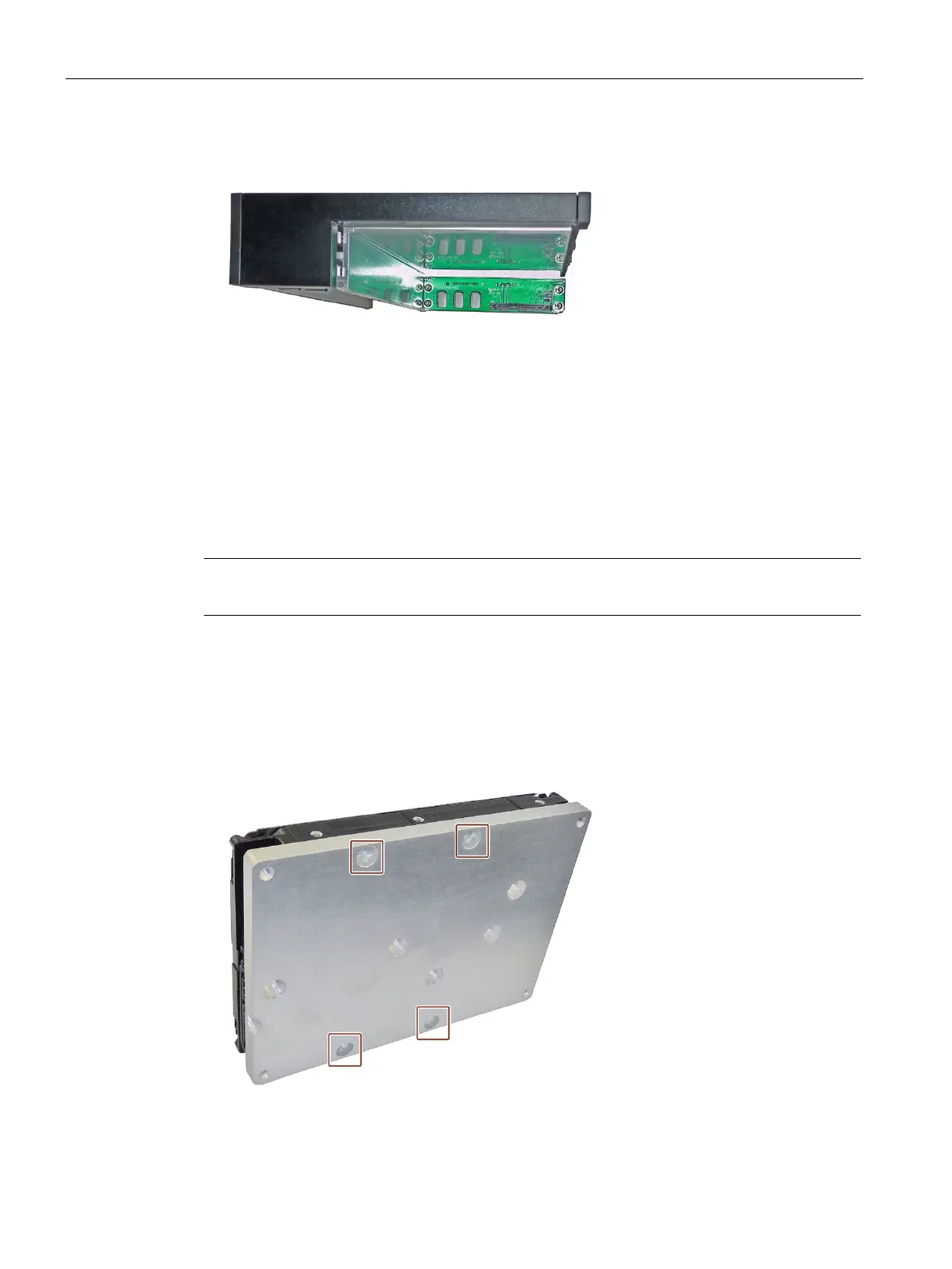

2. Push the 5.25" adapter for the removable rack unit shown below from the front into the
drive cage.
3. Connect the SATA cables to the required SATA connectors of the motherboard and to the
adapter module of the new 5.25" adapter.
4. Connect the power supply.
5. Install the removable tray with installed drive and lock it; see section "Removing and
installing the hard disk or SSD in the removable tray (Page 83)".
6. Close the device.
6.6.6.3 Install / replace internal hard disk/SSD on the side panel (standard enclosure only)
Note
By installing the drives on the side wall, expansion slot 7 can no longer be used.
Procedure
Installing a drive
1. Screw the drive to the drive bay plate (available as option, not included in product
package) at the marked holes.
