PLC Subroutines Manual
Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
11
PLC Programming Tool
2
2.1 Installing the 808D Toolbox
You must install the 808D Toolbox on your PC/PG. The 808D Toolbox contains the following
software tools or information:
● Config Data 808D
– System software update
– Examples (EasyXLanguage, symbols for MCP customized keys, template for MCP
strips, PLC subroutine library)
● PLC Programming Tool
The tool for creating PLC user programs
● Windows setup software for toolbox
● User documentation
● License information and conditions about Open Source Software (Readme_OSS)
● SinuComPCIN
Installing the 808D toolbox

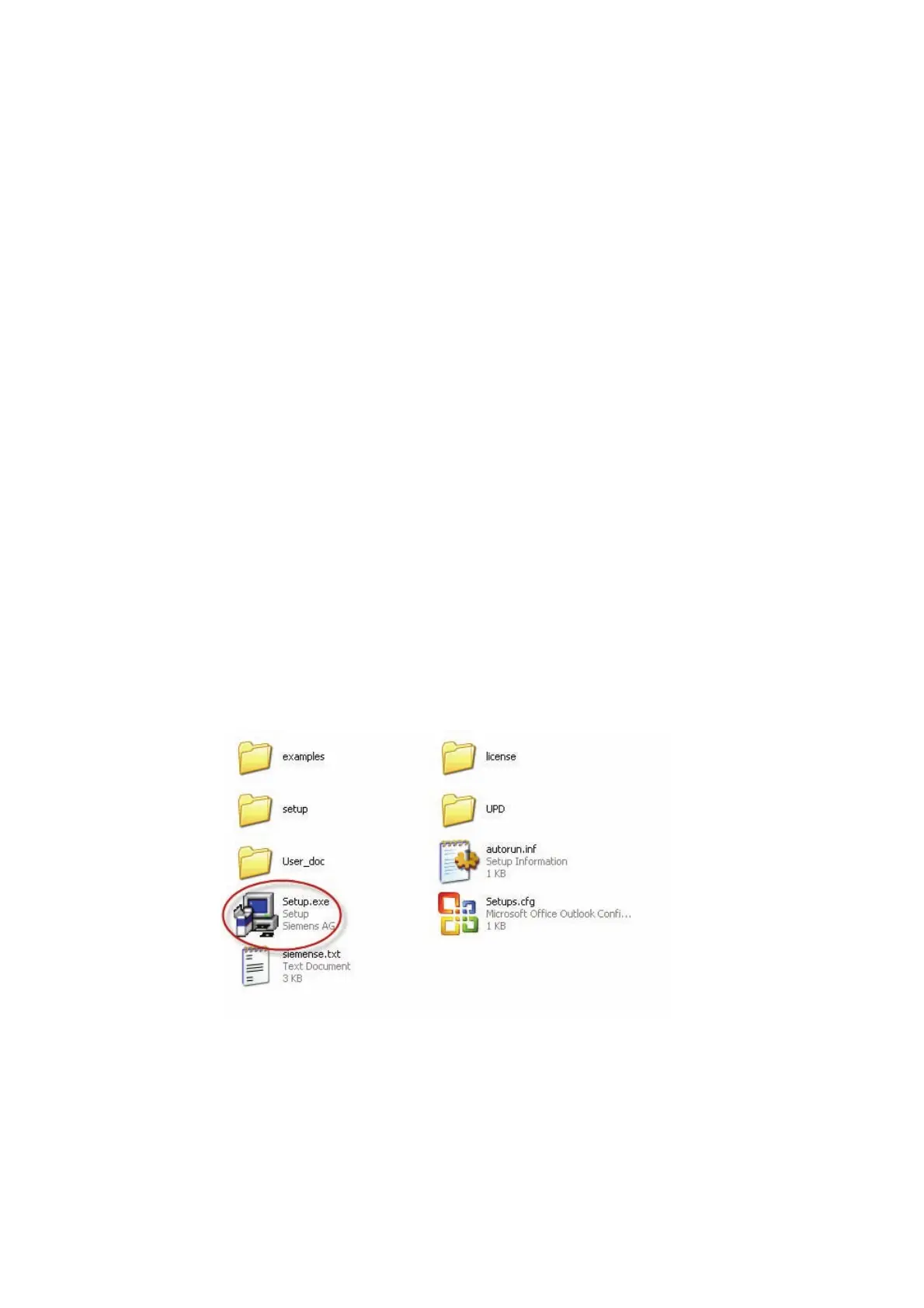

The toolbox installation folder is shown below:
To start the installation, double-click the Setup.exe file. In the setup dialog, select one or
multiple options that you desire to install.
